Product Description
Product Description

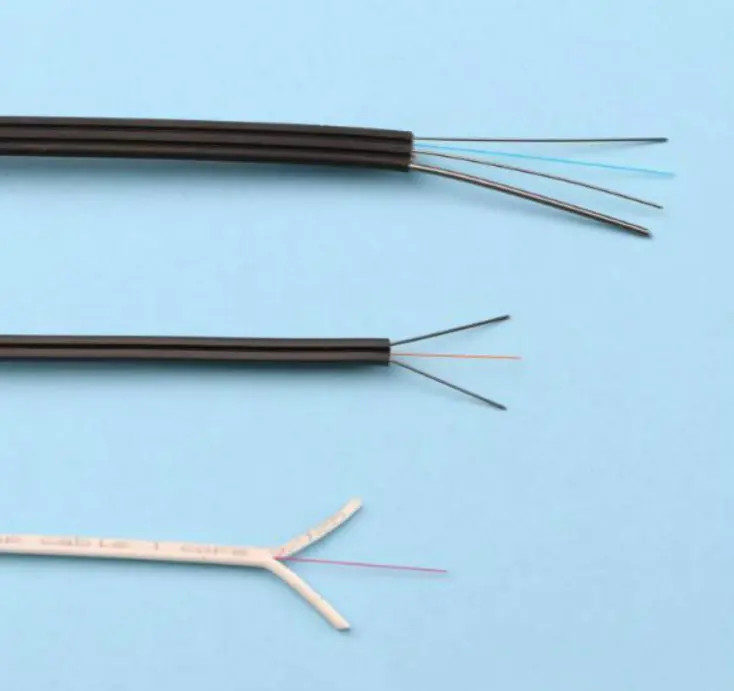

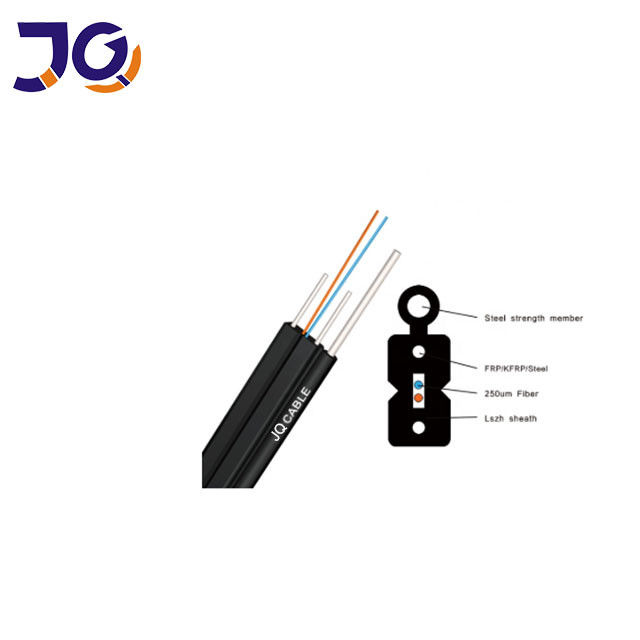

Outdoor FTTH Self-supporting drop cable(GJYXCH/GJYXFCH)
FRP/KFRP or steel wire strength element
Low smoke zero halogen resistance
(LSZH) ,PE,PVC outer sheath

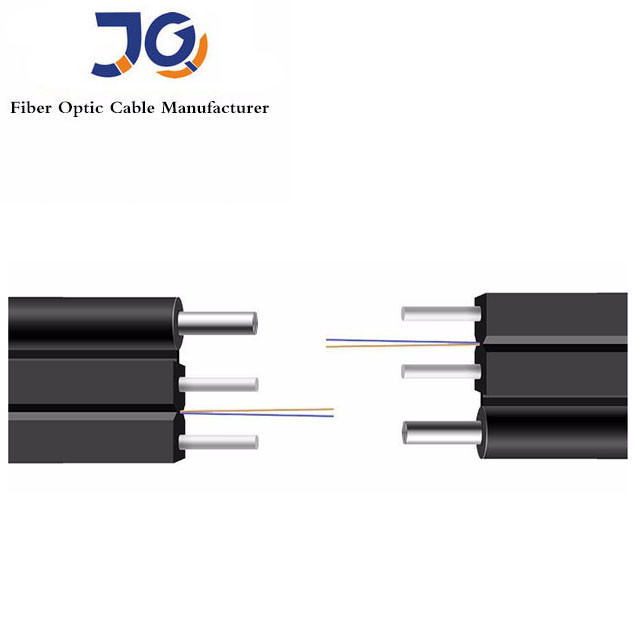

Self-support drop cable
G657 FTTH fiber optical cable
Features

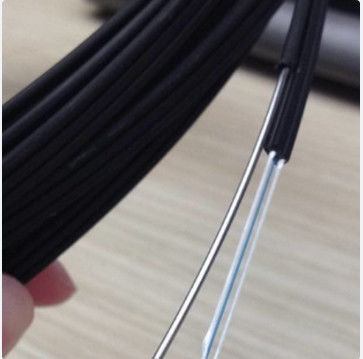

1, High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, (2.0±0.2)x(5.0±0.2)mm
6, Compliant with Telcordia GR-326-CORE specification
Product detail
Fiber Parameters
|
No. of cable
|
6-12
|
|
Fiber Model
|
G.657A1
|
|
Steel wire
|
Diameter(±0.03)mm
|
0.4
|
|
NO.
|
2
|
|
Reinforced Steel wire
|
Diameter(±0.03)mm
|
1.0
|
|
Loose tube
|
Material
|
PBT
|
|
Color
|
Natural
|
|
Diameter(±0.06)mm
|
2.0
|
|
Thickness(±0.03)mm
|
0.35
|
|
The Max.Core NO./Tube
|
12
|
|
Outer Sheath
|
Material
|
LSZH
|
|
Color
|
Black
|
|
Cable size(±0.2)mm
|
4.0×8.0
|
|
Cable Weight(±5)kg/km
|
40
|
|
Allowable Tensile Strength
|
Short Term
|
N
|
600
|
|
Long Term
|
300
|
|
Allowable Crush Resistance
|
Short Term
|
N/100mm
|
2200
|
|
Long Term
|
1000
|
|
Min. bending radius
|
Without Tension
|
15×Cable-φ
|
|
Under Maximum Tension
|
30×Cable-φ
|
|
Temperature range
(℃)
|
Installation
|
-20~+60
|
|
Transport&Storage
|
-40~+70
|
|
Operation
|
-40~+70
|
Technical parameters
Product
Model |
Fiber
Count
(core) |
Cable Diameter(mm) |
Cable Weight
(kg/km) |
Tensile
Strength
Long/Short
Term(N) |
Crush
Resistance
Long/ShortTerm(N)
|
Bending
Radius
Static/Dynamic |
| GJXH |
1 |
(2.1+0.1)*(3.1+0.1) |
10 |
1000/2200 |
200/1000 |
15/30 |
| GJXH |
2 |
(2.1+0.1)x(3.1+0.1) |
10 |
1000/2200 |
200/1000 |
15/30 |
| GJXH |
4 |
(2.3+0.1)*(3.3+0.1) |
12 |
1000/2200 |
200/1000 |
|15/30 |
| GJXFH |
1 |
(2.1+0.1)x<(3.1+0.1) |
9 |
800/1800 |
200/1000 |
15/30 |
| GJXFH |
2 |
(2.1+0.1)x(3.1+0.1) |
9 |
800/1800 |
200/1000 |
15/30 |
| GJXFH |
4 |
(2.1+0.1)x(3.1+0.1) |
11 |
800/1800 |
200/1000 |
15/30 |
| GJYXCH |
1 |
(2.1+0.1)*(5.1+0.1) |
21 |
1500/2500 |
500/1300 |
15/30 |
| GJYXCH |
2 |
(2.1+0.1)*(5.1+0.1) |
21 |
1500/2500 |
500/1300 |
|15/30 |
| GJYXCH |
4 |
(2.1+0.1)x(5.1+0.1) |
21 |
1500/2500 |
500/1300 |
15/30 |
| GJYXFCH |
1 |
(2.1+0.1)*(5.1+0.1) |
20 |
1500/2500 |
500/1300 |
15/30 |
| GJYXFCH |
2 |
(2.1+0.1)x(5.1+0.1) |
20 |
1500/2500 |
500/1300 |
15/30 |
| GJYXFCH |
4 |
(2.1+0.1)x(5.1+0.1) |
20 |
1500/2500 |
500/1300 |
15/30 |

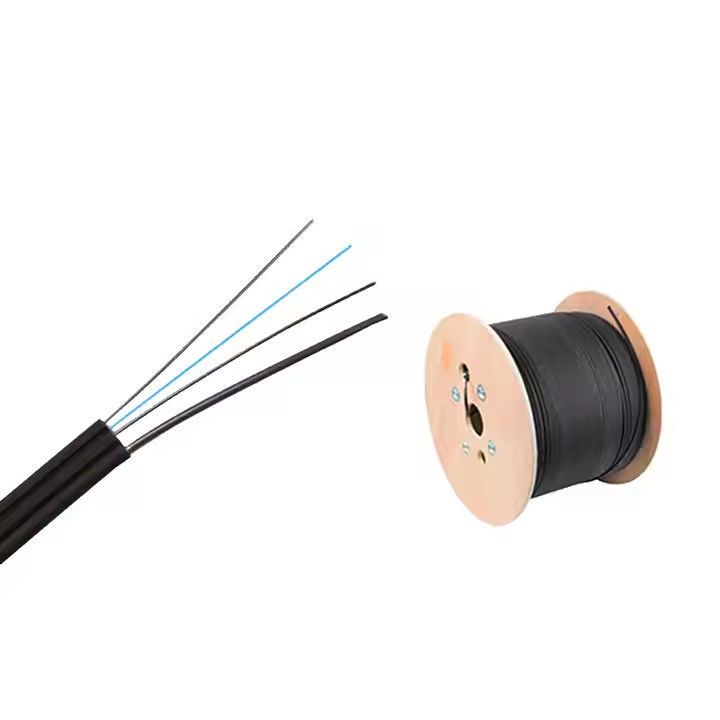

Package
Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box
FAQ
1.Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
Welcome to visit our factory!
