GYTS Fiber Optic Cable Steel Armored PE Sheath Directly Buried Best Price

Contact Now

GYTS Fiber Optic Cable Steel Armored PE Sheath Directly Buried Best Price

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou,China	Brand Name:	JQ/OEM
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GYTS-48B1

Detail Information
Fiber Type:	YOFC,Fiberhome,as Request	Color:	Black
Jacket:	PE,MDPE, HDPE	Strength Member:	FRP
Fiber Count:	2-288 Cores	Installation:	Aerial & Duct
Armored:	Steel & Aluminium Tape	Product Name:	Single Mode Armoured GYTS 48 Core Fiber Optical Cable
Application:	Underground Installation For Long Distance Communication	Central Strength Member:	Metallic Tape
Length:	2km Or Customized Length	Factory:	Yes
Sheath Material:	HDPE	Cable Weight:	150kg/km
Fiber Count:	24	Drum Length:	3km Or As Required
Number Of Conductors:	48 96 72	Structure:	Stranded Loose Tube
Package:	2km/3km/5km Per Roll	Suitable Temperature:	- 40℃~ +60℃
Armor:	Steel Tape	Model Numer:	GYTS53
Highlight:	Directly Buried Fiber Optic Cable , Steel Armored Fiber Optic Cable , PE Sheath Fiber Optic Cable

Product Description

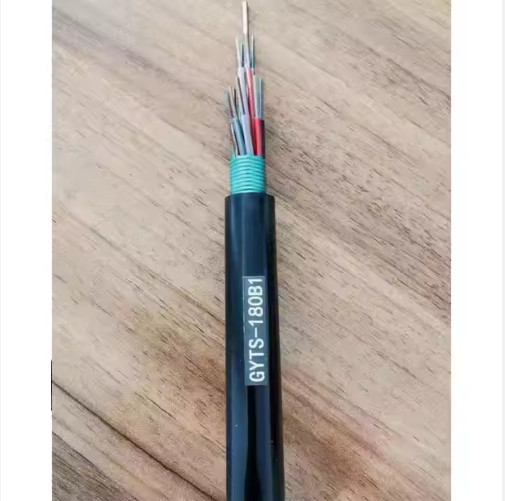

GYTS-48B1.3 Single Mode Armoured GYTS 48 Core Fiber Optical Cable For Underground

Product Description

The GYTS aerial fiber optic cable features single-mode or multimode fibers housed within high-modulus plastic loose tubes, with each 250μm fiber individually protected. These tubes contain a waterproof gel filler for enhanced moisture resistance. The cable adopts a stranded loose tube design with a dense construction, utilizing a polyethylene outer sheath. Its hydrolysis-resistant loose tubes and specialized filling materials guarantee exceptional durability.

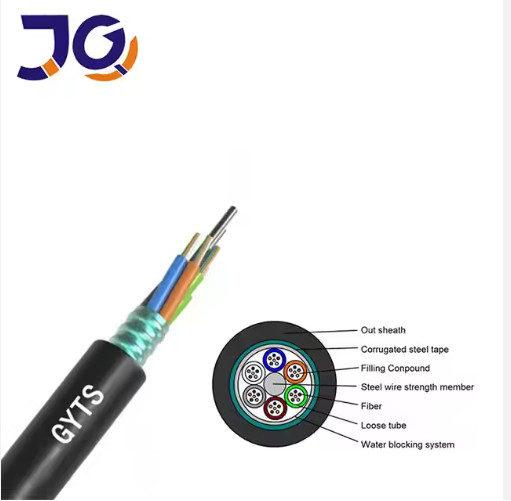

The cable core is formed by helically wrapping the tubes and fillers around a central strength member, creating a circular configuration. A protective PSP layer is then applied over the core, which is further sealed with filling compound. The final assembly includes a PE outer coating combined with steel tape reinforcement, providing outstanding crush resistance and moisture barrier properties. This design gives GYTS cables superior waterproof characteristics.

Features

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. Crush resistance and flexibility

6: PE sheath protects cable from ultraviolet radiation
7. The following measures are taken to ensure the cable watertight:
8. Steel wire used as the central strength member
9. Loose tube filling compound

10. 100% cable core filling
11. PSP enhancing moisture-proof

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	9.0±0.3	80
6	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
8	1+5	8	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
12	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
24	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	85
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	100
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	105
60	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	110
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6±0.3	122
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12.0±0.3	160
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.6±0.3	240
216	1+6+12	12	2.2±0.1	2.2/2.2	1.8	16.0±0.3	270
288	1+9+15	12	2.2±0.1	2.2/4.3	2.0	18.2±0.3	282

Application

Suitable for external application in duct and aerial

Packaing detail:

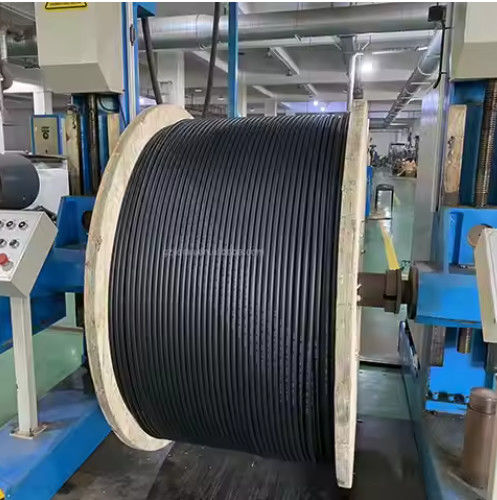

1km/ 2km/3km/4km per wooden drum

Shipping:

By sea/by air or express delivery,it depends on the order quantity

Lead time:

Quantity(km)	1-300	Above 300
Earliest time(day)	5-7	Negotiable
