ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation
ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation
ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation
Contact Now

ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: ADSS-24B1

Detail Information
Fiber Type: YOFC Or Fiberhome As Request Fiber Count: 4 -144 Core
Color: Customized Length: 2km Or Customized Length
Jacket Material: PE Or HDPE Name: ADSS Optical Fiber Cable
Strength Member: FRP Glass Yarn Central Strength Member Operating Temperature: -40 ~ +60 C
Span: 50/100/200/300/400m Installation: Self- Supporting Aerial
Number Of Conductors: 4-98 Model No: ADSS 72core
Amoured: No Inner Sheath Material: PE/AT
Laying Method: Overhead Sheath Material: HDPE MDPE(Double Jacket)
Fiber No: 4 - 288 Fibers Fiber Number: 8 Core G.652D
Mode: Single Mode Life Time: More Than 20 Years
Sample Status: In Stock Strength Number: FRP, Kevlar Aramid Yarn
Cores: 6-144 Csm: FRP
Highlight:

All Dielectric ADSS Fiber Optic Cable

,

Non Metal ADSS Fiber Optic Cable

,

Aerial Installation ADSS Fiber Optic Cable

Product Description

Communication Cable 24 Core AT/PE ADSS Fiber Optic Cable

All Dielectric Self supporting 24 Core ADSS Fiber Optic Cable With 100m Span



Product Description

‌ADSS Cable Construction:‌

  1. ‌Fiber Core Assembly‌

    • 250μm fibers housed in high-modulus plastic loose tubes
    • Tubes filled with waterproof gel compound

  2. ‌Central Reinforcement‌

    • FRP (Fiber Reinforced Plastic) core serving as non-metallic strength member
    • Stranded tube configuration forming compact circular core

  3. ‌Protective Layers‌

    • Inner sheath: Thin polyethylene (PE) coating
    • Strength layer: Aramid yarn reinforcement
    • Outer sheath: PE or anti-tracking (AT) material





ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation 0

ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation 1



Features

Cable Features Description:‌

‌Mechanical Performance‌
Crush-resistant design with flexible structure
Single FRP central strength member
‌Waterproof Protection‌

Dual-layer sealing:
• 100% core filling
• Hydrophobic loose tube compound
‌Material Advantages‌

Hydrolysis-resistant high-strength tubes
Temperature-stable mechanical properties
‌Fiber Protection‌

Specialized filling compound for optical fiber shielding



Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Technical Data



Span : 100m



under 110kv



24core



structural

parameter



Central strength components : FRP



Diameter : 1.5mm



Loose tube (jelly filled )



Outer diameter :1.8mm



Inner sheath PE



Thickness : 0.9mm



outer sheath PE



Thickness :1.8mm



Technical

parameter



outer diameter of Cable

10.0mm



cable cross-sectional area



95.03 mm2



Fiber model



G.652D



Weight of cable



85kg/km



Rated tensile strength (RTS)



10 kn



Minmum allowed tension(MAT)



4kn



EDS



3.2kn



Young's modulus



7.8 kn/mm2



Coefficient of thermal expansion



1.810-6/°C



Cruss resistance



Long term :1100 n/100mm



short term:2200 n/100mm



Permission bent radius



Long term (when running) 220 mm



Short term (when laying) 360 mm



4-144 core ADSS Fiber Optic Cable

Fiber

count

 Structure

Fibers

per tube

Loose tube

diameter

(mm)

CSM diameter

/pad diameter(mm)

Nominal Thickness

of outer jacket(mm)

Cable diameter

(mm)

Cable

Weight

(kg/km)
4 1+6 4 2.0±0.1 2.3/2.3 1.7 10.5±0.5 81
6 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 81
8 1+6 4 2.0±0.1 2.3/2.3 1.7 10.5±0.5 82
12 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 82
24 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 83
36 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 84
48 1+6 12 2.2±0.1 2.6/2.6 1.7 11.1±0.5 93
72 1+6 12 2.2±0.1 2.6/2.6 1.7 11.1±0.5 95
96 1+8 12 2.2±0.1 3.0/3.9 1.7 12.5±0.5 122
144 1+12 12 2.2±0.1 3.5/6.4 1.7 15.5±0.5 185

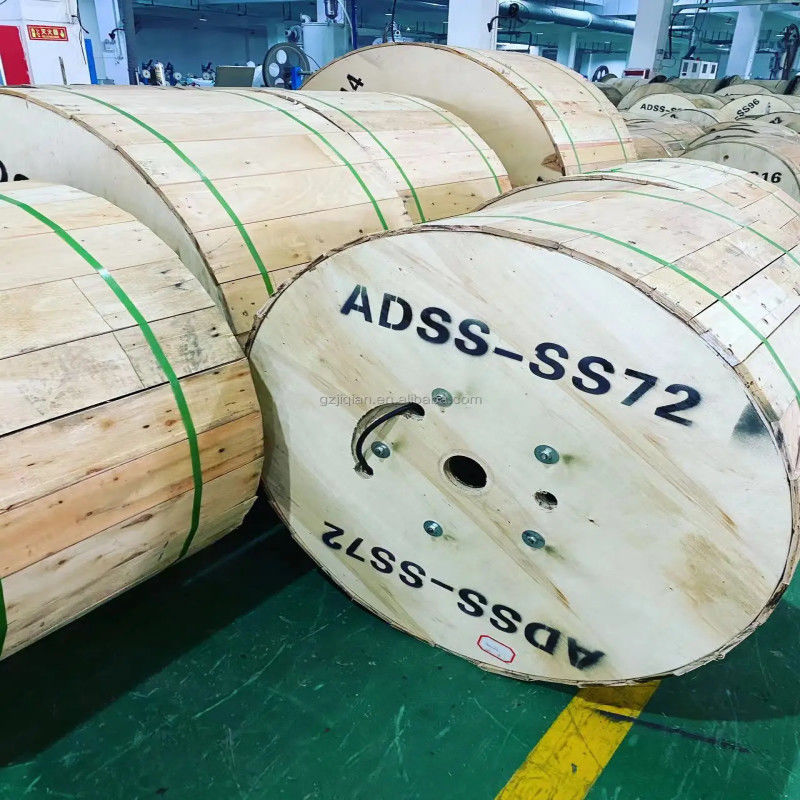

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.
Other length is also available if required by buyer.

Cable type                                             Drum
Height (mm) Width (mm) Inner diameter (mm)

Length

(km)

 Drum type
ADSS-4 900 760 500 2 Plywood wood drum
ADSS-6 900 760 500 2 Plywood wood drum
ADSS-8 900 760 500 2 Plywood wood drum
ADSS-12 900 760 500 2 Plywood wood drum
ADSS-24 900 760 500 2 Plywood wood drum
ADSS-36 900 760 500 2 Plywood wood drum
ADSS-48 950 760 500 2 Plywood wood drum
ADSS-72 950 760 500 2 Plywood wood drum
ADSS-96 1000 760 500 2 Plywood wood drum
ADSS-144 1200 760 500 2 Plywood wood drum

Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

ADSS Fiber Optic Cable All Dielectric Self Supporting Non Metal aerial Installation 2





FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
