FTTH optical fiber cables G652D G657A fibre 1 2 core single mode GJYXCH drop fiber optic cable
Products Description

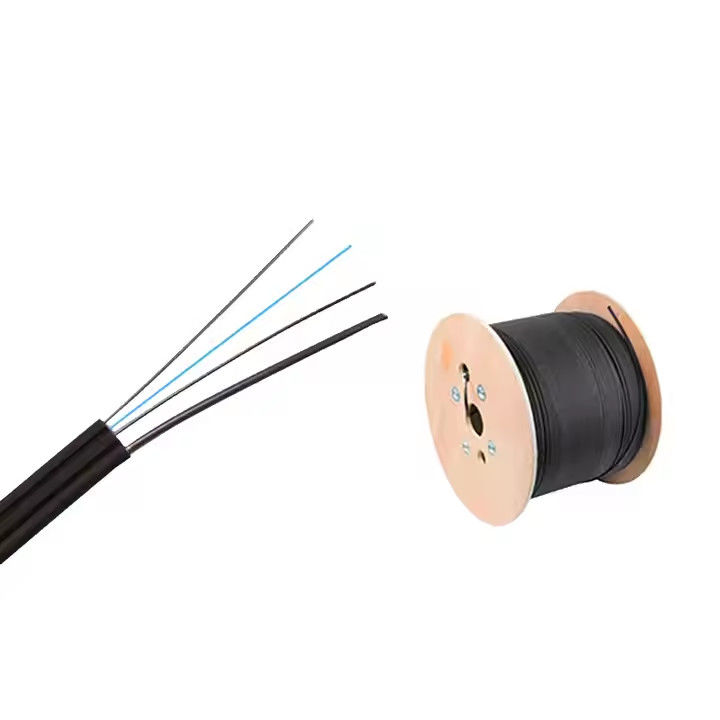

Self-support indoor/outdoor drop cable FTTH fiber optic cable

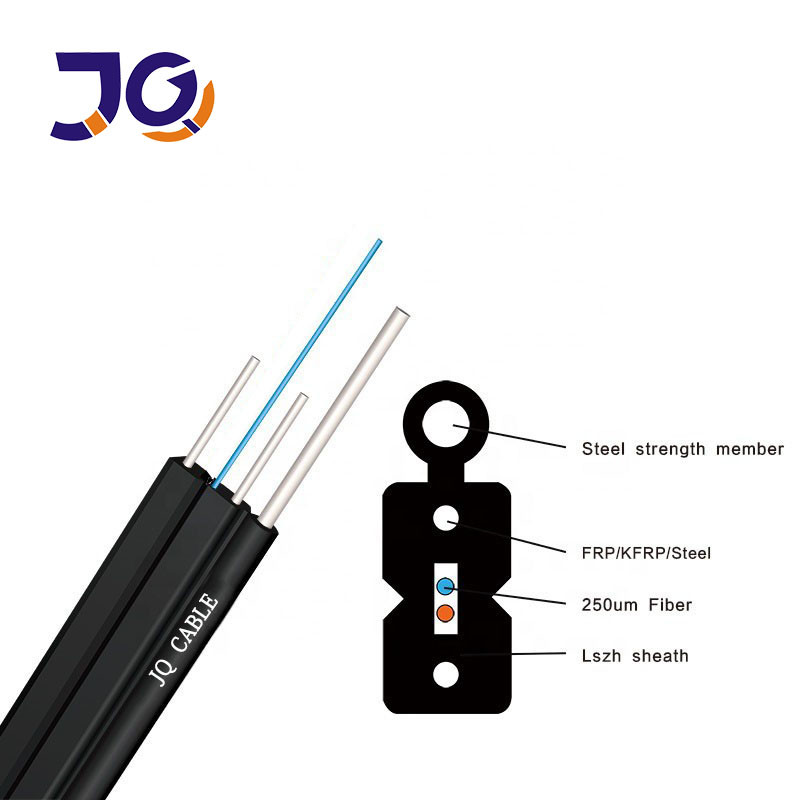

Fiber Optic Drop Cable features a central optical fiber, with parallel non-metallic (FRP) or metal reinforcements on both sides. It is then covered with a black or colored PVC or LSZH jacket (low smoke, halogen-free, flame-retardant).
Characteristic:
The low-bend-sensitivity fiber offers high bandwidth and excellent transmission performance.
Two parallel FRP strength members provide crush resistance to protect the fiber, while a single steel wire or messenger enhances tensile strength.
The cable has a simple structure, lightweight, and high practicality.
Its special flute design makes stripping and splicing easy, simplifying installation and maintenance.
The sheath is low-smoke, zero-halogen, and flame-retardant.
Optical Characteristic:
Model
|
142 |
242 |
342 |
442 |
| Type |
G.652D |
G.657A |
50/125 μm |
62.5/125 μm |
Attenuation(+20 ℃) |
850nm |
|
|
≤3.0dB/km |
≤3.5dB/km |
| 1300nm |
|
|
≤1.5dB/km |
≤1.5dB/km |
| 1310nm |
≤0.40dB/km |
≤0.35dB/km |
|
|
| 1550nm |
≤0.3dB/km |
≤0.25dB/km |
|
|
| Brandwidth(Class A) |
850nm |
|
|
≥500MHz.km |
≥200MHz.km |
| 1300nm |
|
|
≥1000MHz.km |
≥600MHz.km |
| Numerical Aperture |
|
|
0.200 ±0.015NA |
0.275 ±0.015NA |
| Cable Cut-off Wave length |
≤1260nm |
≤1480nm |
|
|
Technical Parameters
| Fiber Cores |
Cable OD(mm) |
Cable/Weight(kg/km) |
Tensile Strength(long/short term) |
Crush Resistance(long/short term N/100mm |
Bending Radius Static/Dynamic mm |
| 1 |
(2.0±0.2)* (5.0±0.2) |
20 |
60/120 |
300/1000 |
15/35 |
| 2 |
(2.0±0.2)* (5.0±0.2) |
20 |
60/120 |
300/1000 |
15/35 |
| 4 |
(2.0±0.2)* (5.5±0.2) |
21 |
60/120 |
300/1000 |
15/35 |
| 6 |
(2.0±0.2)* (6.0±0.2) |
22 |
60/120 |
300/1000 |
15/35
|

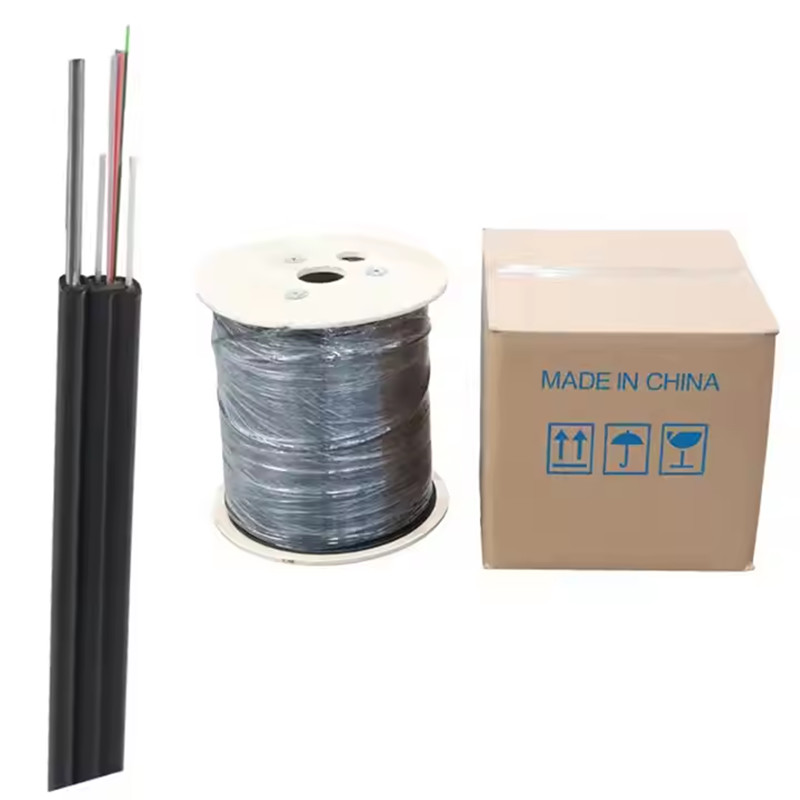

Packing
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
