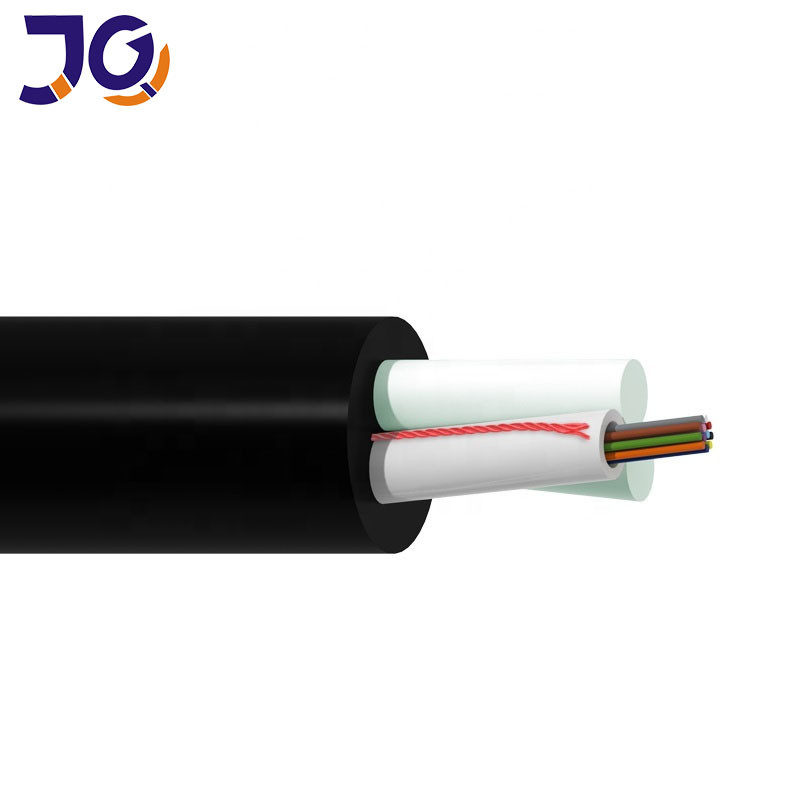

Asu Outdoor Aerial Fiber Optic Cable Mini ADSS Single Mode FRP 12 Core Self Supported

Product Description

Single Mode G652d 6 12 Core Aerial Self-supported Asu Optic Cable

Fiber Optic Cable (GYFFY) TWO FRP Aerial Fiber Optic Cable (ASU)

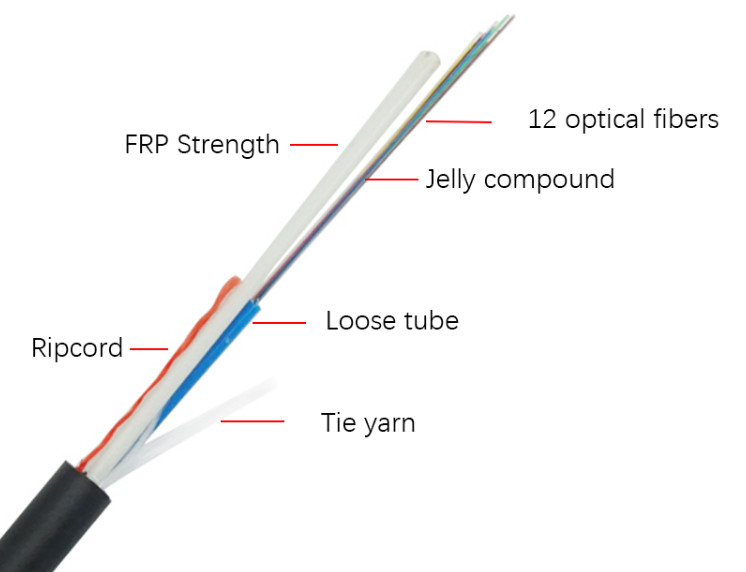

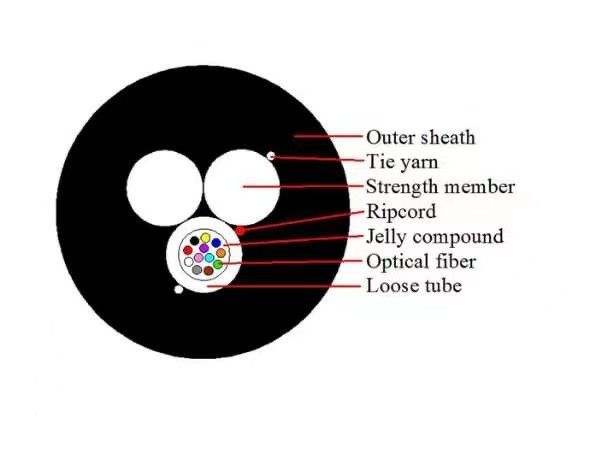

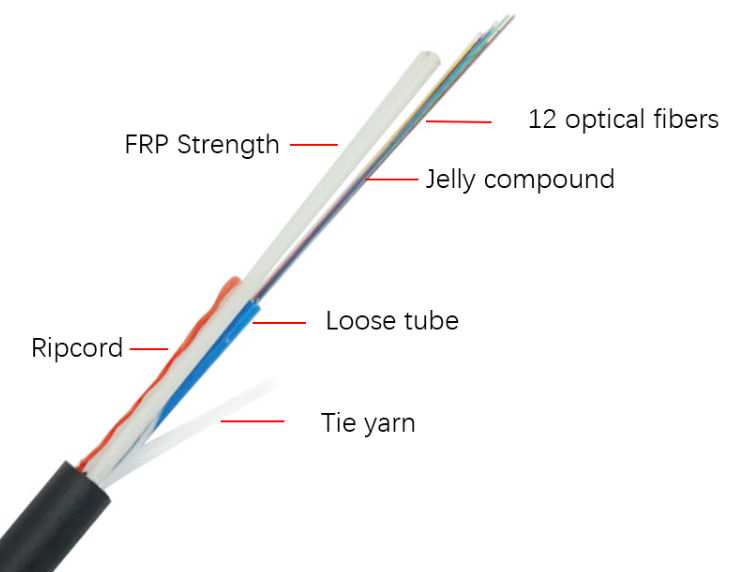

Structure

Fiber type:
2-12 fibers G652D/G657A1/G657A2
Uni- loose tube with gel filled

Fiber Brand:

YOFC/Fujikura Japan/Corning USA/Fiberhome
Armored:

Non-armored FRP all dielectric mini ADSS outdoor fiber optic cable
Strength Member:
Two Fiber Reinforced Plastic(FRP)
Outer jacket:
Black UV-and moisture-resistant polyethylene (PE)

ASU 80

The ASU80 optical cables are designed for self-supporting spans of up to 80 meters, making them ideal for use in urban environments. In cities, where poles are typically spaced around 40 meters apart, this cable provides excellent support and is well-suited for cable installation in such areas.

ASU 100

The ASU100 optical cables are designed for self-supporting spans of up to 100 meters, making them perfect for cable installation in rural areas. In these regions, where poles are typically spaced between 90 and 100 meters apart, the ASU100 provides reliable support for efficient cable routing.

ASU 120

The ASU120 optical cables are designed for self-supporting spans of up to 120 meters, making them ideal for cable installation in locations where poles are widely spaced, such as along roads or across rivers and bridges. This cable ensures reliable support over longer distances, making it perfect for such challenging environments.

Technical parameters:

There are twelve fiber color code.They are A grade fiber.

We are fiber cable manufacturer.We have a factory.

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to SEND INQUIRY!

FQA

Q1. Are you the real manufacturer?
Yes, we are the genuine manufacturer with over 10 years of experience in the industry.

Q2. What’s the MOQ?
The minimum order quantity (MOQ) for Fiber Optic cable is 1 kilometer.

Q3. What’s the delivery time?
The standard delivery time is 5-7 days after order confirmation, depending on the order quantity.

Q4. How should I store the Optical Fiber Cable properly?
Store the drum indoors before use. The drum should be placed sideways, not on its end.

Q5. Can you supply customized products and logos?
Yes, we offer OEM services and can supply customized products and logos as per your requirements.

Q6. What are your payment terms?
We accept T/T, L/C, Western Union, D/P, etc. The payment terms are typically 30% in advance and 70% before shipment.
