GYXTW Aerial Optical Cable 24 Core Steel Wires Messenger Fiber Optic Cable HDPE Sheath

Contact Now

GYXTW Aerial Optical Cable 24 Core Steel Wires Messenger Fiber Optic Cable HDPE Sheath

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day

Place of Origin:	CHINA	Brand Name:	Jiqian/Customize
Certification:	ISO9001, FCC, ROHS/CCC	Model Number:	GYXTW

Detail Information
Fiber Type:	G652D	Oem:	Available
Application:	Aerial,Overhead	Number Of Conductors:	2/12/24 Core
Structure:	Loose Tube	Operating Temperature:	-40 ~ +60 C

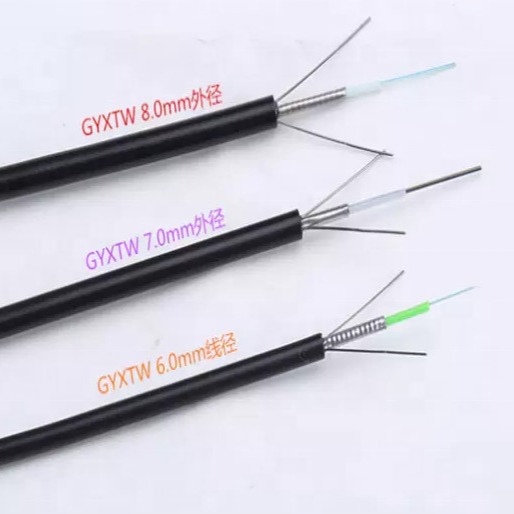

Outer Sheath:	PE, LSZH, OFNR	Outer Diameter:	6/7/8/9mm
Blindado:	Sí	Cable Brand:	Jiqian
Installation:	Self- Supporting Aerial	Package:	Wooden Drum/Customized
Strength:	FRP	Type Of Fiber:	G.652D
Cable Type:	Single-mode	Self Supporting:	Steel Messenger
Rodent Protection:	Yes	Sheath:	PE/LSZH/PVC
Colore:	Black	Loose Tube:	PBT
Water Blocking Tape:	Yes

Product Description

2 4 6 8 16 24 core Aerial Armoured Gyxtw 1km Price Fiber Optic Cable Outdoor

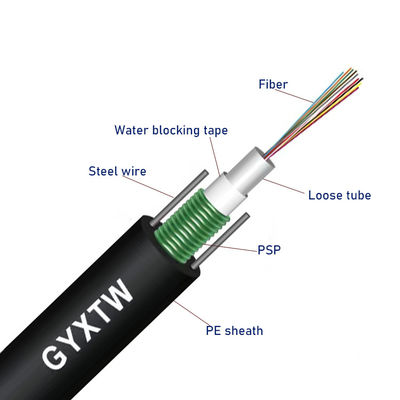

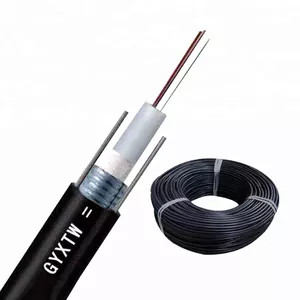

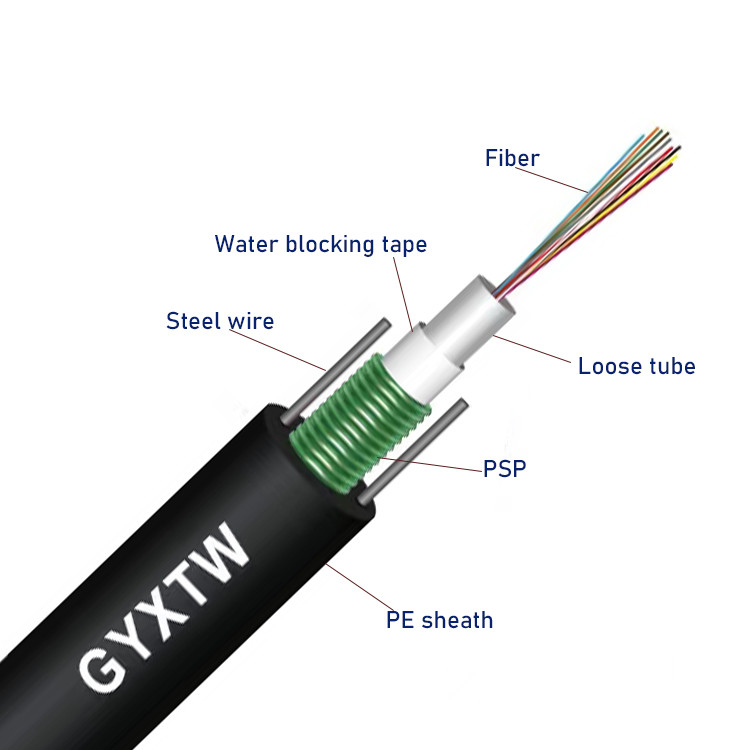

The GYXTW cable consists of 250µm optical fiber ribbons placed into a loose tube made from a high-modulus material, filled with a gel filling compound. The loose tube is coated with a PSP (Polyester Steel Tape) for longitudinal protection. To prevent water ingress, a water-blocking material is inserted between the metallic strength member and the loose tube, ensuring the cable’s compactness and protection against longitudinal water seepage. Two parallel steel wires are positioned on either side, and the cable is finally completed with a PE outer sheath. GYXTW Aerial Optical Cable 24 Core Steel Wires Messenger Fiber Optic Cable HDPE Sheath 0

GYXTW Aerial Optical Cable 24 Core Steel Wires Messenger Fiber Optic Cable HDPE Sheath 1

Product Characteristics:

The loose tube material offers excellent mechanical properties and temperature stability.
It is highly resistant to hydrolysis and has superior strength.
The tube is filled with a specialized compound that provides essential protection for the fibers.
It offers strong lateral pressure resistance while maintaining flexibility.
The double chrome-plated plastic-coated steel tape (PSP) enhances the moisture resistance of the optical cable.
The two parallel steel wires ensure sufficient tensile strength.
The cable has a small diameter, is lightweight, and easy to install.

Optical Fibre Performance:

Type	Attenuation(+20℃)				Bandwidth		Numerical aperture
Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical aperture
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA

Technical Performance

Model	Fiber count	Tube count	Filling rope count	Weight (kg/km)	Tension Long/Short term (N)
GYXS/GYXTW-2~12Xn	2~12	82	600/1500	300/1000	10D/20D
GYXS/GYXTW-14~24Xn	14~24	127	600/1500
GYXS/GYXTW-2~12Xn	2~12	124	1000/3000
GYXS/GYXTW-14~24Xn	14~24	147	1000/3000

Environmental Characteristics:

• Transport/storage temperature: -40℃ to +70℃

Application

• Outdoor Duct, overhead

product packing :

1). 4km/reel

2). 5km/reel Color Box and OEM Package available.

20" Container Full Load: 400km.

40" Container Full Load: 800km.

FAQ:

Are you the actual manufacturer?
Yes, we are a factory based in Guangzhou, China. You are welcome to visit us!
What is the minimum order quantity?
Our minimum order is 1KM. We support new projects, and trial orders are available.
Can I get a sample?
Yes, we offer free samples. You only need to cover the shipping cost.
What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.
What is the delivery time?
Typically, it’s 3-7 working days, depending on the quantity.
Can you provide customized products and logos?
Yes, we offer OEM & ODM services. Feel free to reach out!
