1/2/4 Core Indoor Fiber Optic Drop Cable GJXH-2B6 FTTH g657A2 LSZH Jacket

Contact Now

1/2/4 Core Indoor Fiber Optic Drop Cable GJXH-2B6 FTTH g657A2 LSZH Jacket

Minimum Order Quantity :	1km	Packaging Details :	Wooden drum
Delivery Time :	3-5 days,it depends on order quantity	Payment Terms :	L/C, T/T, Western Union,Alipay
Supply Ability :	4500 per month

Place of Origin:	China	Brand Name:	JQ/OEM/Customize
Certification:	ISO 9001,ROHS CE-EMC FCC SDOC	Model Number:	GJXH-2B6

Detail Information
Place Of Origin:	Guangzhou,China	Manufactuer:	Yes
Type:	Drop Cable GJXH	Fiber Type:	G657A1/A2/G652D/G657A1/G657A2
Jacket:	LSZH PVC	Length:	1km Or 2km
Oem/ODM:	Available	Central Strength Member:	FRP Strength Member,steel Wire Strength Member
Weight:	10-20kg/km	Outer Sheath:	LSZH
Core Number:	1-12 Core	Number Of Conductors:	1/2/4
Factory:	Yes	Weigt:	10KG/20KG
Central Strength Member:	FRP Strength Member/steel Wire	Application:	Outdoor Level And Vertical Distribution
Jacket Material:	LSZH/PVC	Color:	White /black
Connector Insertion Loss:	≤0.3dB	Material:	LSZH /PVS
Out Color:	Black And White	Material Of Sheath:	LSZH Or PE
Jacket Color:	Black,White,as Request	Warranty:	15 Years

Product Description

Product descrpition

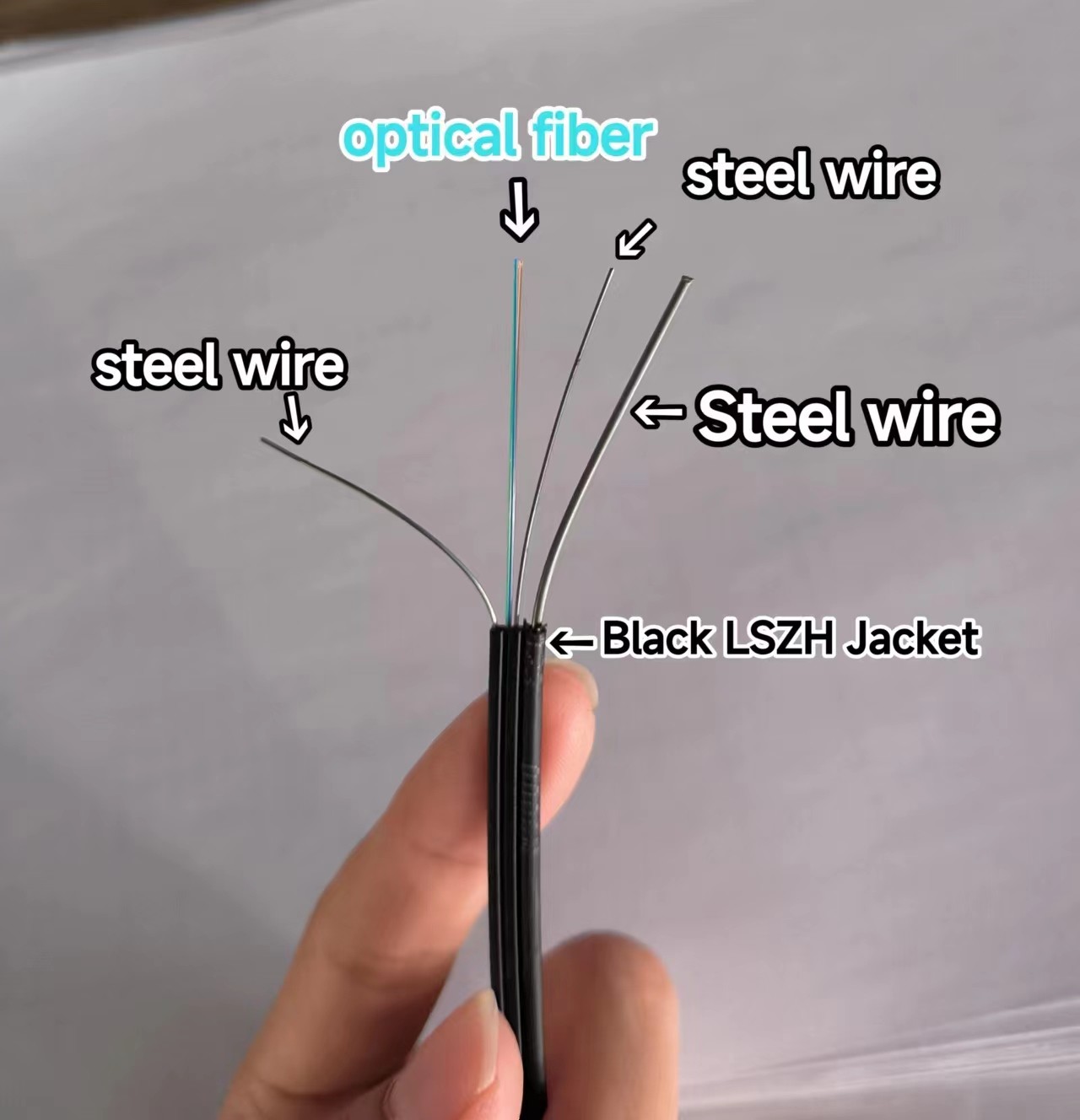

FTTH Drop Cable is used for fiber-to-the-home connections between terminals and end users. It features a central G.657A1/A2 fiber, reinforced by two parallel steel wires for strength. The LSZH outer jacket (black or white) ensures flame resistance and UV protection. Compact and flexible, it supports tight bends and is ideal for indoor/outdoor installations.

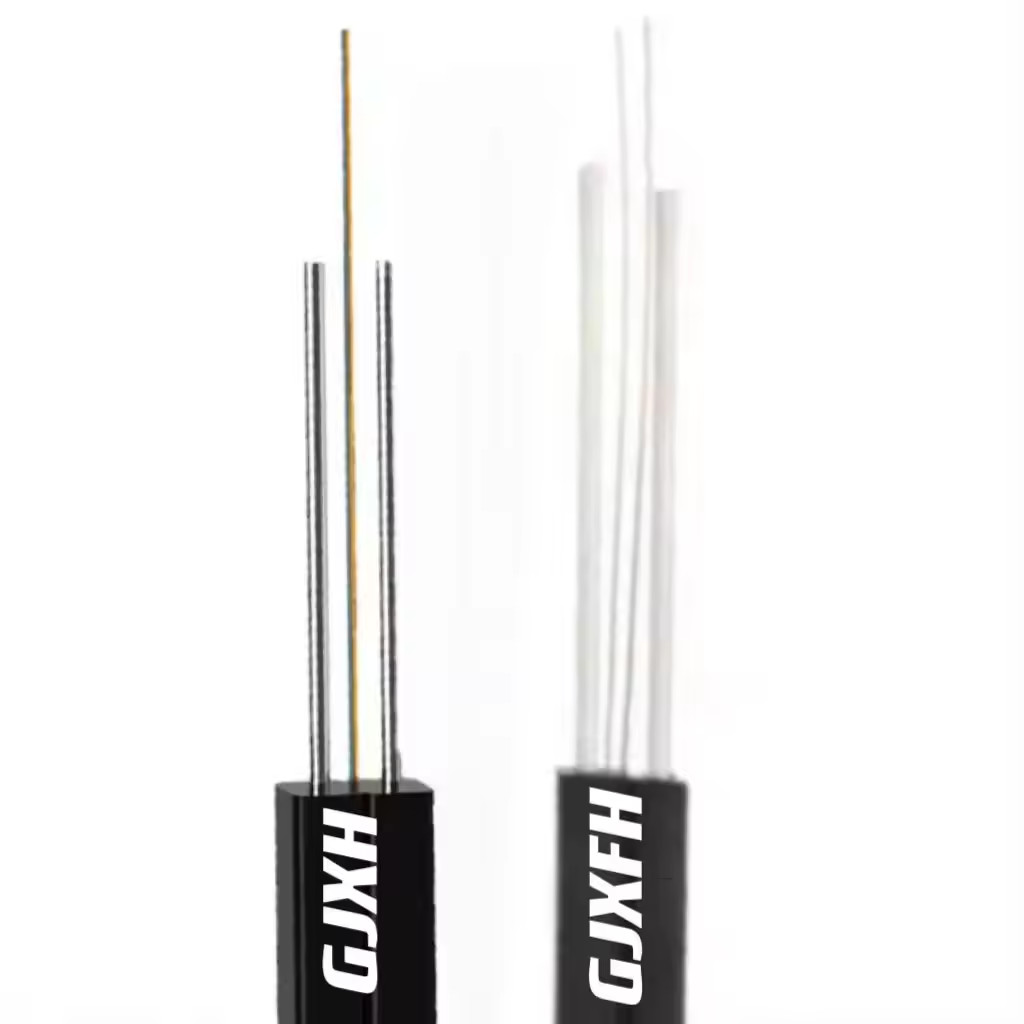

Indoor Self-supporting FTTH Drop Cable (1/2/4 Core, Single Mode)

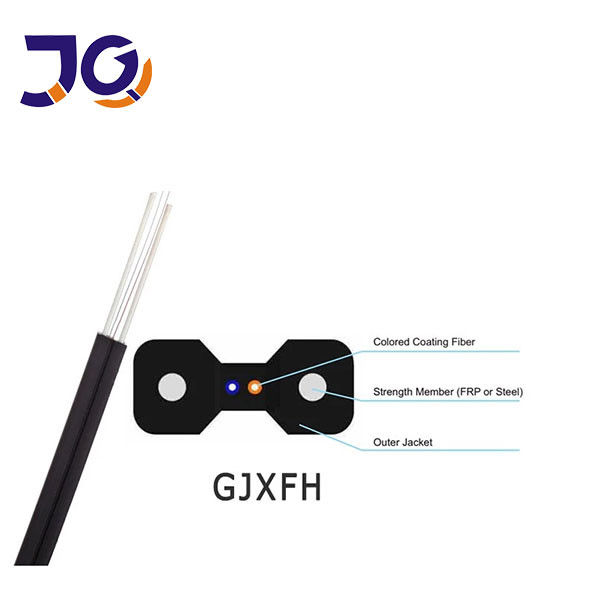

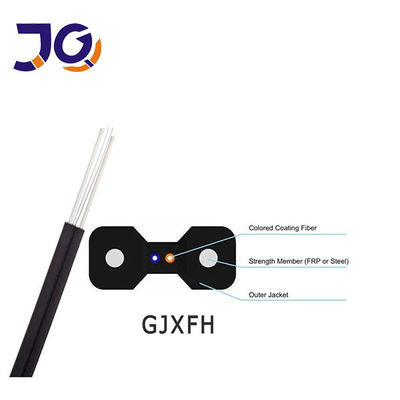

This cable uses G.657A1 single-mode fiber, with the fiber placed between two parallel strength members—either FRP, KFRP, or steel wires—for enhanced mechanical support. It is finished with a black or white LSZH sheath, offering flame resistance and suitability for indoor applications.


Related Products

Fiber Optical

Item		Unit	Specification
Item		Unit	G. 657A
Mode field diameter	1310nm	mm	8.6 ± 0.4
Cladding diameter		mm	125.0 ± 0.7
Cladding non-circularity		%	≤1.0
Core concentricity error		mm	≤0.5
Coating diameter		mm	245 ± 5
Coating/cladding concentricity error		mm	≤12
Cable cut-off wavelength		nm	≤ 1260
Attenuation Coefficient	1310nm	dB/km	≤0.35
Attenuation Coefficient	1550nm	dB/km	≤0.21
Macro-bend loss (1 turn,7.5mm radius)	1550nm	dB/km	≤0.5
Macro-bend loss (1 turn,7.5mm radius)	1625nm	dB/km	≤1.0
Proof stress level		kpsi	≥100

Technical parameters

Product Model	Fiber Count (core)	Cable Diameter(mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/ShortTerm(N)	Bending Radius Static/Dynamic
GJXH	1	(2.1+0.1)*(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	2	(2.1+0.1)x(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	4	(2.3+0.1)*(3.3+0.1)	12	1000/2200	200/1000	\|15/30
GJXFH	1	(2.1+0.1)x<(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	2	(2.1+0.1)x(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	4	(2.1+0.1)x(3.1+0.1)	11	800/1800	200/1000	15/30
GJYXCH	1	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXCH	2	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	\|15/30
GJYXCH	4	(2.1+0.1)x(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXFCH	1	(2.1+0.1)*(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	2	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	4	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30

Package

Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

1/2/4 Core Indoor Fiber Optic Drop Cable GJXH-2B6 FTTH g657A2 LSZH Jacket 3

1/2/4 Core Indoor Fiber Optic Drop Cable GJXH-2B6 FTTH g657A2 LSZH Jacket 4

1/2/4 Core Indoor Fiber Optic Drop Cable GJXH-2B6 FTTH g657A2 LSZH Jacket 5

1/2/4 Core Indoor Fiber Optic Drop Cable GJXH-2B6 FTTH g657A2 LSZH Jacket 6

Lead time:
Quantity(km)	Samples	1-100km	100-500km
Earliest time	1days	3-5 work days	5-7 work days

FAQ

1. Q: Are you a factory or a trading company?
A: We are a manufacturer.

2. Q: What is your minimum order quantity (MOQ)?
A: The MOQ for fiber optic cable is 1km.

3. Q: Which fiber brands do you use?
A: We use well-known brands such as YOFC, Fiberhome, and others.

4. Q: Do you accept small orders?
A: Yes, we welcome small orders, especially to support new projects and customers.

5. Q: What is your delivery time?
A: Typically 5–7 days after order confirmation, depending on quantity.

6. Q: Do you offer customized products and branding?
A: Yes, OEM service is available.

7. Q: What are your payment terms?
A: We accept T/T, L/C, Western Union. A 30% deposit is required, with the balance due before shipment.
