GJYXCH Outdoor FTTH Fiber Optic Drop Cable Steel wire Messenger Self-Supporting

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong,China Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001 Model Number: GJYXCH

Detail Information

Model Number: GJYXCH Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request Length: 1KM
Color: Customized Cable Structure: Self-supporting With Messenger Wire
Messenger: Steel Wire Package: Wooden Drum/Customized
Application: FTTH FTTB FTTX Network Oem: Available
Keywords: Outdoor FTTH Drop Cable Amoured: Non
Number Of Fiber: 1/2/4 Cores Strength Member: Steel Messenger Wire/FRP
Core: 2 4 6 Weigt: 10kg
Tensile Strength: 100N Colour: Black Or White
Messenger Wire: 1.0mm Steel Wire Life Time: 15 Years
Warranty Time: 30 Years Cable Length: Customizable
Wave Length: 1310nm/1550nm Weight: 40kgs/km
Service: OEM

Product Description

Product Description:

GJYXCH FTTH Self‑Supporting Drop Cable

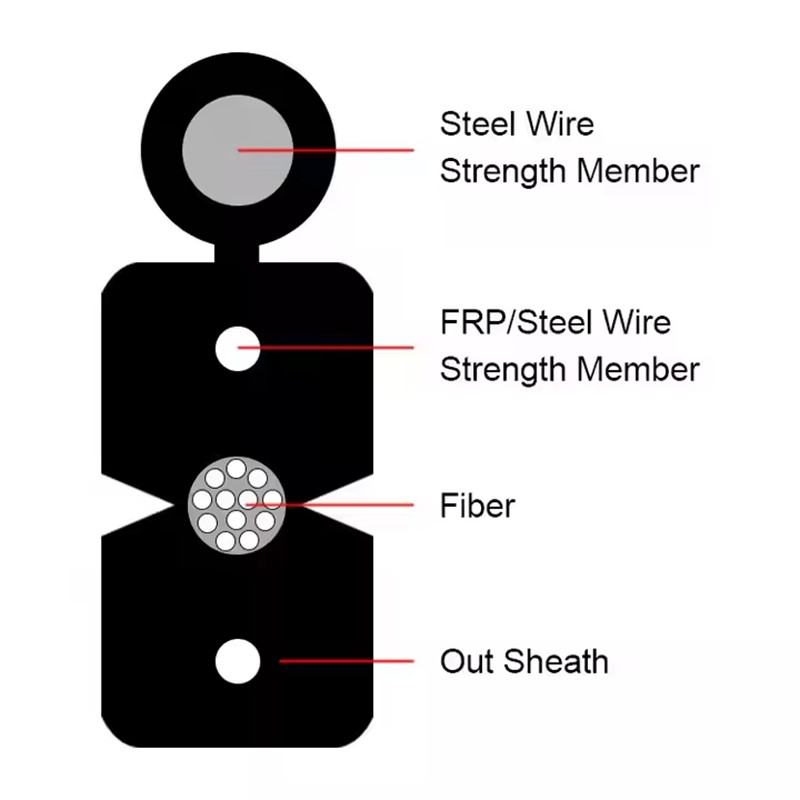

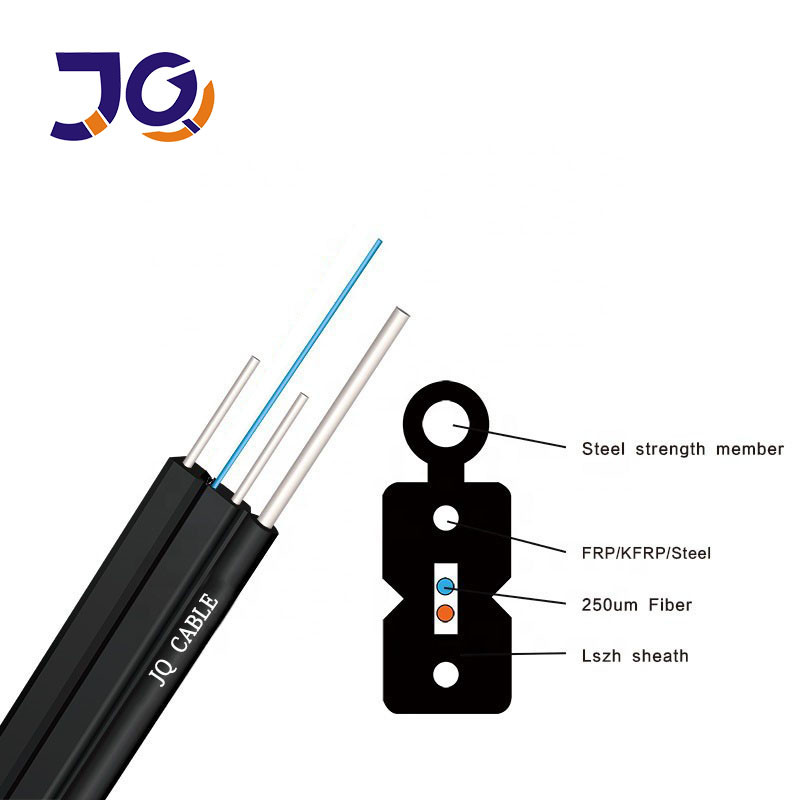

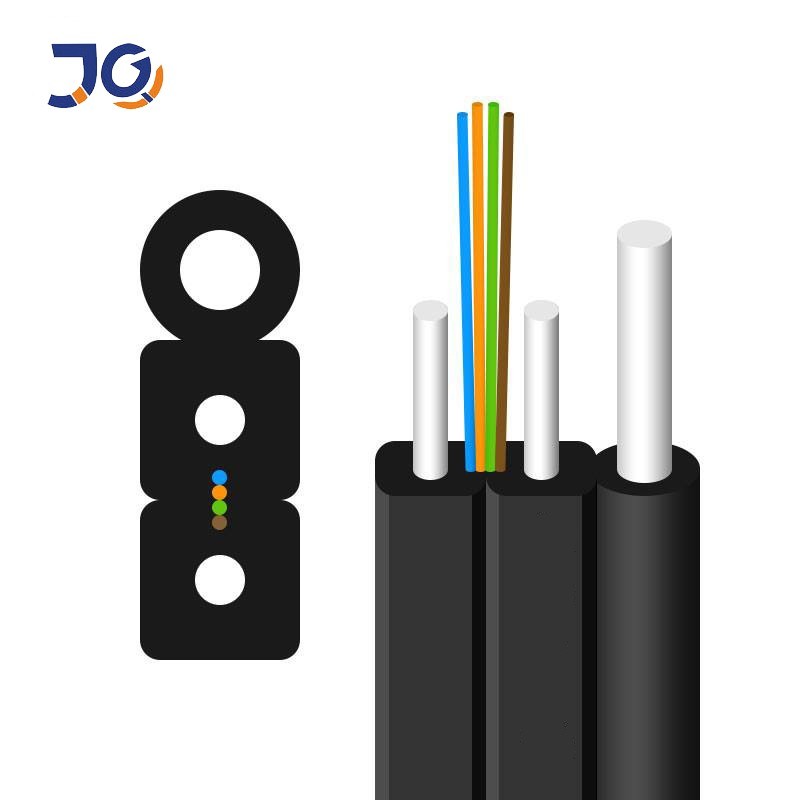

The GJYXCH uses a central single‑mode fiber (typically G.657A1/A2) surrounded by two parallel FRP/steel strength members. It also includes an additional steel messenger wire for enhanced tensile support. A durable LSZH jacket (available in black or other colors) completes the assembly, offering flame resistance, low smoke emission, UV protection, and flexibility for easy installation.

GJYXCH Outdoor FTTH Fiber Optic Drop Cable Steel wire Messenger Self-Supporting 0

Characteristics:

  1. Layered non-metallic reinforcement provides strong mechanical and thermal performance.

  2. Buffer grease inside the tube offers fiber protection and moisture resistance.

  3. High-tensile non-metal elements and glass yarn support axial load.

  4. Water-blocking gel in the core enhances waterproof capability.

  5. Rodent-resistant structure reduces the risk of cable damage.



Application:

■Adapted to Outdoor distribution.
■Long distance and local area network communication.
■Suitable for aerial pipeline laying method.

Specification:

Fiber count 1F/2F/4F
Attenuation 1310nm:≤0.34 1550nm:≤0.21
Color Of fiber Blue Orange Green Brown
Fiber Type G652D/G657A1/G657A2
Strength member Steel wire/FRP/KFRP
Outer sheath LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions 2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range -20 ℃ to + 70 ℃
Installation temperature range -0 ℃ to + 60 ℃
Transport and storage temperature range -20 ℃ to + 70 ℃
Tension Load (N) Short term :800N Long term :500N
Crush Load(N) Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius 30 x OD
Minimal operation bending radius 15 x OD
Cable marking The marking length 1meter apart , as required

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a large-scale, high-tech joint-stock enterprise located at 2nd Floor, Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou, Guangdong, China. We specialize in the research, development, production, and sale of optical cables ranging from 2 to 288 cores.

Guided by the values of integrity, speed, flexibility, efficiency, and innovation, we are committed to excellence and customer satisfaction as the key measure of our success. We offer high-quality products, competitive prices, and excellent service.

We warmly invite customers worldwide to visit our factory and establish long-term partnerships.

GJYXCH Outdoor FTTH Fiber Optic Drop Cable Steel wire Messenger Self-Supporting 1GJYXCH Outdoor FTTH Fiber Optic Drop Cable Steel wire Messenger Self-Supporting 2

WHY CHOOSE US:

GJYXCH Outdoor FTTH Fiber Optic Drop Cable Steel wire Messenger Self-Supporting 3

Certification:

GJYXCH Outdoor FTTH Fiber Optic Drop Cable Steel wire Messenger Self-Supporting 4

FAQ:

1. Who are we?
We are a Guangdong-based company established in 2017, with an office team of 11–50 employees. Our main markets include Africa (33%), South America (17%), Western Europe (17%), Middle East (17%), Southeast Asia (9%), and South Asia (7%).

2. How do we ensure quality?
We provide pre-production samples before mass production and conduct final inspections before shipment.

3. What products do we offer?
Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and Indoor/Outdoor Fiber Cables.

4. What services do we provide?

  • Delivery Terms: FOB, EXW

  • Payment Currencies: USD, CNY

  • Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Languages Spoken: English, Chinese

5. What is the MOQ?
Minimum order quantity is 1 km.

6. Can I get a sample?
Yes, free samples are available; you only pay for shipping.

7. Do you accept OEM or ODM orders?
Yes, we are a manufacturer with an in-house engineering team ready to meet your specifications.

8. What is the delivery time?
Generally, delivery takes 3–7 days after order confirmation, depending on quantity.
