Product Description
12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
What is ADSS Cable?
ADSS (All-Dielectric Self-Supporting) cable is a fully non-metallic fiber optic cable designed with built-in strength elements—typically aramid yarns or stranded glass-reinforced plastic (GRP) rods—embedded within its circular structure. The optical fibers are usually housed in polymer loose tubes and protected by the overall cable construction.
Designed for both distribution and transmission line environments, ADSS cable can even be installed on live power lines. As the name suggests, it requires no additional support or messenger wire, allowing for quick, single-pass installation—making it a cost-effective and efficient solution for building fiber optic networks.
Advantages of ADSS Cable
-
Lightweight and compact, reducing load on towers and poles
-
Robust construction provides excellent resistance to moisture and chemicals
-
Highly versatile for a wide range of overhead outdoor applications
-
Long-distance transmission capabilities
-
Service lifespan of up to 30 years after installation
Applications
-
Used by power utilities, telecom operators, railways, and private network providers
-
Suitable for both distribution and high-voltage transmission lines
-
Can be installed close to conductors, even in live-line conditions
-
Ideal for underbuild installations with limited downtime
-
Perfect for fast and low-cost network deployments
-
Widely used in FTTX projects, including FTTH (Fiber to the Home)
Standards Compliance
ADSS cables meet the IEEE P1222 and IEC 60794-1 standards.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 6 |
1+5 |
6 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 8 |
1+5 |
4 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 12 |
1+5 |
6 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
9.8 |
85 |
95 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
10.0 |
88 |
98 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
10.5 |
98 |
108 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
12.0 |
122 |
135 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
15.2 |
176 |
189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 6 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 8 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 12 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.0 |
128 |
138 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.5 |
130 |
140 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
13.2 |
145 |
155 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
14.5 |
185 |
195 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
16.5 |
212 |
228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type
|
Attenuation
(+20℃)
|
Bandwidth
|
Optical cable cut-off wavelength
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
| G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
≤1260nm |
| G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
≤1450nm |
| 50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
| 62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
---
|
Details picture shows
single jacket ADSS fiber cable

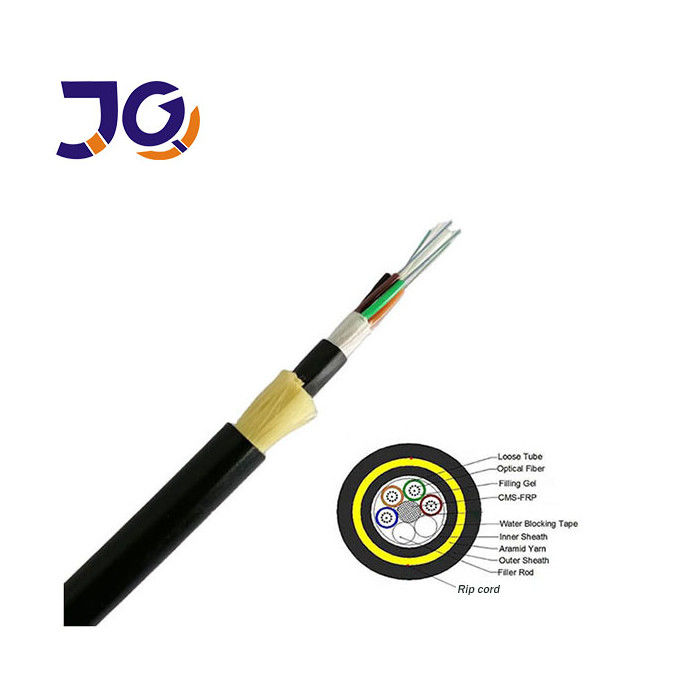

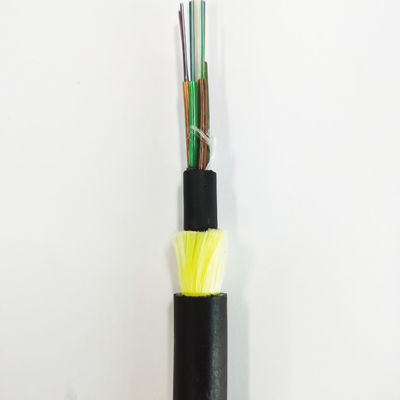

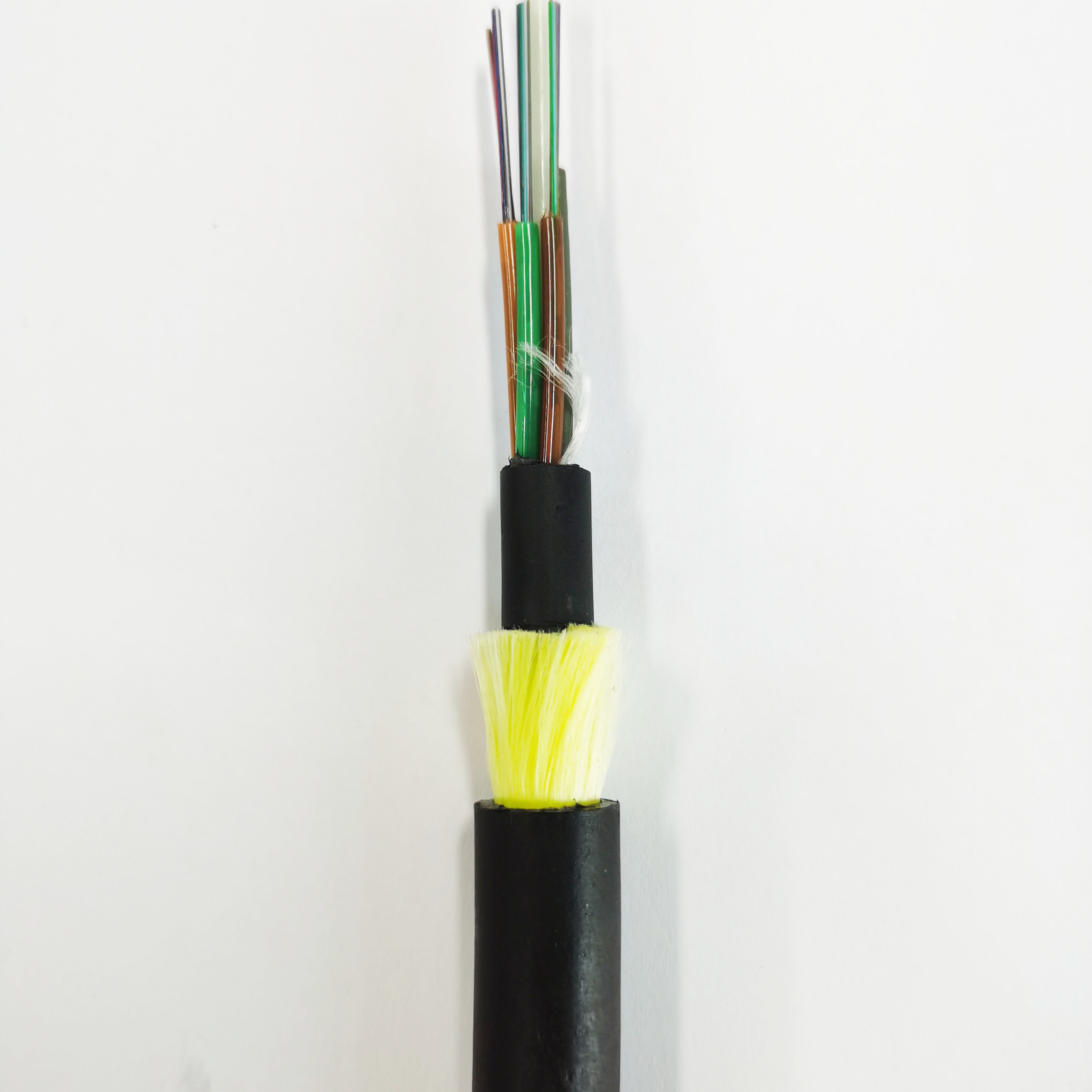

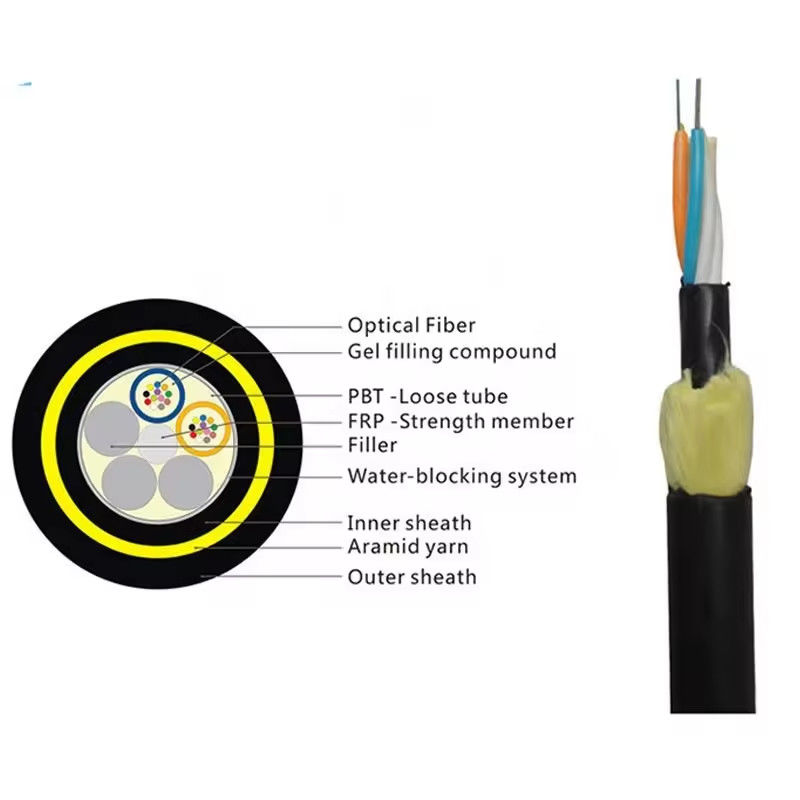

double jacket ADSS fiber optic cable
Packing:
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer with over 10 years of experience, specializing in the R&D and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou—you're welcome to visit us anytime.
2. How do you ensure product quality?
Every fiber is strictly tested before shipment. Free samples are available upon price confirmation for quality evaluation.
3. Do you accept small orders?
Yes, we support small-volume orders, especially for new customer projects. We believe long-term partnerships often start from small orders.
4. What’s your delivery time?
Typically 3–7 working days, depending on order quantity. We’ll arrange shipment promptly once payment is received.
5. Do you provide OEM services?
Yes, OEM is supported. We can customize products with your logo and accommodate your specific design requirements.
