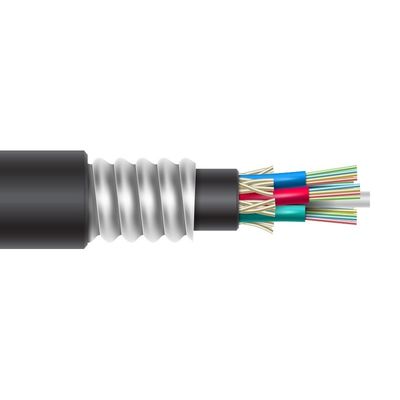

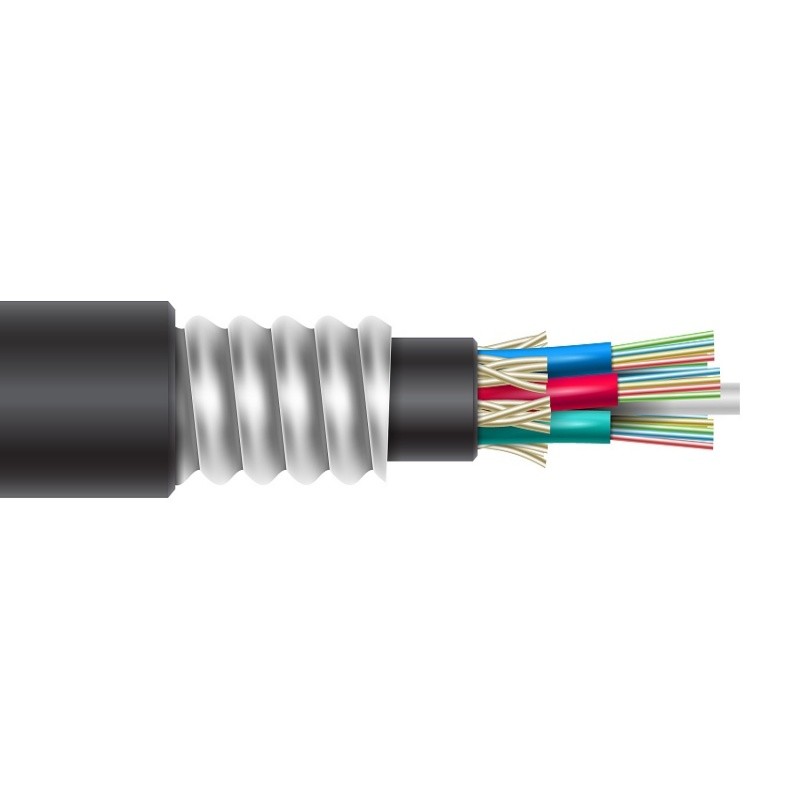

Outdoor Underground Direct Burial Armored Fiber Optic Cables Double Jacket

Product Description

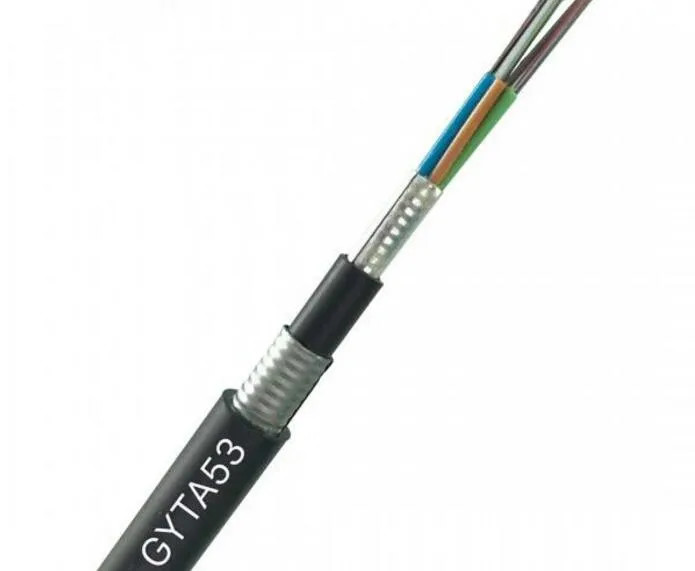

Applications of GYTA53 Fiber Optic Cable

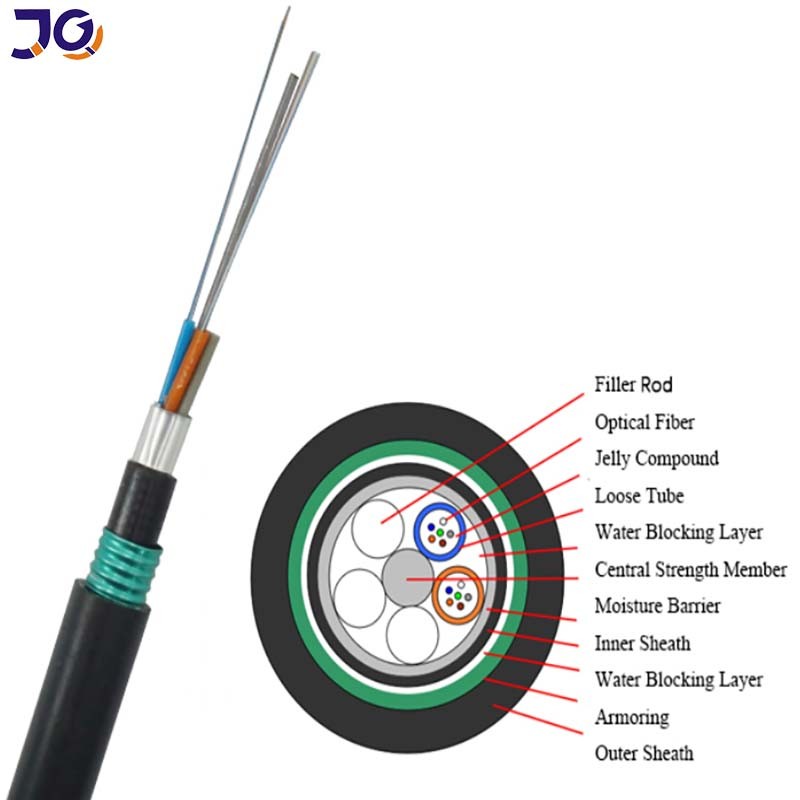

GYTA53 fiber optic cable features a corrugated steel tape and aluminum tape armor with a double sheath, making it highly suitable for use in demanding environments. It is especially ideal for areas where the cable may be exposed to mechanical stress, such as in direct burial installations. Additionally, it can be deployed in ducts where protection against rodents or moisture is required.

Typical Application Scenarios:

• Installation method: Direct burial

• Use cases: Long-distance data transmission, metropolitan trunk networks, CATV systems, and computer communication networks

Conclusion

GYTA53 is recognized for its robust construction and reliable performance, making it a preferred option in challenging conditions. Its ability to withstand mechanical impact and environmental hazards has allowed it to gain a solid presence in the market. With growing adoption, GYTA53 is on track to become a major player in the communication cable sector. Its strength and durability make it especially effective in regions exposed to high external pressures. This article has highlighted the key features and practical applications of the GYTA53 fiber optic cable, showcasing its value in modern network infrastructure.



Fiber Optic G652D



Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100
