Home ProductsOutdoor Fiber Optic CableSubmarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply
Contact Now

Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply

Minimum Order Quantity : 1KM Packaging Details : Wooden drum
Delivery Time : 5-8 working days Payment Terms : D/P, T/T
Supply Ability : 100000m/per day
Place of Origin: Guangdong, China Brand Name: ISO 9001/CE/FCC/ROHS
Certification: ISO 9001/CE/FCC/ROHS Model Number: GYTA33

Detail Information
Cable Length: 1KM/2KM/3KM/4KM Per Drum Outer Jacket: PE
Tube: Central Loose Tube Armoured Type: Aluiminum Tube
Fiber: G652D, G657A1, G657A2 Sample Status: In Stock
Feature: Self-supporting Cores: As Per Buyer's Request
Manufacturer: Yes
Highlight:

GYTA33 Submarine Optical Cable

,

Fiber Optic Equipment Submarine Cable

Product Description

Product Description

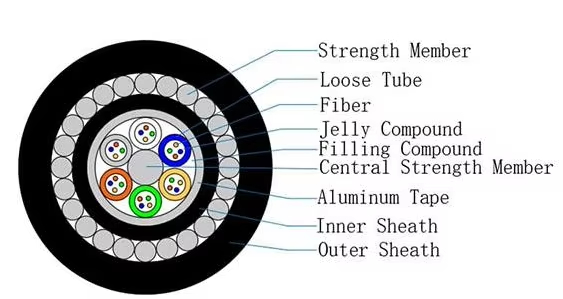

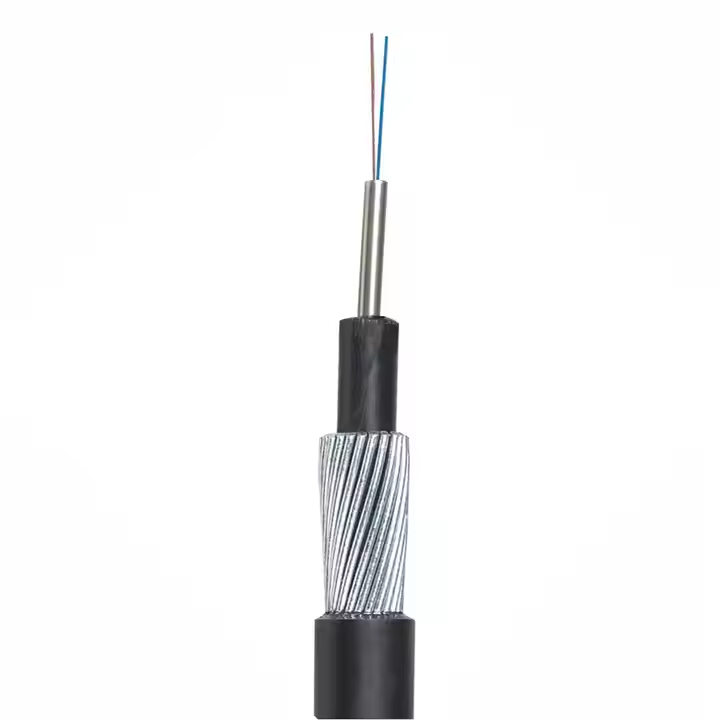

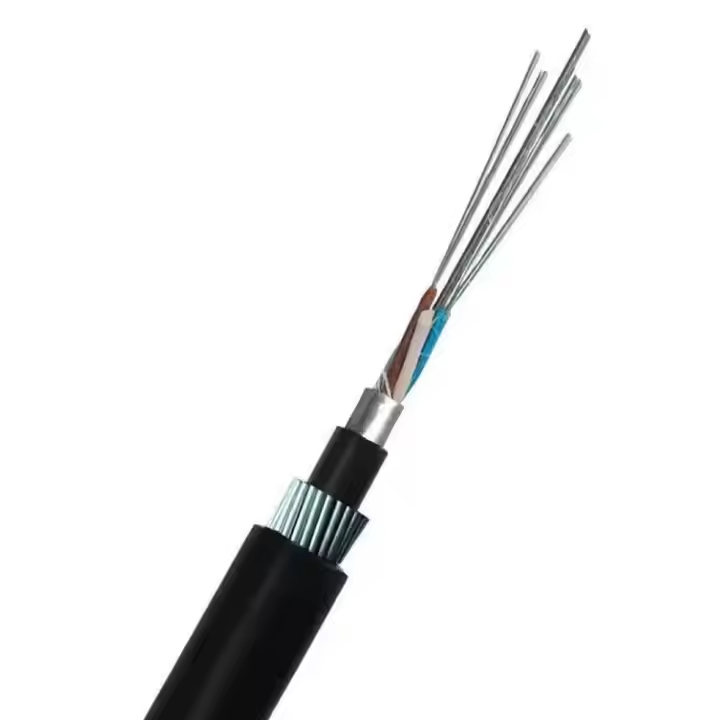

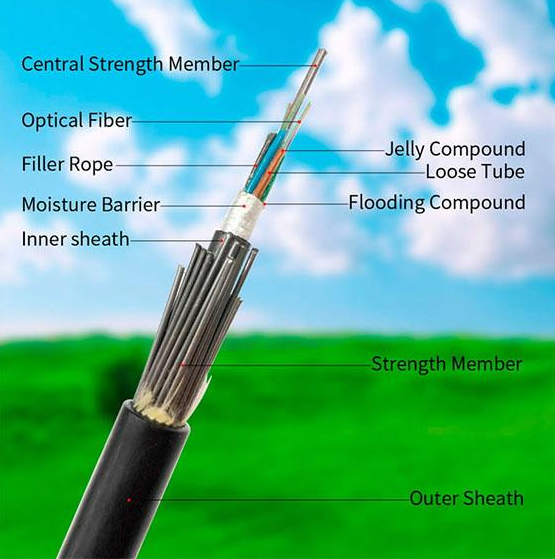

1. Central Strength Member: Metal reinforcement component to enhance tensile strength. 2. Loose Tube: Made of high-modulus material, filled with waterproof compound to protect the optical fibers. 3. Armor Layer: Single or double layer of fine round steel wires to improve mechanical performance.
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply 0
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply 1
Specification
Fiber count
2~30
32~36
38~60
62~72
2~36
38~72
CSM/Steel wire (mm)
--/1.5
--/2.0
--/1.8
2.4/1.8
--/2.0
2.4/1.8
Element mumber
5
6
5
6
6
6
Max. cores in tube
6
6
12
12
6
12
Diameter of inner sheath
8.3
8.8
9.1
9.7
10.5
10.5
Steel wire diameter and No.
Φ1.0/28
Φ1.0/29
Φ1.0/30
Φ1.0/32
Φ1.5/24
Φ1.5/24
Cable diameter approx (mm)
14.3
14.8
15.1
15.7
17.5
17.5
Weight approx (kg/km)
315
328
.340
360
520
520
Tensile strength (N)
Long term
6000
10000
Short term
10000
2000
Crush Resistence(N/100mm)
Long term
1000
Short term
3000
Bending Radius (mm)
Dynamic
≥30 ×Dia. Of cable
Static
≥15×Dia. Of cable
Operating Temperature (°C)
-40°C ~+ 70°C
Application
Directly burial and Under water

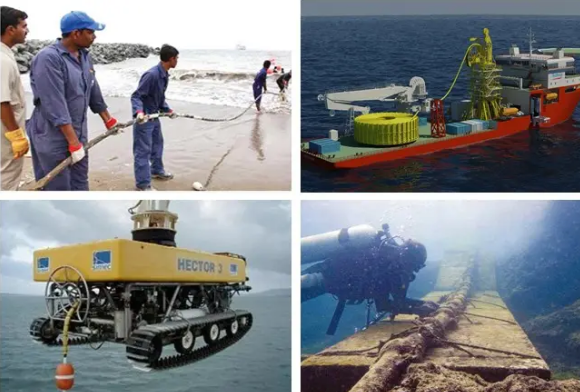

Where can we use the product
1.Submarine Composite Power Cables - land, offshore wind farms, offshore oil and gas installations
2. Umbilicals - interconnecting/ connecting subsea installations to fixed, floating platforms, FPSOs
3. Fibre Optic Cables - power and signal feeding subsea installations, scientific sensors, seismic arrays, etc
4. ROV Control Cables - ROVs and trenchers, dynamic applications down to 7,000 meters.
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply 2
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply 3

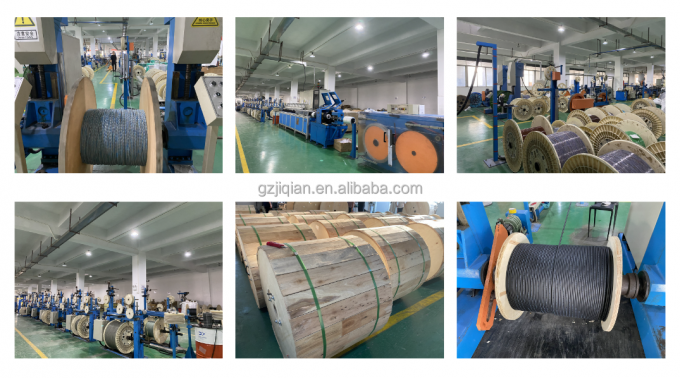

Packing & Delivery
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply 4
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply 5
Lead time:Usually 7days,it depends on order quantity.
Shipping methods:by sea LCL/FCL,It depends on order quantity.
Company Profile
02:36

02:36

OEM&ODM
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply 6
Certifications
Submarine Optical Cable GYTA33 12/24/48 Cores Double Sheathed Reinforced Armoured Fiber Optic Equipment Supply 7
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for import.Every 2km/3km/4km for one drum.And the dimension of the drum can be customized according to your requirement.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW,FCA, FOB, CFR, CIF, DDP.
Q4. How about your delivery time?
A:Generally, it will take 10 to 20 days after receiving your prepayment. The specific delivery time depends on the items and thequantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can provide FREE sample if we have them in stock, but the customers have to pay the courier cost.
