Factory Stock Outdoor Double Armoured GYTS53-96 Cores Fiber Optic Cable Double Jacket G652D Shipped Same Day

Contact Now

Factory Stock Outdoor Double Armoured GYTS53-96 Cores Fiber Optic Cable Double Jacket G652D Shipped Same Day

Minimum Order Quantity :	1km	Delivery Time :	1-5days
Payment Terms :	D/P, T/T, Western Union, MoneyGram	Supply Ability :	10000m/per days

Place of Origin:	Guangdong, China	Brand Name:	JQ
Certification:	CE RoHS FCC	Model Number:	GYTS53

Detail Information
Cable Weight:	250kg/km	Cable Structure:	1+8
Fiber Per Tube:	12	Cable Diameter/ Height:	14.6±0.3

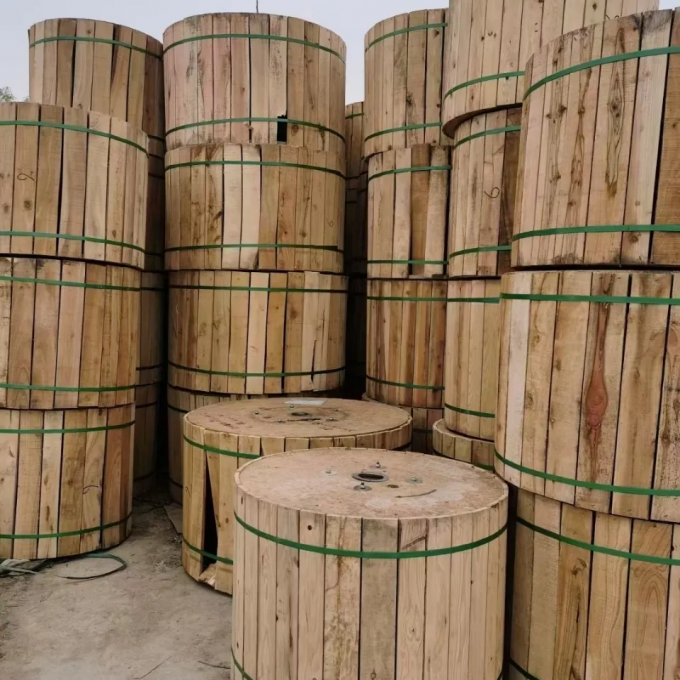

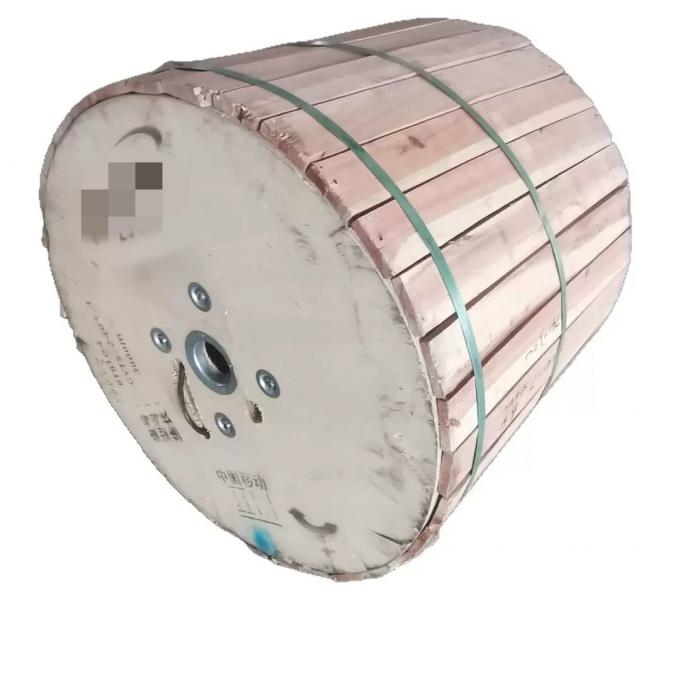

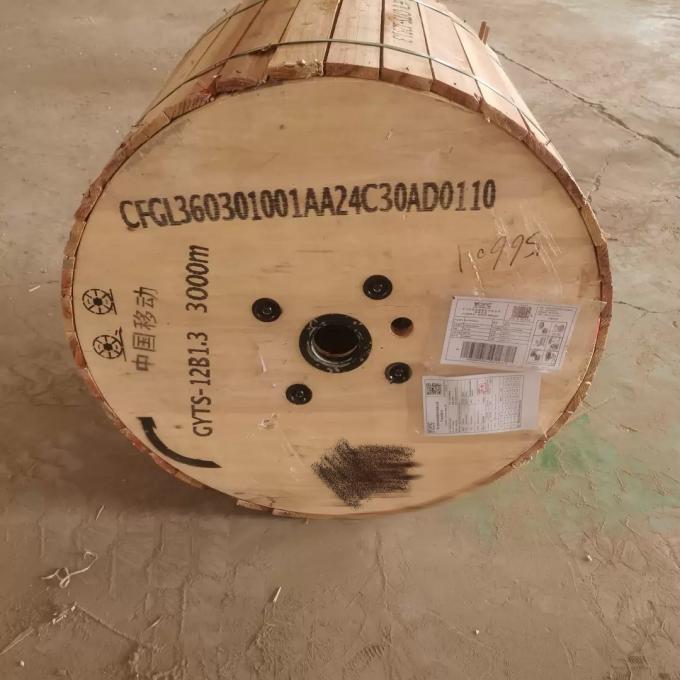

Drum Type:	Wood Drum
Highlight:	G652D Outdoor Fiber Optic Cable , Outdoor Double Armoured Fiber Optic Cable

Product Description

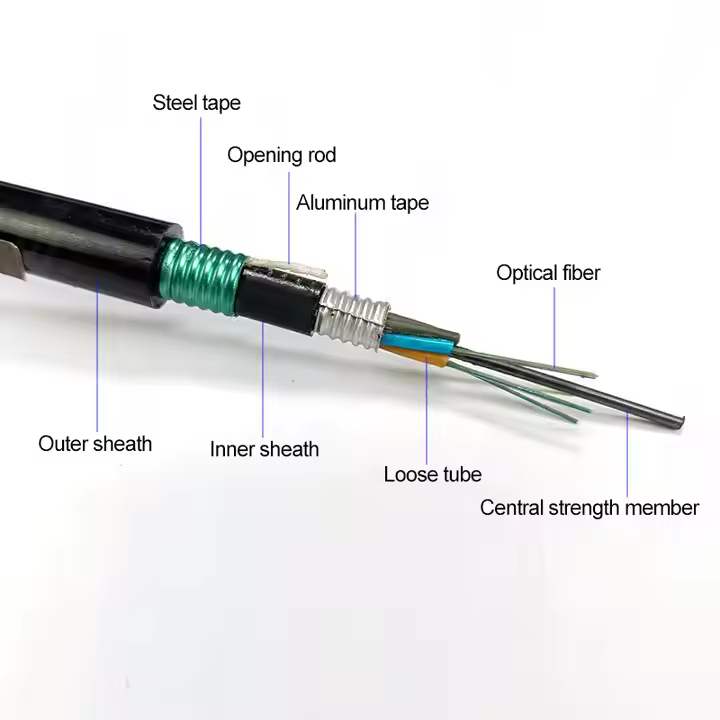

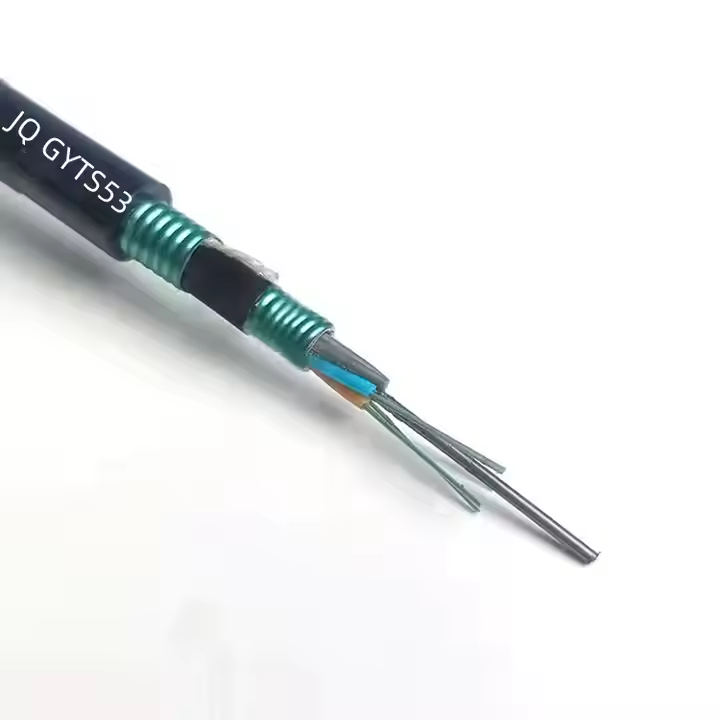

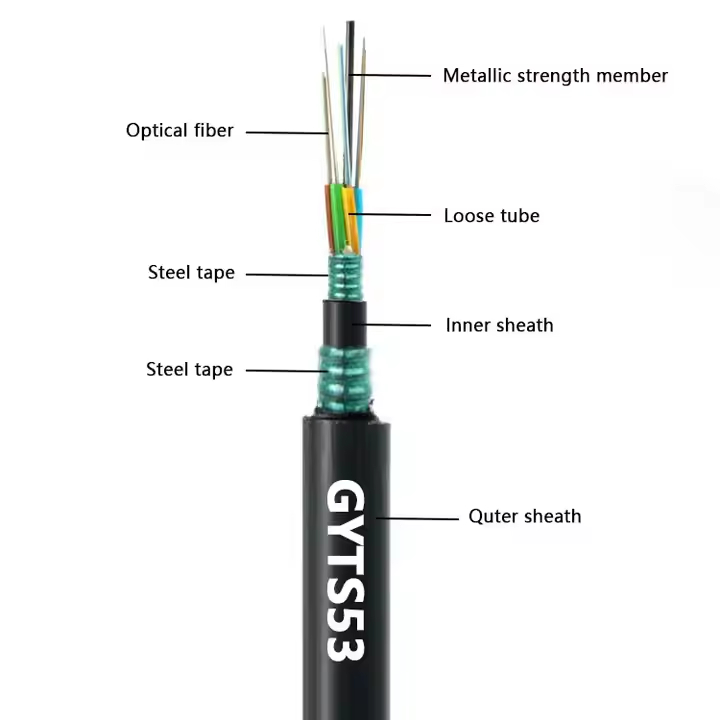

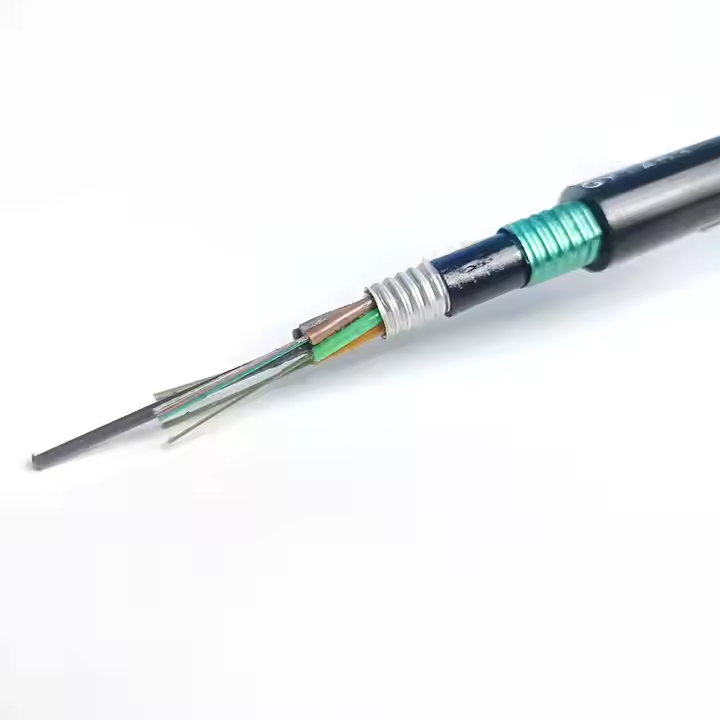

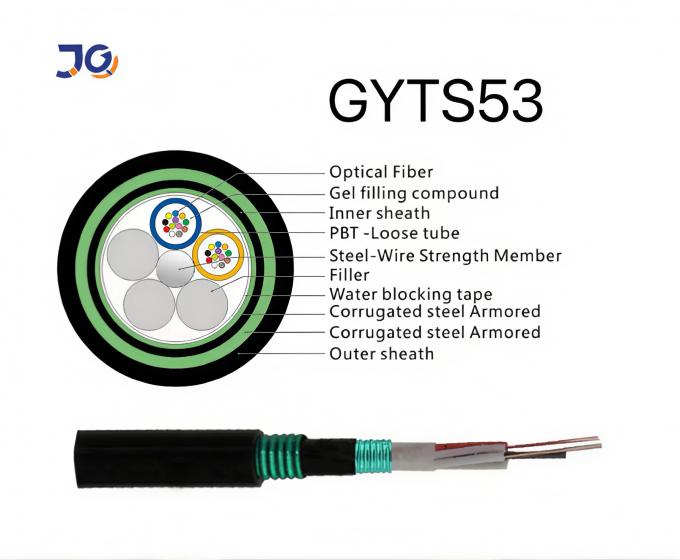

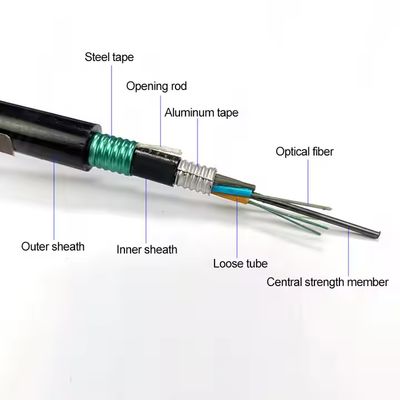

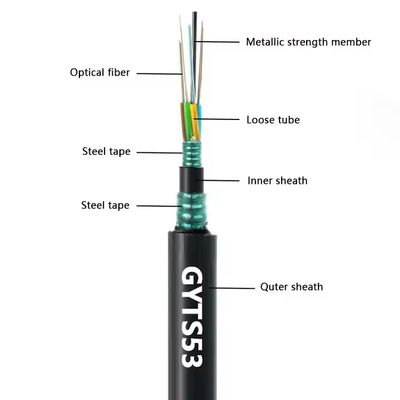

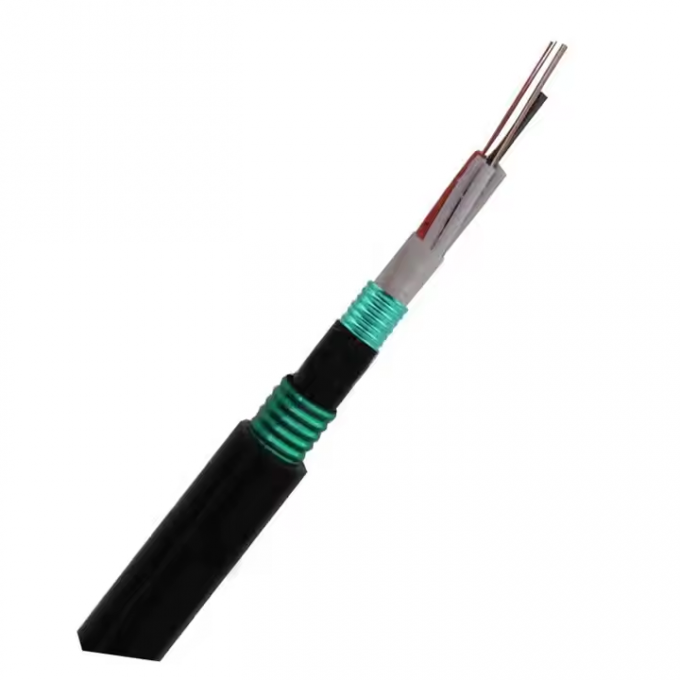

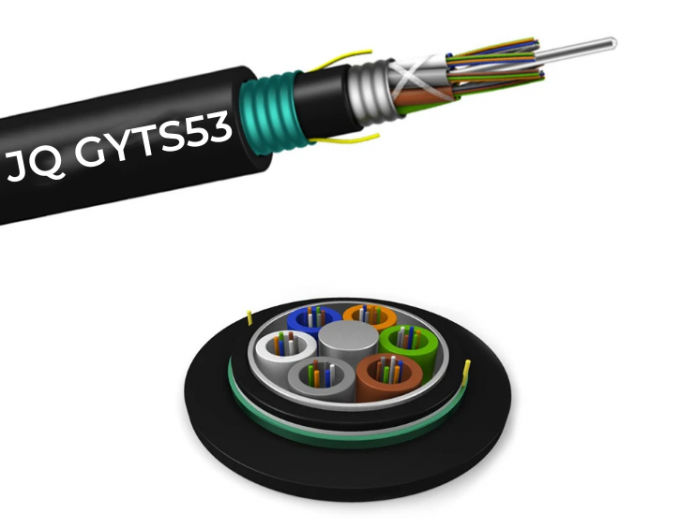

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circularcable core.
The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress.
The cable is completed with a PE sheath.

GYTS53-96B1.3

Specification

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	12.7	173	6	6	3000	1000	3000	1000
38~72	13.9	211	12	6	3000	1000	3000	1000
74~96	15.5	251	12	8	3000	1000	3000	1000
98~120	17.2	299	12	10	3000	1000	3000	1000
122~144	18.8	345	12	12	3000	1000	3000	1000
>144	Available upon customer’s request

Corrugated steel tape	--	YES
Central Strength Member	--	Steel Wire
Tension Strength (Long/Short Term)	N	1000/3000
Crush Resistance (Long/Short Term)	N/100mm	1000/3000
Min. Bending Radius	Short Term	10 times Cable Diameter
Min. Bending Radius	Long Term	20 times Cable Diameter
Storage/Operating Temperature	Operation	-40℃ to 60℃
Application	--	Long-distance Communications

Note:This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

Application

1.Duct

2.Aerial

3.Direct burial

Why Choose Us

1. Each step in the production process will perform quality inspection. From raw material to the entire production process, we have established a comprehensive quality management system.

2. We are engaged in OEM ,OBM and ODM businesses, and we will offer the most favorable factory price.

3.Our customer service representatives are available 24 hours a day,so that they can reply to you promptly and accurately.

4.We provide 25 years warranty for our products.

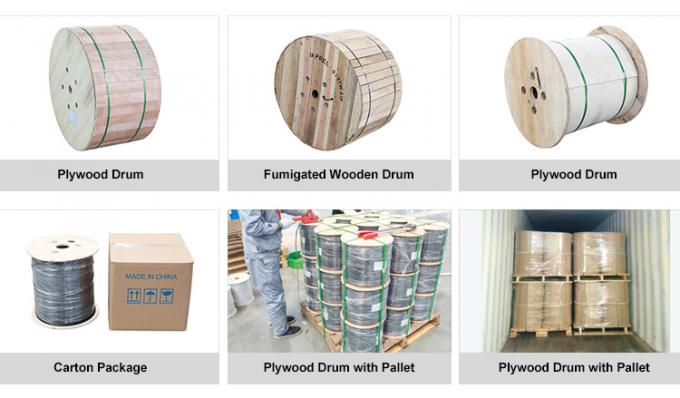

Different on package

1.clear print character

Others

2.unique design

3.sturdy package

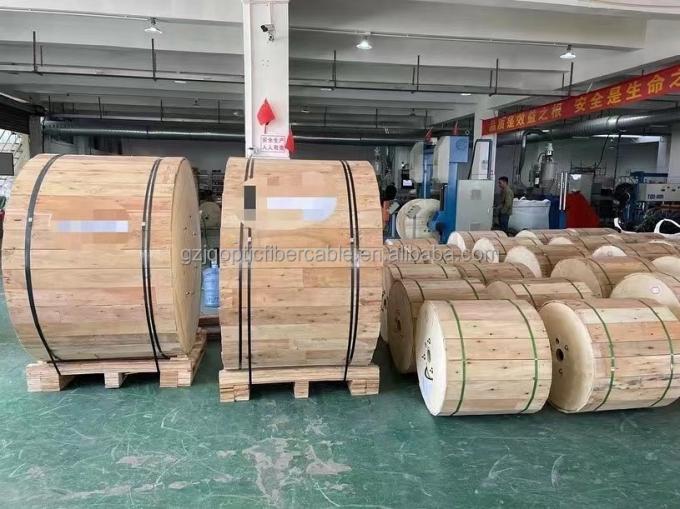

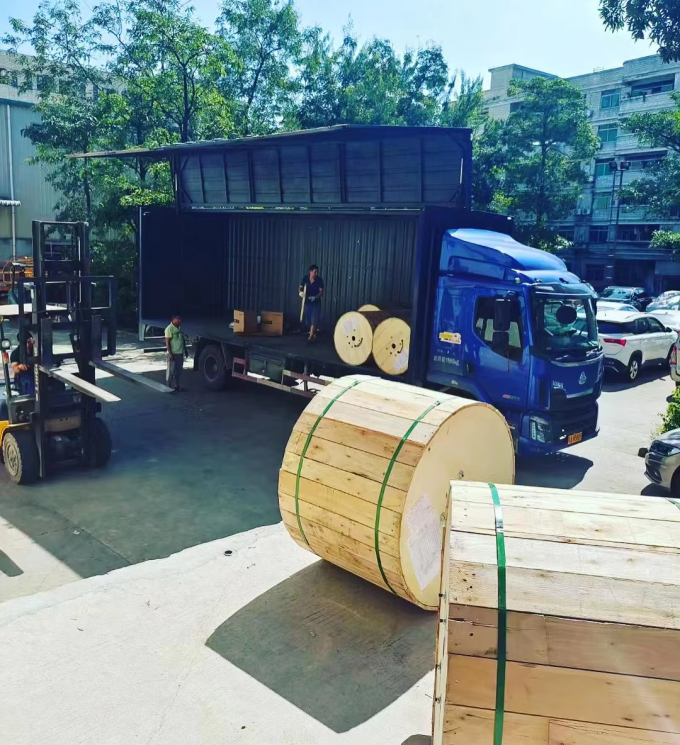

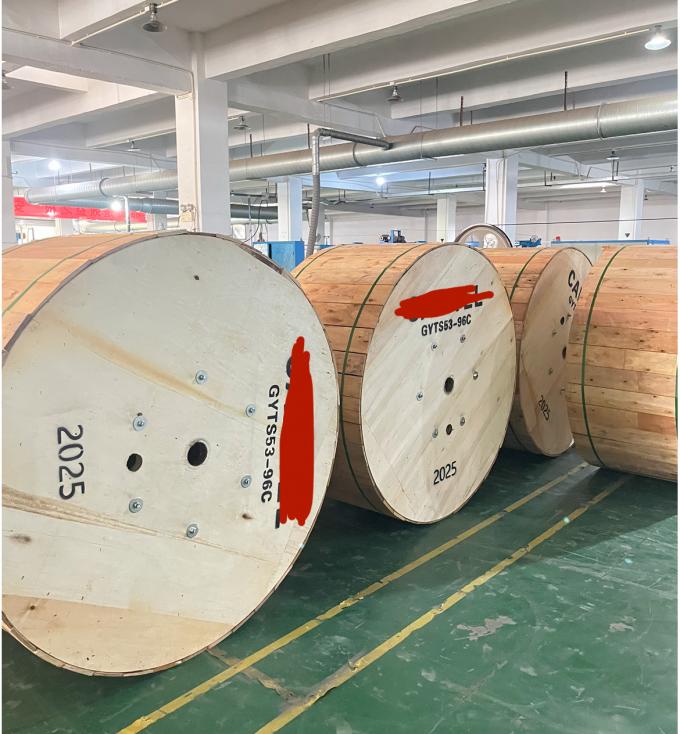

Packing & Delivery

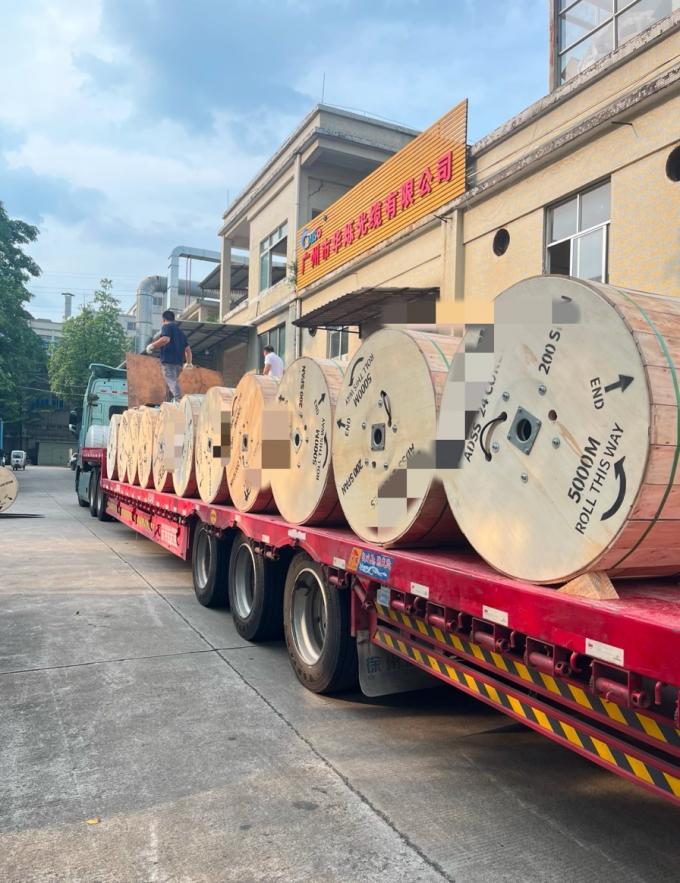

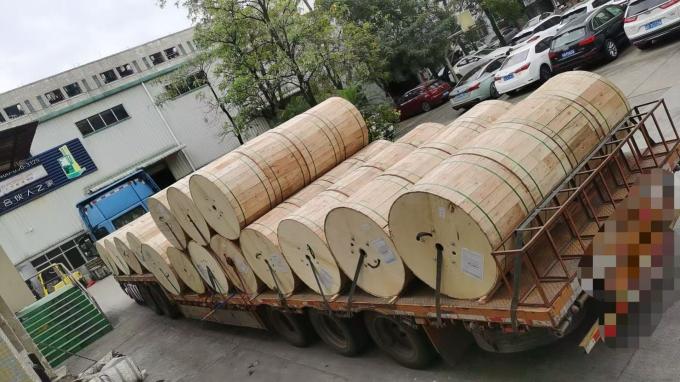

Shippment:freight transport, sea freight,land transport,air freight.

Company Profile

Guangzhou jiqian fiber optic cable Co.,Ltd (Guangzhou haiso fiber optic cable co.,ltd) is a fiber optic communication manufacturer that started in 2011 is located at Guangzhou city ,and provides a professional fiber optic cable design and after-sales service for all over the world. Our team full of spirituality and vitality, bloody and soulful!! For the cutsomer to the colleague must be the customer's service!! All of our encounters are sincere links heart to heart! Our advantage, with a history of over 10years, 5years export experience, ship to more than 30countries, more than 40 employees. Choosing JQ is not only our success,not only yours!!!

02:36

1. Are you the manufacturer or trader ?
A:We are manufacturer

2.Where is your factory located?
A:Our factory located in the famous manufacturing city of the world, Guangzhou. We cordially welcome you to visit and enjoy our
excellent service.

3. Product quality guarantee period?
A:25 years’ guarantee for fiber optic cable

4.Can you accept small order?
A:Yes, small order is available. We support new project of our customers as we know business is always from small order.

5. Can I print my own logo on your products?
A:Yes, of course. OEM is acceptable if the quantity can reach MOQ. We also provide ODM service based on customer’s requirement.

Quickly contact with me,the Qty is limited.
