Product Description
12 Core Outdoor Single Mode SM 9/125 G652D ADSS Fiber Optic Cable
What is ADSS Cable?
ADSS (All-Dielectric Self-Supporting) cable is a fully non-metallic fiber optic cable where the tensile strength is provided by integrated elements like aramid yarns or stranded glass reinforced plastic rods within the cable’s circular design. Fibers are typically housed in polymer tubes protected by the cable structure. ADSS cables are suitable for both distribution and transmission lines, including live-line installations. Without needing a separate support wire, installation is simplified and cost-effective with a single pass.
Advantages of ADSS
ADSS cables are lightweight and have a small diameter, reducing the load on towers and poles. Their robust design resists moisture and chemical damage, making them ideal for outdoor overhead deployments. The cables support a broad transmission range and can last up to 30 years once installed.
Applications
-
Power utilities, telecom operators, railways, and private networks
-
Suitable for installation on both distribution and transmission lines
-
Can be installed near electrical conductors
-
Ideal for underbuilt installations requiring minimal service interruptions
-
Perfect for telecom networks prioritizing fast and low-cost deployment
-
Suitable for FTTX solutions like FTTH (Fiber to the Home)
Standards
ADSS cables meet IEEE P 1222 and IEC 60794-1 standards.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 6 |
1+5 |
6 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 8 |
1+5 |
4 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 12 |
1+5 |
6 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
9.8 |
85 |
95 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
10.0 |
88 |
98 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
10.5 |
98 |
108 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
12.0 |
122 |
135 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
15.2 |
176 |
189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 6 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 8 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 12 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.0 |
128 |
138 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.5 |
130 |
140 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
13.2 |
145 |
155 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
14.5 |
185 |
195 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
16.5 |
212 |
228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type
|
Attenuation
(+20℃)
|
Bandwidth
|
Optical cable cut-off wavelength
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
| G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
≤1260nm |
| G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
≤1450nm |
| 50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
| 62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
---
|
Details picture shows

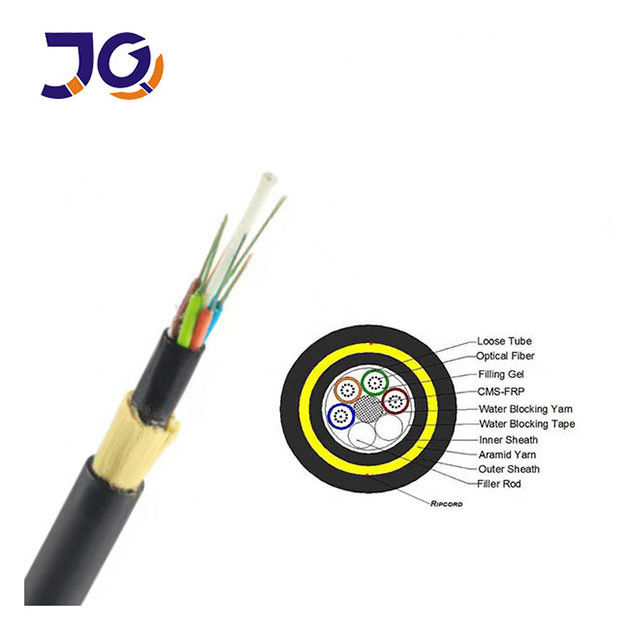

single jacket ADSS fiber cable

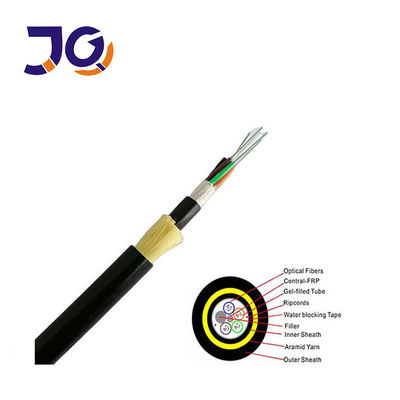

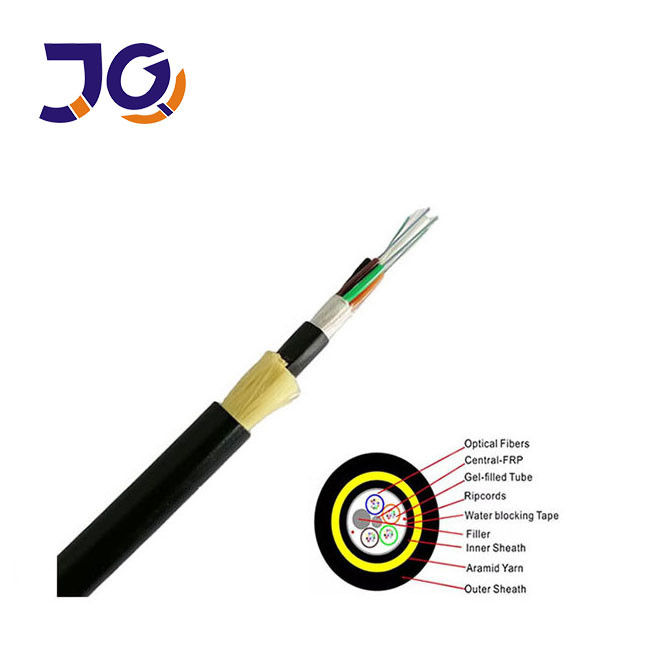

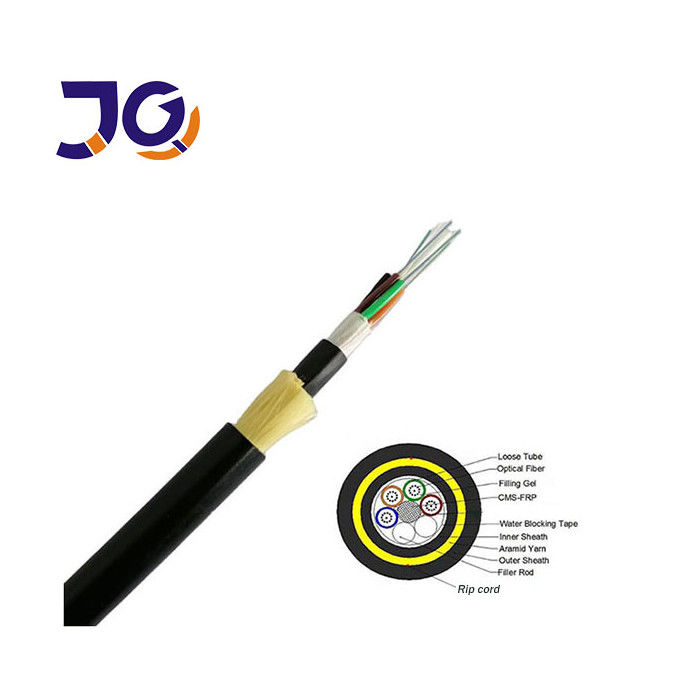

double jacket ADSS fiber optic cable
Packing:
FAQ
1. Are you a trading company or manufacturer?
We are a manufacturer with 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou—welcome to visit us!
2. How is the product quality?
Every fiber is tested before shipment to ensure quality. After price confirmation, you can request free samples to check for yourself.
3. Do you accept small orders?
Yes, small orders are accepted. We support new projects because every business starts small.
4. What is the delivery time?
Delivery usually takes 3–7 working days, depending on the order size. We will arrange shipment promptly after receiving your payment.
5. Do you offer OEM services?
Yes, OEM is welcome. We can print your logo on the products and customize based on your ideas.
