Indoor FTTH Fiber Optic Drop Cable – G657A2 Single Mode, 1/2 Core, 3.0mm, LSZH, High Strength for Home Network
Description

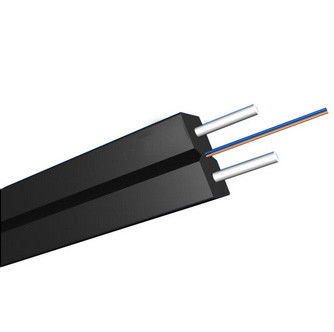

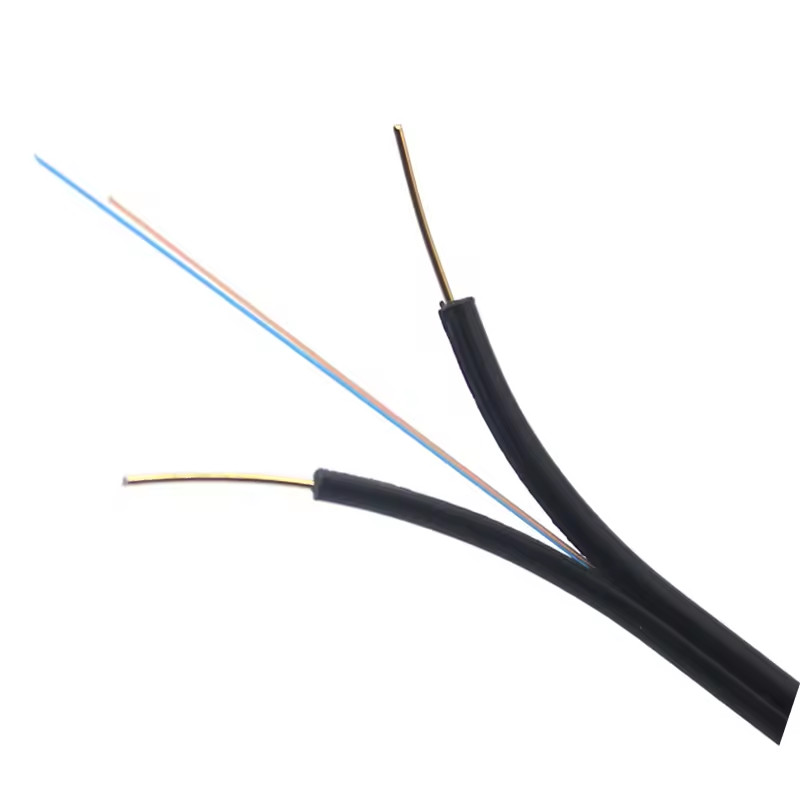

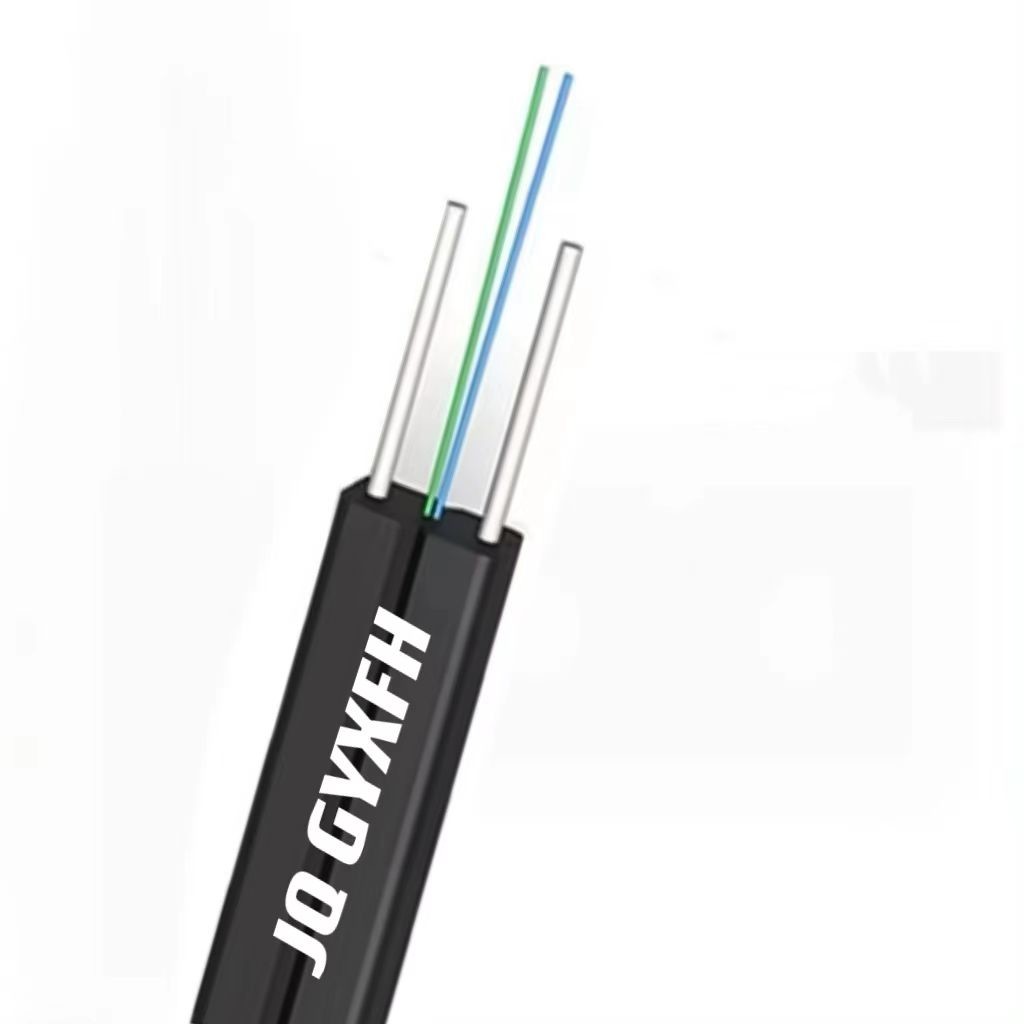

The optical fiber unit is located at the center, with two parallel Fiber Reinforced Plastics (FRP) on both sides for strength. The cable is finished with a black or white LSZH sheath.
Features
-
Low-bend-sensitivity fiber delivers high bandwidth and superior transmission performance
-
Dual parallel strength members provide excellent crush resistance and protect the fiber
-
Lightweight, compact design for easy handling and installation
-
Innovative flute design enables quick stripping and splicing, reducing installation time
-
LSZH sheath is low-smoke, halogen-free, and flame-retardant
Application:
- Used in indoor cabling, especially used for FTTH
- Used as access building cable
There are twelve fiber color code.They are A grade fiber.
Fiber Characteristic:
| Cable code |
Fiber
Count
|
Cable diameter
mm
|
Cable
weight
Kg/km
|
Tensilse
Strength
Long/Short term
N
|
Crush
Resistance
Long/Short term
N
|
Bedning
Radius
Dynamic/Static
mm
|
| GJXFH-1 |
1 |
(2.0±0.2)×(3.0±0.2) |
8 |
30/60 |
300/1000 |
15/30 |
| GJXFH-2 |
2 |
(2.0±0.2)×(3.0±0.2) |
8.5 |
30/60 |
300/1000 |
15/30 |
| GJXFH-4 |
4 |
(2.0±0.2)×(3.0±0.2) |
10 |
30/60 |
300/1000 |
15/30 |
| GJXH-1 |
1 |
(2.0±0.2)×(3.0±0.2) |
9 |
30/60 |
300/1000 |
15/30 |
| GJXH-2 |
2 |
(2.0±0.2)×(3.0±0.2) |
9.5 |
30/60 |
300/1000 |
15/30 |
| GJXH-4 |
4 |
(2.0±0.2)×(3.0±0.2) |
10 |
30/60 |
300/1000 |
15/30
|
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FAQ
Q1: Are you a factory or a trading company?
We are a manufacturer.
Q2: What is your minimum order quantity (MOQ)?
Our MOQ for fiber optic cable is 1 km.
Q3: Which fiber brands do you use?
We use well-known brands such as YOFC and FiberHome.
Q4: Do you accept small orders?
Yes, we welcome small orders and support new projects, as we understand that businesses often start small.
Q5: What is your delivery time?
Generally 3–5 working days after order confirmation, depending on the order quantity.
Q6: Do you offer customized products and logos?
Yes, OEM service is available.
Q7: What are your payment terms?
We accept T/T, L/C, and Western Union. A 30% deposit is required, with the remaining 70% due before shipment.
