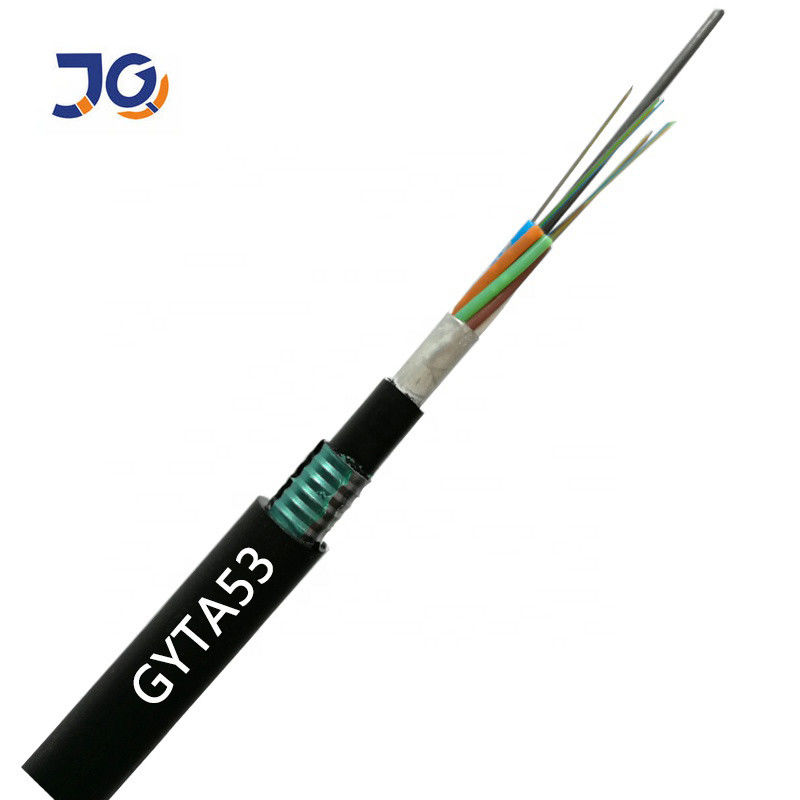

GYTA53 Armored Fiber Optic Cable – Underground Direct Burial, Double Jacket, 4–144 Cores

Product Description

Applications of GYTA53 Fiber Optic Cable

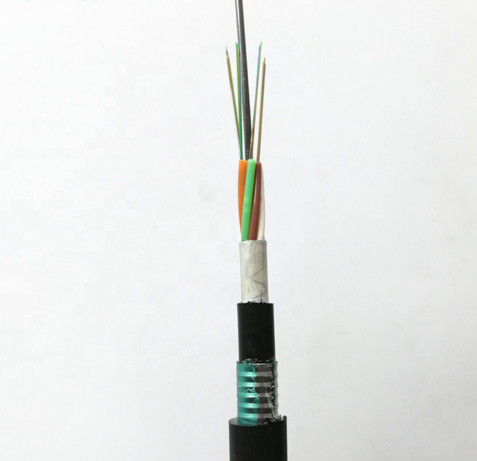

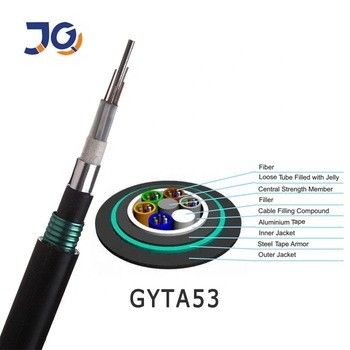

The GYTA53 cable, armored with corrugated steel tape and aluminum tape and protected by a double sheath, is designed for harsh environments where strong mechanical protection is required. It is ideal for direct burial installations, as well as duct applications where resistance to rodents and moisture is essential.

Typical Applications:
♦ Installation method: Direct burial
♦ Long-haul communication, local trunk lines, CATV, and computer network systems

Conclusion
GYTA53 is a robust and reliable fiber optic cable widely adopted in the market for its durability and performance in demanding conditions. With growing demand, it is expected to play an increasingly important role in the communication industry. Its proven resistance to pressure, moisture, and external impacts makes it highly suitable for critical infrastructure projects.





Fiber Optic G652D



Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100



Company Profile

Headquartered in Guangzhou, China – strategically located with convenient access to ports and logistics.

Over 12 years of manufacturing expertise in fiber optic cables, with a focus on quality and innovation.

Certified to CE, RoHS, FCC, and ISO9001 standards, ensuring compliance with international quality and safety requirements.

Global market presence – our products are exported to Asia, Europe, the Americas, Africa, and the Middle East.

OEM & ODM services available, offering customized cable designs and branding to meet diverse customer needs.

Strong reputation for reliable products, competitive pricing, and responsive technical support.



Exhibition



Certification:





FAQ

Are you a manufacturer?
Yes, we are a factory with over 10 years of experience.

What is your fiber brand?
Our brand is Jiqian.

Do you provide samples?
Yes, samples are free; customers only need to cover freight costs.

Can I place a small order?
Yes, small or trial orders are welcome, especially for new projects.

What is the warranty period?
25–30 years for outdoor fiber optic cables.

Which certifications do you have?
ISO9001, FCC, RoHS, and CE.

What is the delivery time?
Normally 5–7 working days, depending on quantity.

What payment methods do you accept?
T/T, L/C, and Western Union.

Do you provide customized products and logo service?
Yes, OEM & ODM are available. Just send us your design or drawing.
