Anti-Rodent Fireproof Mining Fiber Optic Cable MGTSV
Product Description

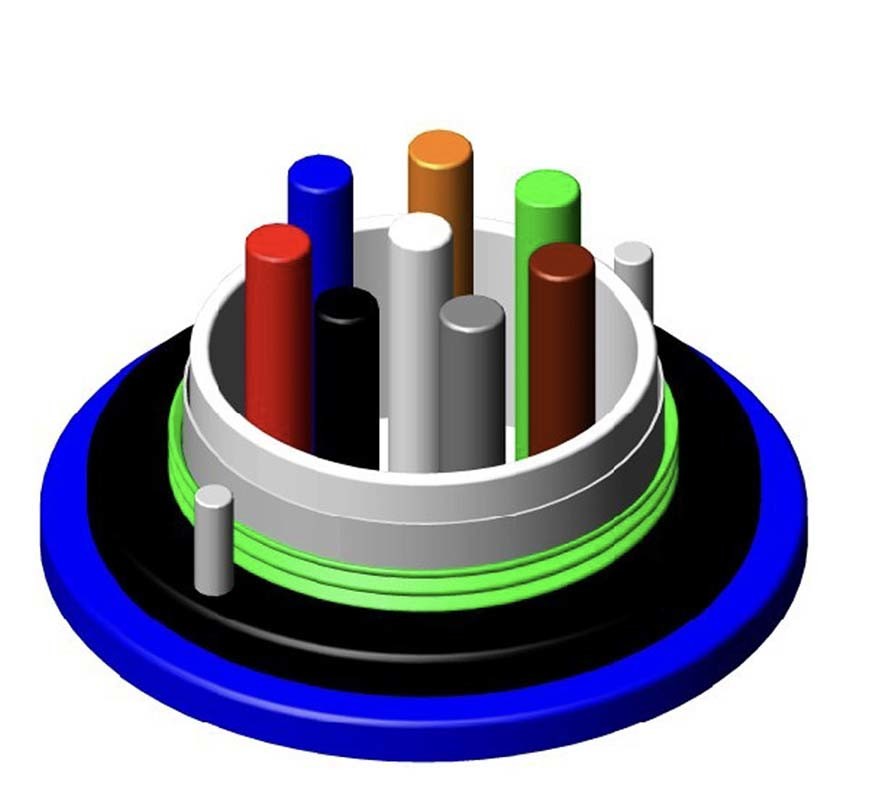

The MGTSV mining flame-retardant fiber optic cable is designed with 250μm fibers housed in loose tubes made of high-strength material, filled with waterproof gel for fiber protection. The cable core uses a central metal strength member, and for some models, an additional PE layer is extruded for reinforcement. Loose tubes and filler ropes are stranded around the central core, with water-blocking compound filling the gaps to ensure compact structure and moisture resistance.
A double-sided PSP (plastic-coated steel tape) is applied for enhanced mechanical strength and anti-rodent protection. The inner sheath is made of PE, while the outer sheath adopts a blue flame-retardant PVC layer for fire resistance and durability.
Certified by Coal Safety Production Supervision authorities, the MGTSV cable meets strict safety requirements for coal mine communications, ensuring reliable operation during accidents and minimizing loss.
Key Features
-
Excellent mechanical and thermal stability.
-
Loose tube structure with strong water resistance and high strength.
-
Fiber protected by special filling gel for long-term reliability.
-
High pressure resistance and durability.
-
PSP steel tape enhances moisture resistance and rodent protection.
-
Blue flame-retardant PVC outer sheath ensures effective fire resistance.
Applications
-
Coal mines, gold mines, iron mines, and other underground mining environments.
-
Flame-retardant communication networks in high-safety requirement areas.
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
Fiber
Count |
Diameter
(MI) |
Weight
(KG/KMI) |
Min.Bend Radius |
Mlin.Tension
(N) |
Crush
(N/100MMl) |
| Static |
Dynamic |
Long Term |
Short Term |
Long Term |
Short Term |
| 2-30 |
11.5 |
245 |
10
Times
Diameter
|
20
Times
Diameter
|
4000 |
10000 |
3000 |
5000 |
| 32-36 |
11.8 |
252 |
4000 |
10000 |
3000 |
5000 |
| 38-60 |
12.5 |
275 |
4000 |
10000 |
3000 |
5000 |
| 62-72 |
12.8 |
285 |
4000 |
10000 |
3000 |
5000 |
| 74-96 |
13.5 |
295 |
4000 |
10000 |
3000 |
5000 |
| 98-120 |
14.8 |
305 |
4000 |
10000 |
3000 |
5000 |
| 122-144 |
15.6 |
315 |
4000 |
10000 |
3000 |
5000 |
| 146-216 |
17.5 |
345 |
4000 |
10000 |
3000 |
5000 |
| 218-240 |
18.8 |
365 |
4000 |
10000 |
3000 |
5000 |
| 242-288 |
20.5 |
395 |
4000 |
10000 |
3000 |
5000 |
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

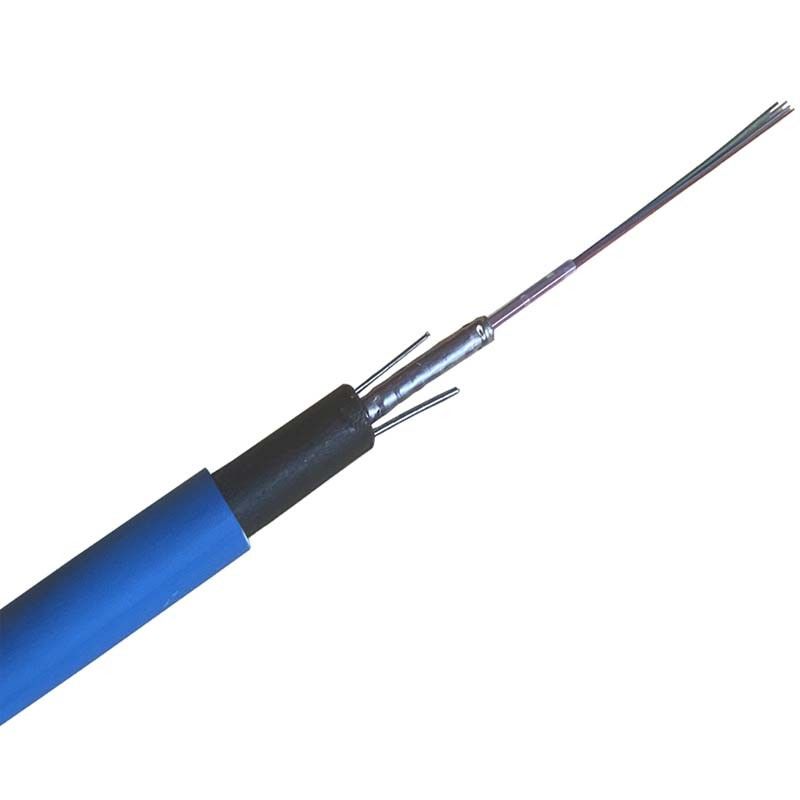

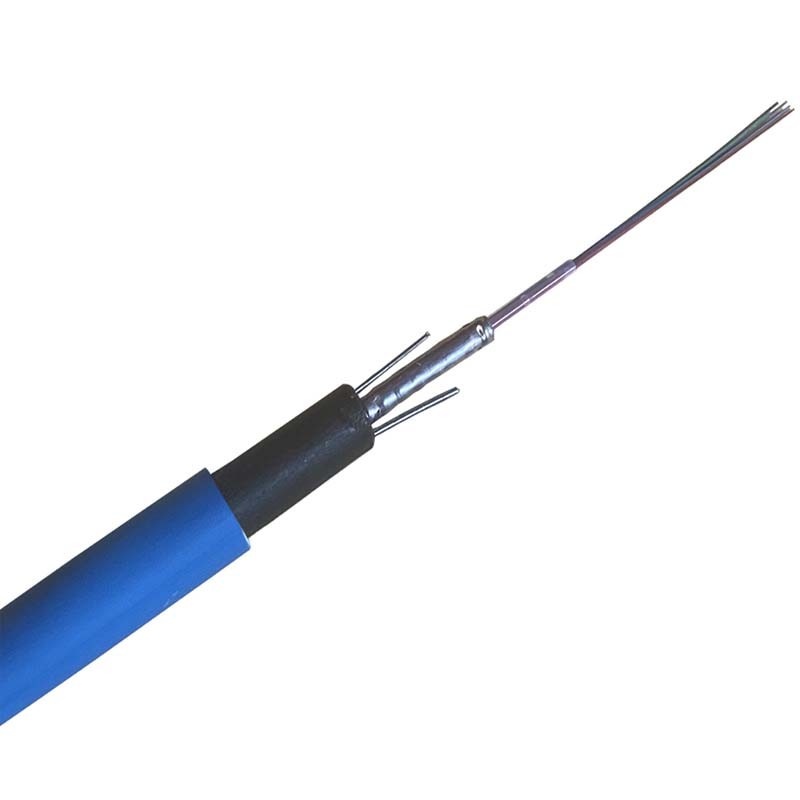

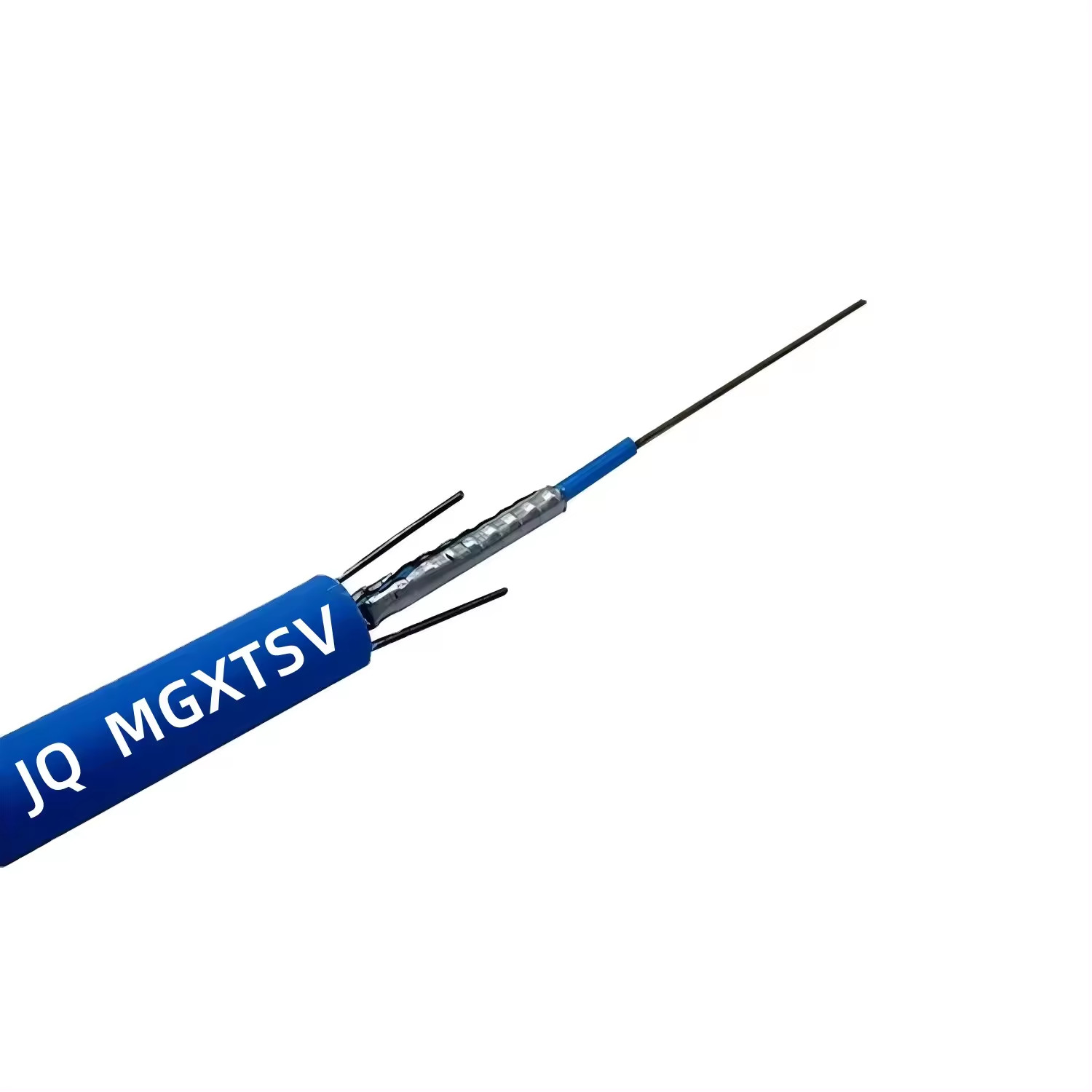

Detail product pictures
Mining application
factory shows
FAQ
Q1: What is the warranty for your products?
A: We provide a 10-year warranty with lifetime maintenance support.
Q2: Do you offer OEM services?
A: Yes, we can customize with your logo or label on both products and packaging.
Q3: Can I get free samples?
A: Yes, free samples are available from our company.
Q4: Are you a factory or trading company?
A: We are a professional manufacturer specializing in fiber optic cables, including ADSS, MPO breakout cables, and patch cords. Our products are widely exported to Europe, South America, and other regions.
Q5: What are your main products?
A: Outdoor fiber optic cables (GYTA33, GYXTC8Y, ADSS, GYTA, GYFTS, ASU, GYXTW), indoor fiber optic cables, and FTTH drop cables.
Q6: Do you have certification for raw materials?
A: Yes, we work with ISO9001 and RoHS certified raw material suppliers for reliable quality.
