Factory Direct Price: Single Mode ADSS Optical Fiber Cable with Aramid Yarn
What is ADSS Cable?
ADSS (All-Dielectric Self-Supporting) cable is a non-metallic fiber optic cable designed for aerial installation on utility poles and power lines. With its dielectric structure, it can be safely deployed in high-voltage environments while providing reliable self-support without the need for messenger wires. It is a cost-effective alternative to OPGW and OPAC cables.

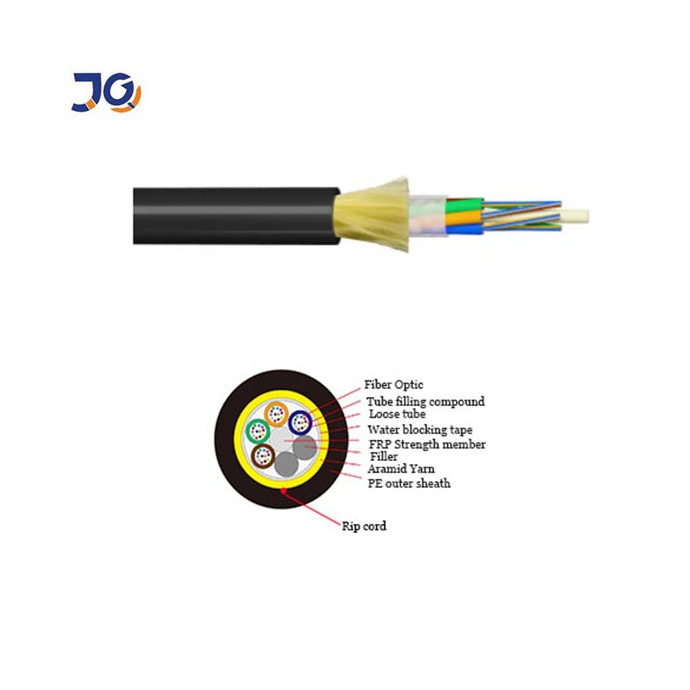

Structure & Design
This cable adopts a stranded loose tube design with fibers protected in water-blocking gel. A central FRP strength member ensures stability, while aramid yarn layers provide high tensile strength. The outer sheath is available in PE or AT materials, depending on voltage requirements.
Key Features
-
Non-Metallic: Safe for live-line installation with no risk of conductivity.
-
Easy Installation: Self-supporting design eliminates the need for extra support wires.
-
High Strength: Aramid yarn reinforcement ensures excellent tensile and weather resistance.
-
Stable Performance: Withstands mechanical stress and temperature variations.
-
Customizable: Configurations tailored for different spans and applications.
Applications
-
PE Sheath: Suitable for power lines below 110kV.
-
AT Sheath: For power lines ≥110kV, offering anti-tracking protection.
-
Span length and yarn content can be customized for project requirements.
Standards
Manufactured in accordance with IEEE P1222 and IEC 60794-1 standards.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 6 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 8 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 12 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
80 |
90 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
9.8 |
85 |
95 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
10.0 |
88 |
98 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
10.5 |
98 |
108 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
12.0 |
122 |
135 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
15.2 |
176 |
189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 6 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 8 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 12 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.0 |
128 |
138 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.5 |
130 |
140 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
13.2 |
145 |
155 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
14.5 |
185 |
195 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
16.5 |
212 |
228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type
|
Attenuation
(+20℃)
|
Bandwidth
|
Optical cable cut-off wavelength
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
| G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
≤1260nm |
| G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
≤1450nm |
| 50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
| 62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
---
|
Details picture shows

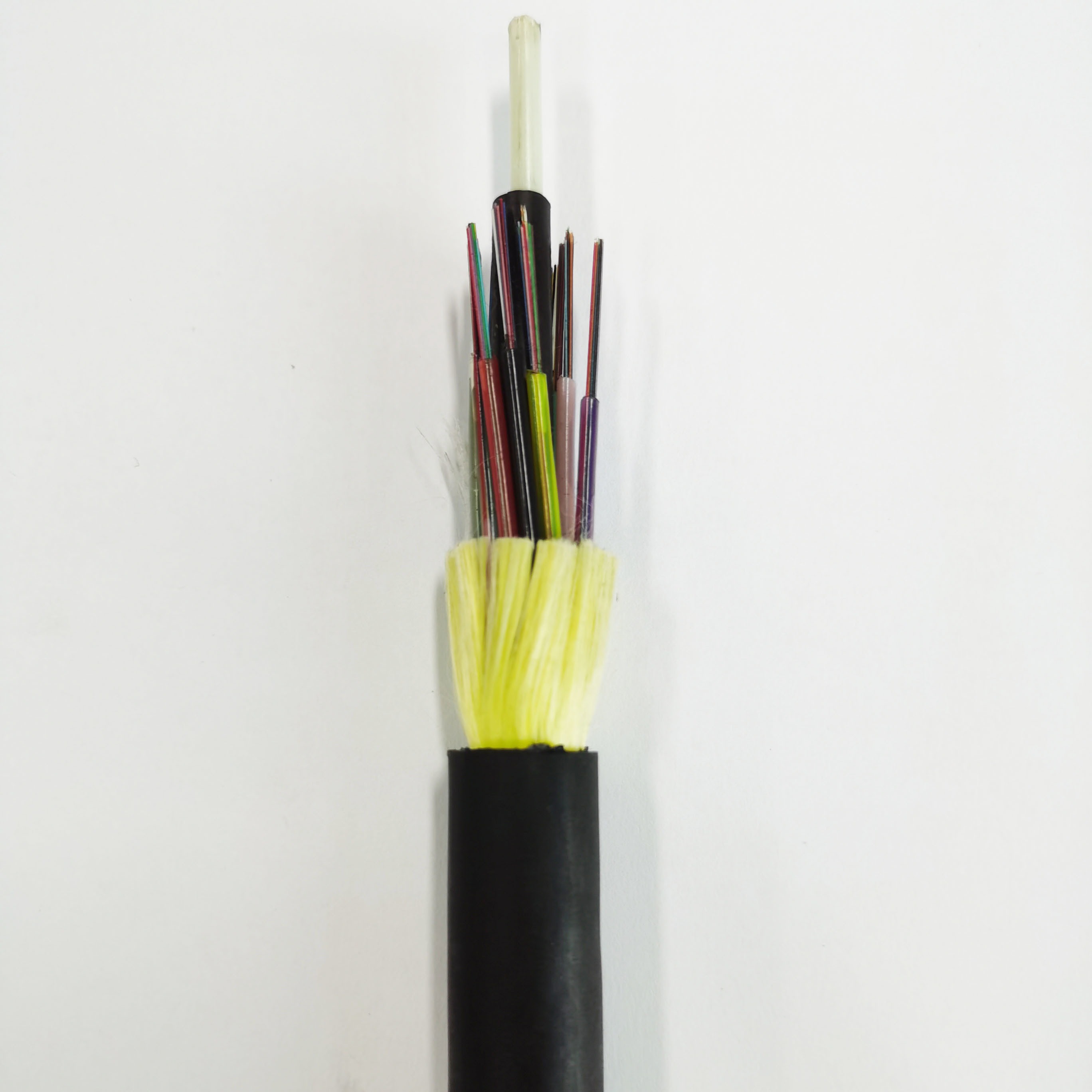

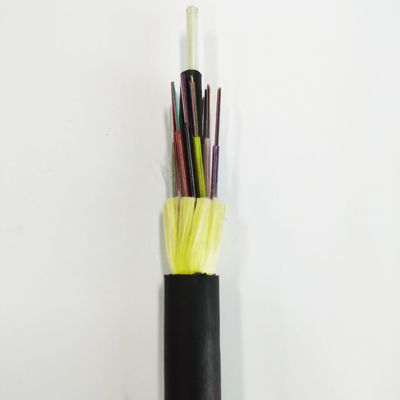

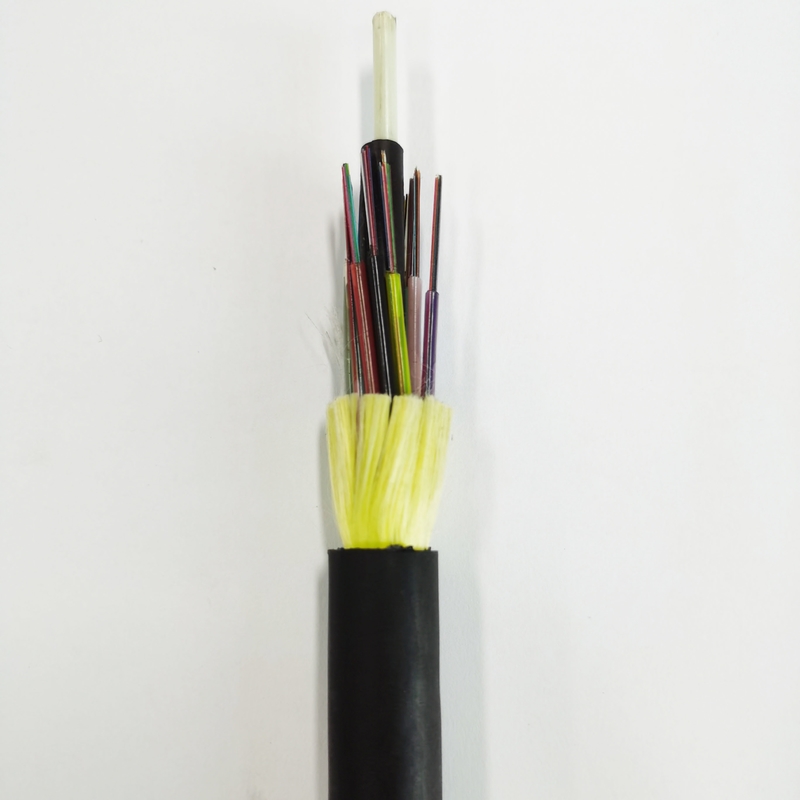

single jacket ADSS fiber cable

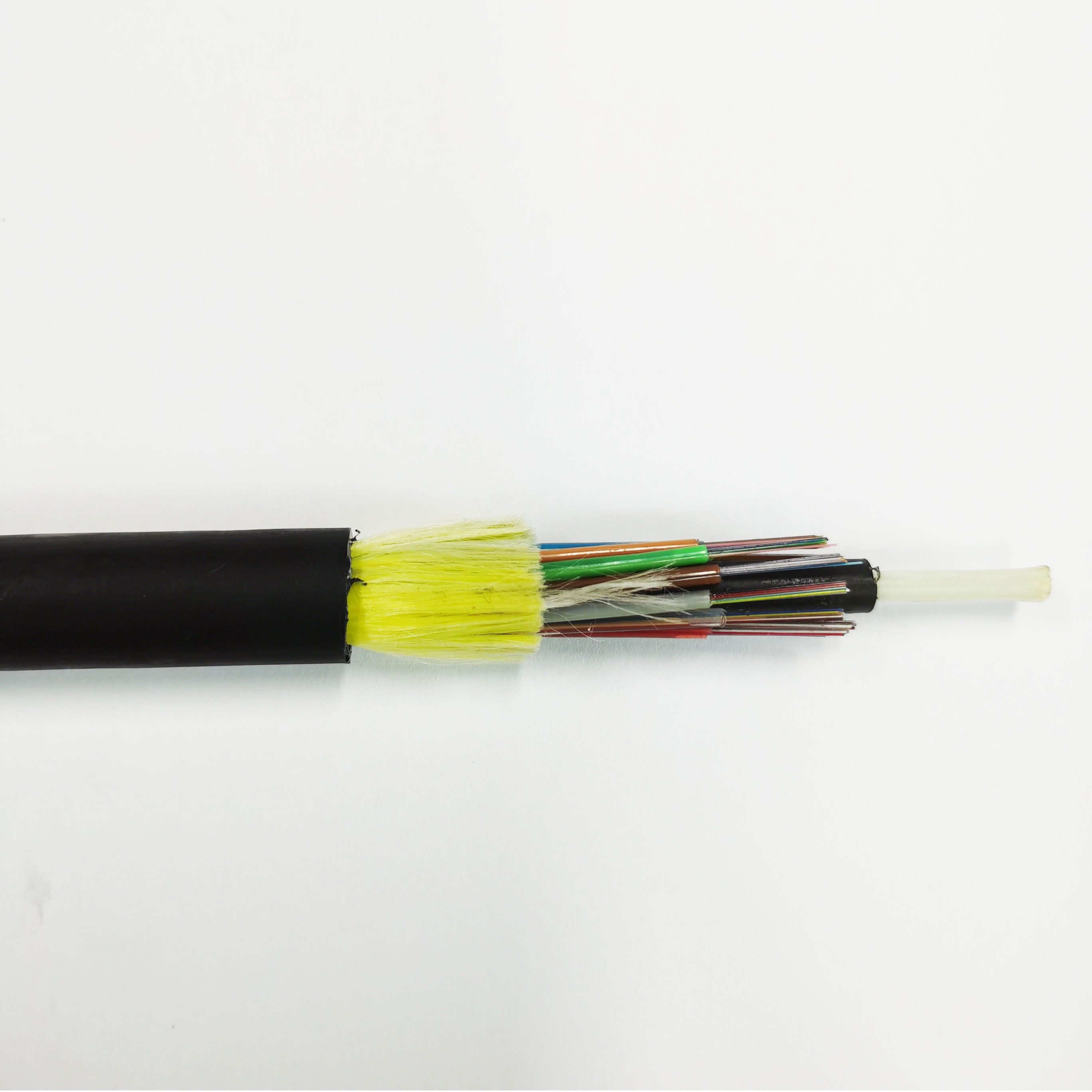

double jacket ADSS fiber optic cable
Packing:
FAQ
Are you a manufacturer or trading company?
We are a professional manufacturer with 10+ years of experience in fiber optic cables, drop cables, patch cords, and related products. Our factory is in Guangzhou, and you are welcome to visit.
How do you guarantee product quality?
Quality is our priority. Each fiber undergoes strict testing and final inspection before shipment. After confirming the price, we can provide free samples for quality verification.
Can I place a small order?
Yes. We support small and trial orders, especially for new projects.
What is your lead time?
Generally 3–7 working days, depending on order quantity. We ensure fast shipment after payment.
Do you provide OEM service?
Yes. We can add your logo and customize products according to your requirements.
Are your materials certified?
Yes. We source from suppliers with ISO9001 and RoHS certifications to guarantee reliable quality.
