GJFJV 8Core G657A2 Tight Buffer Loose Tube Fiber Optic Cable Kevlar LSZH Jacket 09mm

1KM
MOQ
GJFJV 8Core G657A2 Tight Buffer Loose Tube Fiber Optic Cable Kevlar LSZH Jacket 09mm
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou China
Brand Name: Jiqian/Customize
Model Number: GJFJV
Number Of Fiber: 1/4/12/24/48
Sheath/Jacket: LSZH/PVC
Application: Telecommunication/Data Center/FTTH
Port: Guangzhou/shenzhen
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Highlight:

8Core G657A2 fiber optic cable

,

tight buffer loose tube fiber

,

LSZH jacket indoor fiber cable
Basic Infomation
Place of Origin: CHINA
Brand Name: Jiqian/Customize/ OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GJFJV
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000KM/month
Product Description

12-Core Multimode GJFJV Tight Buffer Cable (Indoor)

Overview

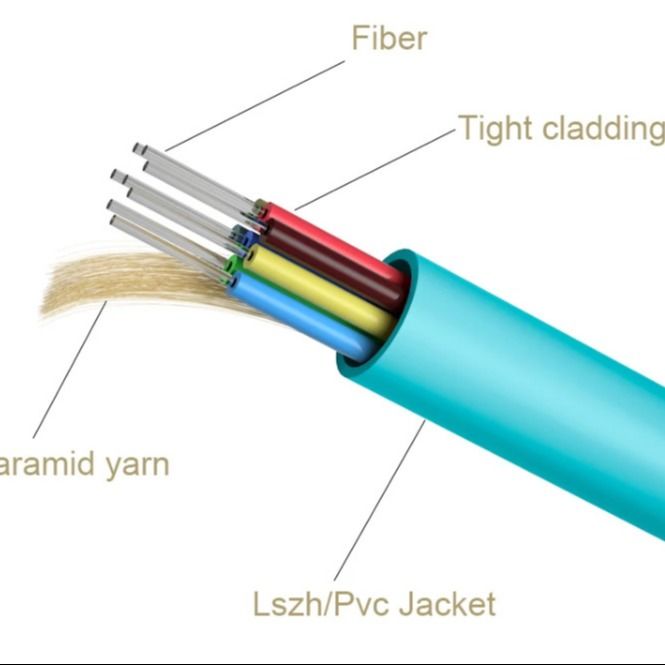

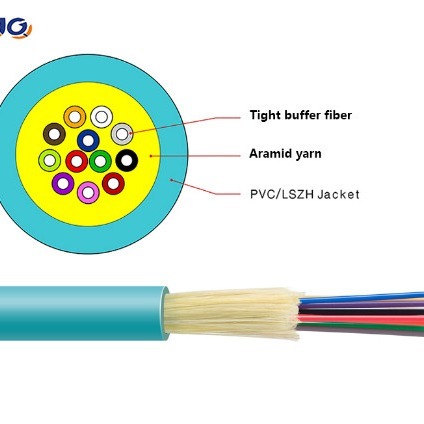

Indoor distribution cable with 900μm/600μm flame-retardant tight-buffered multimode fibers. Features aramid yarn reinforcement and PVC/LSZH jacket for safety and strength. Delivers top mechanical/optical performance via premium materials and precision tools.

Key Features

  • Strong mechanical/environmental resistance
  • Flame-retardant per standards
  • Durable, flexible jacket for easy install/splice
  • High-bandwidth data support
  • Adaptable to market needs

Applications

  • Pigtails/patch cords
  • Equipment links
  • Indoor/outdoor distribution
  • Optical rooms/frames



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHz-km



2200MHz-km







@1300nm







21000MHz-km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.015NA



Cable Cut-off Wavelength λcc







≤1260nm





Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight



 Minimum
allowable Tensile
Strength(N)

    Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60

4

 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60





Product Detail

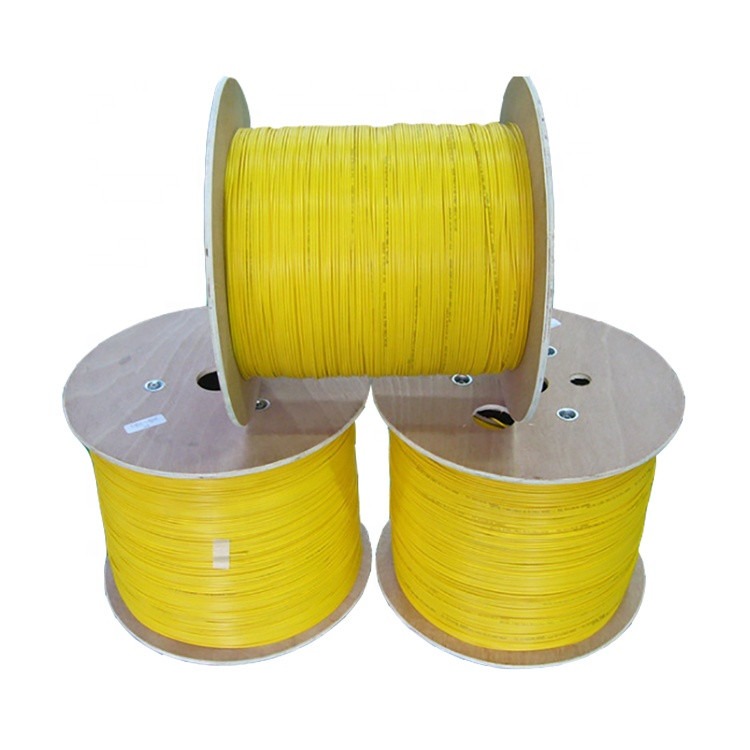

GJFJV 8Core G657A2 Tight Buffer Loose Tube Fiber Optic Cable Kevlar LSZH Jacket 09mm 0



GJFJV 8Core G657A2 Tight Buffer Loose Tube Fiber Optic Cable Kevlar LSZH Jacket 09mm 1



FAQ

  • Why Choose Us?
    • Expert factory with minimal MOQ and no-cost samples
    • Consistent quality paired with swift service
    • Affordable rates for optimal value
  • Do You Offer OEM/ODM? Yes, we embrace bespoke designs and specs.
  • Can We Add Our Logo? Certainly—logo application on goods and boxes is standard.
  • Shipping Options? Full range available: courier, ocean, road, and air transport.
  • Payment Options? L/C, T/T, Western Union, Alipay, and others welcomed.
  • Delivery Timeline? 3-7 business days typically, based on volume; ships right after payment.
