ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable
ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable
Contact Now

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable

Minimum Order Quantity : 1km Packaging Details : 2km/Wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, Western Union, T/T
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou China Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GJFJV

Detail Information
Name: Indoor Fiber Optic Cable Outer Sheath: PVC,PE,LSZH
Cable Type: Tight Buffer Fiber With Aramid Yarn Place Of Origin: Guangzhou China
Strength Material: Aramid Yarn Color: Orange,Yellow,Blue
Core: 2-48fiber Fiber Type: Multimode
Highlight:

6 core indoor fiber optic cable

,

24 core GJFJV optical cable

,

high performance multi mode fiber

Product Description

ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV



Multi-purpose Distribution Fiber Optic Cable
Uses 600µm or 900µm flame-retardant tight buffer fibers as the optical medium, wrapped with aramid yarn for strength, and completed with PVC or LSZH jacket. High-quality fibers and precise manufacturing ensure excellent performance for indoor optical communication.



Characteristics

  • Excellent mechanical and environmental performance

  • Flame retardant and standard-compliant

  • Flexible and easy to install and splice

  • High-capacity data transmission

  • Suitable for diverse market and client needs



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHz-km



2200MHz-km







@1300nm







21000MHz-km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.015NA



Cable Cut-off Wavelength λcc







≤1260nm





Cable diameter

  MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm



Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight



 Minimum
allowable Tensile
Strength(N)

Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60
4 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60



Application

1.Used in pigtails and patch cords

2.Used as interconnect lines of equipments.

3.Used in indoor and outdoor cabling, especially used as distribution cable

4.Used in optical connections in optical communication rooms and optical distribution frames



ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 0

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 1



Product Detail

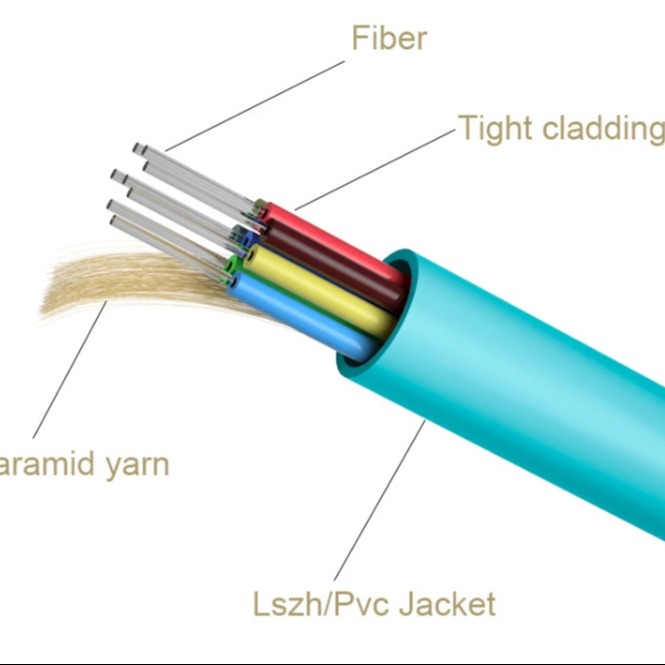

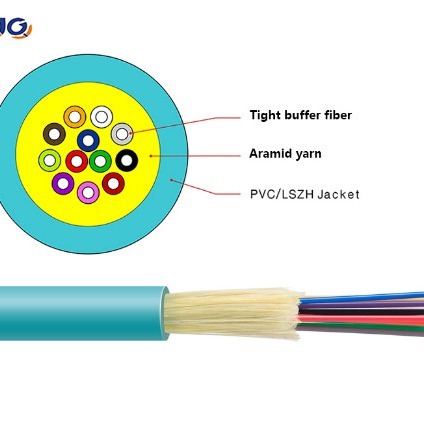

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 2

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 3

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 4

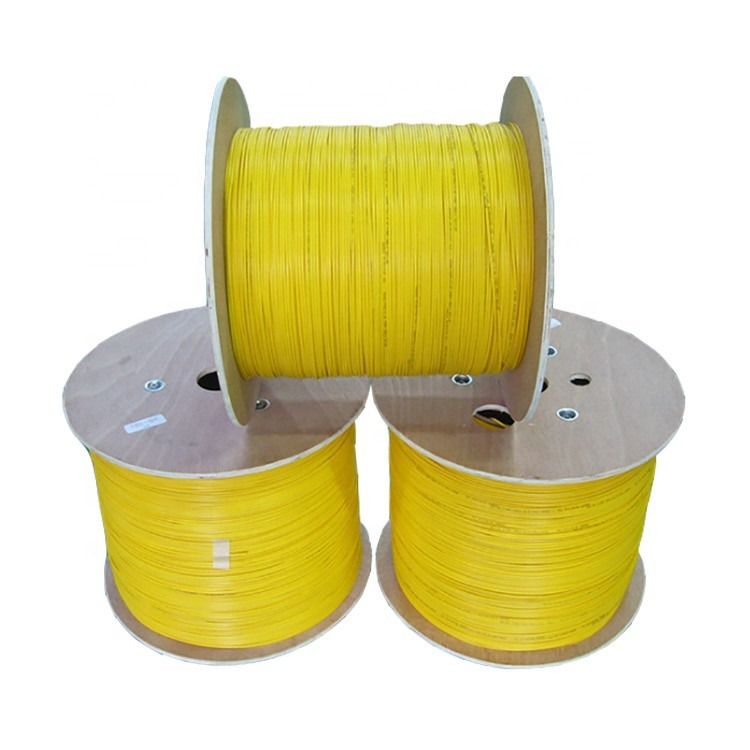

Packing

2km or customized length export wooden drum
