Home /Products/Indoor Fiber Optic Cable/GJFJV10 24 Core Multimode Indoor Fiber Optic Cable OM1 OM2 OM3 LSZH Gigabit Network

GJFJV10 24 Core Multimode Indoor Fiber Optic Cable OM1 OM2 OM3 LSZH Gigabit Network

1000m
MOQ
GJFJV10 24 Core Multimode Indoor Fiber Optic Cable OM1 OM2 OM3 LSZH Gigabit Network
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: OM3/G652D/G657A1/G655
Oem: Available
Operating Temperature: -20~70°C
Central Strength Member: Aramid Yarn/Kevlar Yarn
Material:: PVC/LSZH
Fiber Count: 12 24 48 Cores
Diameter: 2.2(outer/inner)
Fiber Brand: YOFC/Fiberhome/Fujikura/Corning
Highlight:

24 core multimode fiber optic cable

,

indoor fiber optic cable LSZH

,

OM3 gigabit network cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian/Customize/ OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GJFJV
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 2-4day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100km per 2 day
Product Description

OM1 OM2 OM3 4 Core 10 Gigabit Multimode GJFJV Fiber Optic Cable Indoor

Key Features

  • OM1 OM2 OM3 multimode fiber supports 10 Gigabit transmission

  • 4 core tight buffered fiber design for stable indoor communication

  • 900μm flame retardant tight buffer fiber for enhanced protection

  • Aramid yarn strength members provide excellent tensile strength

  • PVC or LSZH jacket with low smoke zero halogen flame retardant performance

  • Compact structure with good flexibility and easy installation

Application Scenarios

  • Indoor communication and building cabling systems

  • Data centers and server rooms

  • LAN and enterprise network infrastructure

  • Equipment room to equipment room connections

  • Patch panels and distribution frames


Technical Data
No. of cable
8
12
24
36
48
Fiber Model
OM3
Tight lines
Material
PVC/LSZH
Thickness(±0.03)mm
0.32
Diameter(±0.06)mm
0.9
Center Strength Member
Material
FRP
Diameter(±0.1)mm
—
—
—
0.5
0.5
Strength Member
Material
Aramid Yarn
Inner Sheath
Material
PVC/LSZH
Diameter(±0.1)mm
—
—
—
0.8
0.8
Colour
Aqua
Outer Sheath
Material
PVC
Thickness(±0.1)mm
0.9
1.0
1.0
1.5
1.5
Colour
Aqua
Cable Diameter(±0.2)mm
5.8
6.2
8.5
15.1
15.1
Cable Wetght(±5)kg/km
31
41
60
238
235
Attenuation
850nm
dB/km
≤2.5
1300nm
≤0.7
Bandwidth
850nm
MHz.km
≥3500
1300nm
≥500
Allowable Tensile Strength
Short Term
N
660
660
660
1320
1320
Long Term
200
200
200
660
660
Allowable Crush Resistance
Short Term
N/100mm
1000
1000
1000
1500
1500
Long Term
200
200
200
300
300
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

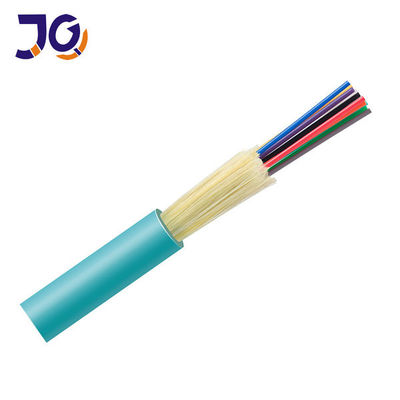

GJFJV10 24 Core Multimode Indoor Fiber Optic Cable OM1 OM2 OM3 LSZH Gigabit Network 0

Detailed Image

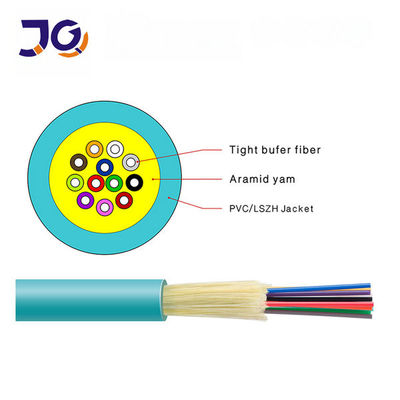

GJFJV10 24 Core Multimode Indoor Fiber Optic Cable OM1 OM2 OM3 LSZH Gigabit Network 1

Company Profile



Guangzhou Jiqian Fiber Optic Cable Co Ltd is a high tech manufacturer based in Guangzhou Guangdong China integrating research development production and sales. We specialize in fiber optic cables with 2 to 288 cores serving global communication networks.

FAQ

1. Are you a real manufacturer
Yes we are a factory located in Guangzhou China and factory visits are welcome.



2. What is your minimum order quantity
MOQ is 1 km. Trial orders are supported for new projects.



3. Can I get a sample
Yes free samples are available. You only need to pay the express cost.



4. What payment methods do you accept
We accept L C T T Western Union and PayPal.



5. What is your delivery time
Usually 3–7 working days depending on order quantity.



6. Do you offer customized products and logo
Yes OEM and ODM services are available.
