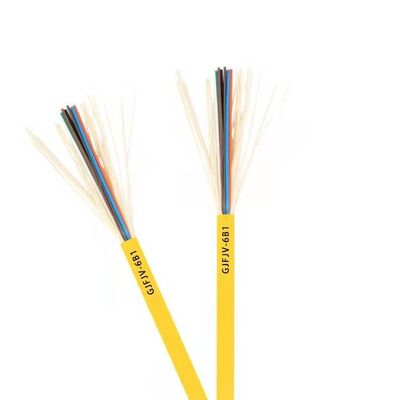

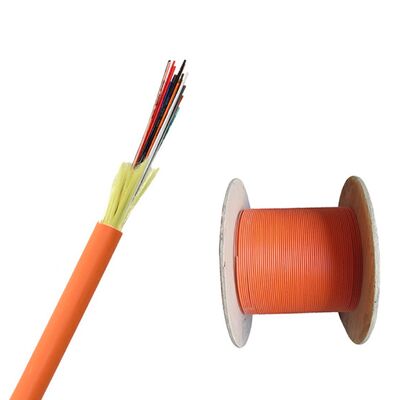

GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable

1km
MOQ
GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Indoor Fiber Optic Cable
Outer Sheath: PVC,PE,LSZH
Cable Type: Tight Buffer Fiber With Aramid Yarn
Place Of Origin: Guangzhou China
Strength Material: Aramid Yarn
Color: Orange,Yellow,Blue
Core: 2~24 Core
Fiber Type: Multimode
Highlight:

multi mode tight buffered optical cable

,

indoor high performance fiber optic cable

,

6 12 24 core optical cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GJFJV
Payment & Shipping Terms
Packaging Details: 2km/Wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 4500KM Per Month
Product Description

ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV

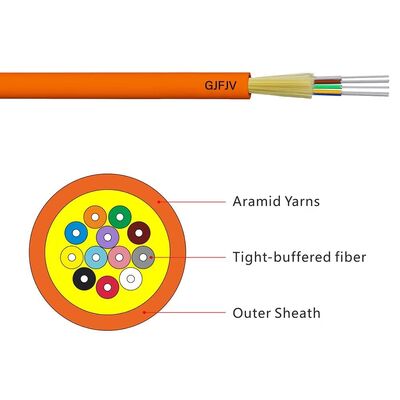

Multi Purpose Distribution Fiber Optic Cable Product Features

  • 600µm or 900µm tight buffer fibers for stable indoor transmission

  • Aramid yarn strength member for enhanced tensile performance

  • PVC or LSZH flame retardant jacket for safe indoor use

  • Flexible structure for easy installation splicing and maintenance

  • High bandwidth and reliable data transmission

Application Scenarios

  • Pigtails and patch cord production

  • Equipment interconnection lines

  • Indoor and limited outdoor distribution cabling

  • Optical communication rooms and distribution frames

  • Data center and enterprise network systems



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHz-km



2200MHz-km







@1300nm







21000MHz-km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.015NA



Cable Cut-off Wavelength λcc







≤1260nm





Cable diameter

  MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm



Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight



 Minimum
allowable Tensile
Strength(N)

Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60
4 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60



GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable 0

GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable 1

GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable 2

GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable 3

GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable 4





Packing

2km or customized length export wooden drum

GJFJV Multi Mode 6 12 24 Core High Performance Tight Buffered Indoor Optical Cable 5

FAQ – Fiber Optic Cable



1. Why Choose Us?
Professional fiber optic cable manufacturer with low MOQ and free samples. We offer stable quality, competitive prices and fast response service.



2. Do You Provide OEM or ODM Service?
Yes, OEM and ODM services are available to meet customized requirements.



3. Can You Print Our Logo?
Yes, we support logo printing on products and packaging boxes.



4. What Shipping Methods Are Available?
Sea freight, air freight and land transportation are all supported.



5. What Payment Methods Do You Accept?
L/C, T/T, Western Union and Alipay are accepted.



6. What Is Your Delivery Time?
Normally 3 to 7 working days depending on order quantity. Shipment will be arranged promptly after payment.
