Home /Products/Aerial Fiber Optic Cable/ADSS Single Jacket Aerial Single Mode Fiber Optic Cable Aramid Strengthened FTTx Telecom

ADSS Single Jacket Aerial Single Mode Fiber Optic Cable Aramid Strengthened FTTx Telecom

10km
MOQ
ADSS Single Jacket Aerial Single Mode Fiber Optic Cable Aramid Strengthened FTTx Telecom
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Outdoor
Fiber Counts: 4-144cores
Span: 100m /200 M /300m Or Customized
Fiber Brand: YOFC/FiberHome/Corning
Structure: Stranded Loose Tube With Filler (if Needed)
Fiber Type: G652D, OM1, G655, OM4, OM5
Installation Method: Aerial Overhead Installation
Gallus Material: PE/ MDPE/ HDPE
Highlight:

ADSS aerial fiber optic cable

,

single mode fiber optic cable with aramid

,

FTTx telecom fiber optic cable
Basic Infomation
Place of Origin: Guangdong China
Brand Name: JQ or OEM/Customize
Certification: ISO9001 CE ROHS Rohs FCC
Model Number: ADSS-12FC/24C/48C/96C/144Core
Payment & Shipping Terms
Packaging Details: Wooden drum or Iron drum
Delivery Time: about 10 days
Payment Terms: T/T, Western Union,Alipay, L/C
Supply Ability: 21500KM per month
Product Description

Product Title

Factory-Direct ADSS Single-Mode Fiber Cable: Aramid-Reinforced Aerial

Structure & Design

  • Loose tubes with gel-protected fibers.
  • FRP core for stability; aramid layers for tensile strength.
  • PE/AT jacket based on voltage needs.

Key Features

  • Non-metallic: Live-line safe, no interference.
  • Self-supporting: Simple install, no extras.
  • Aramid: Durable, weather-resistant.
  • Robust: Handles stress/temperature.
  • Custom: For spans/power projects.

Applications

  • PE: <110kV lines.
  • AT: ≥110kV, anti-tracking.
  • Adjustable spans/aramid per project.

Standards

IEEE 1222 & IEC 60794-1 compliant.





Structure and Technical Specifications



1. ADSS single jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 9.8 80 90
6 1+5 6 1.9 2.0/2.0 1.7±0.1 9.8 80 90
8 1+5 4 1.9 2.0/2.0 1.7±0.1 9.8 80 90
12 1+5 6 1.9 2.0/2.0 1.7±0.1 9.8 80 90
24 1+5 6 2.0 2.0/2.0 1.7±0.1 9.8 85 95
48 1+5 12 2.0 2.0/2.0 1.7±0.1 10.0 88 98
72 1+6 12 2.2 2.0/2.0 1.7±0.1 10.5 98 108
96 1+8 12 2.2 2.0/3.4 1.7±0.1 12.0 122 135
144 1+12 12 2.2 3.0/7.2 1.7±0.1 15.2 176 189



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.



2. ADSS double jacket



fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
6 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
8 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
12 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
24 1+5 6 2.0 2.0/2.0 1.7±0.1 12.0 128 138
48 1+5 12 2.0 2.0/2.0 1.7±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.7±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.7±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.7±0.1 16.5 212 228



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.





Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---




Details picture shows



ADSS Single Jacket Aerial Single Mode Fiber Optic Cable Aramid Strengthened FTTx Telecom 0

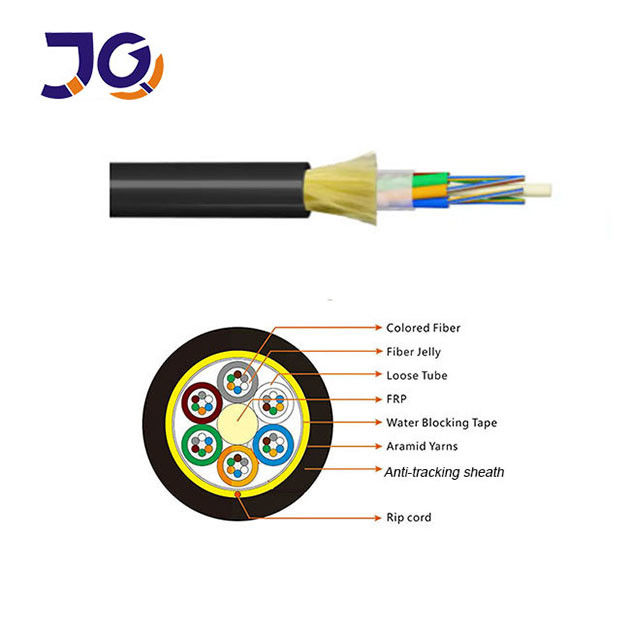

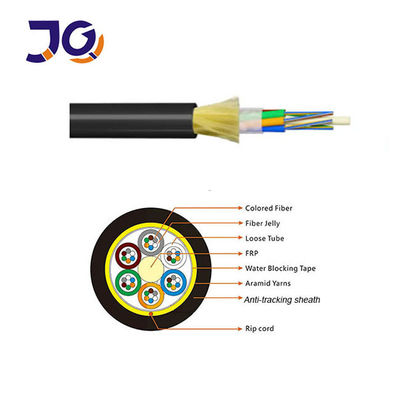

                                                 single jacket ADSS fiber cable



ADSS Single Jacket Aerial Single Mode Fiber Optic Cable Aramid Strengthened FTTx Telecom 1

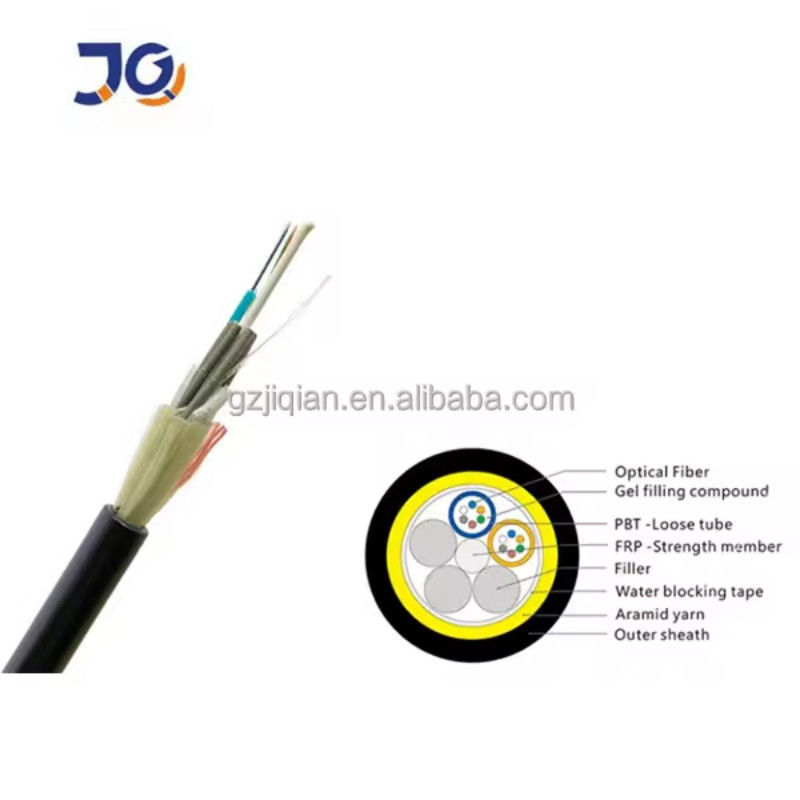

                                               double jacket ADSS fiber optic cable

FAQ

Are you a manufacturer or trading company? We are a direct factory with 10+ years in fiber optic cables, drop cables, patch cords, and accessories. Located in Guangzhou; visits welcome.



How do you ensure quality? Quality first: Every fiber is tested/inspected pre-shipment. Free samples available after quote for approval.



Can I start with a small order? Yes, we accept small/trial orders for new projects or samples.



What is the production lead time? 3-7 working days based on quantity; fast shipping post-payment.



Do you offer OEM/customization? Yes, including logo printing and custom designs for your projects.



Are raw materials certified? Yes, ISO9001 & RoHS certified for reliable performance.
