Home /Products/OPGW Fiber Optic Cable/OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core Single Mode Overhead Power Transmission

OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core Single Mode Overhead Power Transmission

5 km
MOQ
1680USD / km
Price
OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core Single Mode Overhead Power Transmission
Features Gallery Product Description Request A Quote
Features
Specifications
Cable Diameter: 12.4mm
Supporting Cross Section: 86.4mm
Section Of AS Wire: 68.8mm
Section Of AL Tube: 17.6mm
Fiber Type: Single Mode G652D/G657A1
Fiber Count: 24 48 96 Core
Installation: Power System
Fiber Brand: Corning/ YOFC/Fujikura Or Customerized
Highlight:

OPGW fiber optic cable 48 core

,

single mode overhead power cable

,

OPGW optical ground wire 24 core
Basic Infomation
Place of Origin: Guangdong China
Brand Name: JQ/OEM/Customize
Certification: ISO9001/CE/ROHS/FCC
Model Number: OPGW-24B1-86(87.6;55.8)
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 50 KM Per day
Product Description

OPGW Optical Power Ground Wire Cable for Overhead Power Line Communication



Product Introduction
OPGW (Optical Power Ground Wire) cable integrates optical fiber communication with the grounding function of overhead power transmission lines. Installed at the top of power towers, it acts as both a ground wire and a fiber optic communication medium. With a stainless steel tube structure and aluminum-clad steel wires, OPGW provides strong mechanical strength, reliable fiber protection, and stable data transmission for modern power networks.



Key Features

  • Dual function design for grounding and fiber communication
  • Stainless steel tube with water-blocking compound for fiber protection
  • High tensile strength for long-span overhead installations
  • Resistant to lightning, corrosion, and harsh weather
  • Supports multiple fiber types and up to 96 cores

Applications

  • Overhead high-voltage transmission lines
  • Power grid communication systems
  • Relay protection and power automation networks
  • Smart grid and energy infrastructure projects
  • Long-distance power line communication systems

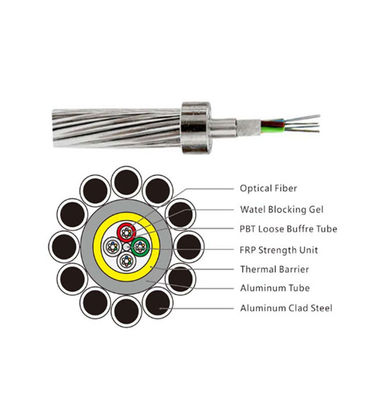

OPGW with PBT Aluminum Tube

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)

OPGW-113(87.9;176.9) 48 14.8 600 87.9 176.9
OPGW-70(81; 41) 24 12 500 81 41
OPGW-66(79;36) 36 11.8 484 79 36
OPGW-77(72;36) 36 12.7 503 72 67



OPGW Typical Designs of Stranded Stainless Steel Tube

Typical design for Double Layer:

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s)
OPGW-89[55.4;62.9] 24 12.6 381 55.4 62.9
OPGW-110[90.0;86.9] 24 14 600 90 86.9
OPGW-104[64.6;85.6] 28 13.6 441 64.6 85.6
OPGW-127[79.0;129.5] 36 15 537 79 129.5
OPGW-137[85.0;148.5] 36 15.6 575 85 148.5
OPGW-145[98.6;162.3] 48 16 719 98.6 162.3

Typical design for Three Layer:

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s)
OPGW-232[343.0;191.4] 28 20.15 1696 343 191.4
OPGW-254[116.5;554.6] 36 21 889 116.5 554.6
OPGW-347[366.9;687.7] 48 24.7 2157 366.9 687.7
OPGW-282[358.7;372.1] 96 22.5 1938 358.7 372.1



OPGW Typical Designs of Central AL-covered Stainless Steel Tube

Typical Design for Single Layer

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)
OPGW-80(82.3;46.8) 24 11.9 504 82.3 46.8
OPGW-70(54.0;8.4) 24 11 432 70.1 33.9
OPGW-80(84.6;46.7) 48 12.1 514 84.6 46.7

Typical Design for Double Layer

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)
OPGW-143(87.9;176.9) 36 15.9 617 87.9 176.9



OPGW Typical Designs of Central Stainless Steel Loose Tube

Typical design for Single Layer:

Specification Fiber Count Diameter (mm) Weight (kg/km) RTS (KN) Short Circuit (KA2s)
OPGW-32(40.6;4.7) 12 7.8 243 40.6 4.7
OPGW-42(54.0;8.4) 24 9 313 54 8.4
OPGW-42(43.5;10.6) 24 9 284 43.5 10.6
OPGW-54(55.9;17.5) 36 10.2 394 67.8 13.9
OPGW-61(73.7;175) 48 10.8 438 73.7 17.5
OPGW-61(55.1;24.5) 48 10.8 358 55.1 24.5
OPGW-68(80.8;21.7) 54 11.4 485 80.8 21.7
OPGW-75(54.5;41.7) 60 12 459 63 36.3
OPGW-76(54.5;41.7) 60 12 385 54.5 41.7

Typical design for Double Layer:

Specification Fiber Count Diameter (mm) Weight (kg/km) RTS (KN) Short Circuit (KA2s)
OPGW-96(121.7;42.2) 12 13 671 121.7 42.2
OPGW-127(141.0;87.9) 24 15 825 141 87.9
OPGW-127(77.8;128.0) 24 15 547 77.8 128
OPGW-145(121.0;132.2) 28 16 857 121 132.2
OPGW-163(138.2;183.6) 36 17 910 138.2 186.3
OPGW-163(99.9;213.7) 36 17 694 99.9 213.7
OPGW-183(109.7;268.7) 48 18 775 109.7 268.7
OPGW-183(118.4;261.6) 48 18 895 118.4 261.6

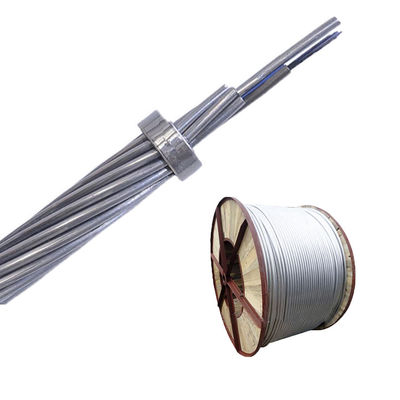

OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core Single Mode Overhead Power Transmission 0

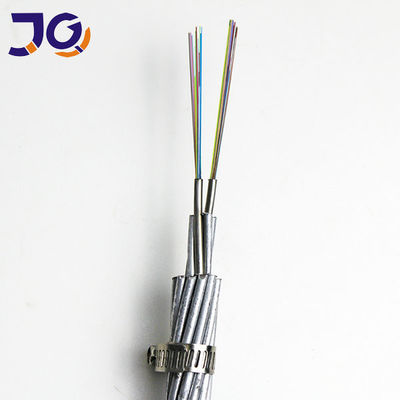

OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core Single Mode Overhead Power Transmission 1



FAQ – OPGW Optical Power Ground Wire Cable



Q1: What is OPGW cable used for?
A: OPGW is used on overhead power transmission lines to provide both grounding protection and fiber optic communication.



Q2: How many fibers can OPGW cable support?
A: It can support up to 96 fiber cores depending on the design and project requirements.



Q3: What fiber types are available?
A: Common options include G652D, G655, G657, OM3, and OM4 fibers.



Q4: Is OPGW suitable for high-voltage environments?
A: Yes, it is designed for overhead power lines and can operate in high-voltage transmission systems.



Q5: Does OPGW provide lightning protection?
A: Yes, it functions as a ground wire that helps protect power lines from lightning and electrical faults.
