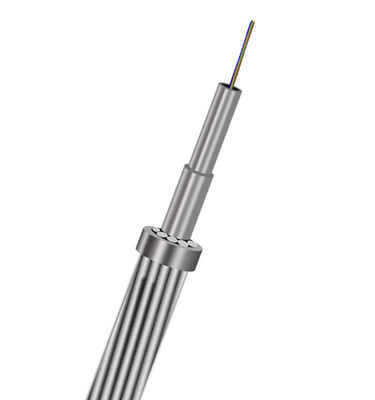

48 Core OPGW Composite Overhead Ground Wire Fiber Optic Cable for Power Transmission

1000m
MOQ
48 Core OPGW Composite Overhead Ground Wire Fiber Optic Cable for Power Transmission
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G657A1/A2/G556
Oem: Available
Application: LAN Communication/Outdoor Communication
Number Of Conductors: 4 6 8 12 24 48 72 Cores
Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C
Central Strength Member: Aluminium Wires
Model Number: OPGW-stranded
Highlight:

48 core OPGW fiber optic cable

,

OPGW overhead ground wire cable

,

composite fiber optic cable for power transmission
Basic Infomation
Place of Origin: China
Brand Name: Jiqian/Customize/ OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: OPGW-24B1-86(87.6;55.8)
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 2-4day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100km per 2 day
Product Description

48 Core Self-Supporting Aerial Composite Overhead Ground Wire OPGW Optical Fibre Cable

Key Features

  • Integrated ground wire and optical fiber design

  • 48 core optical fibers for high capacity communication

  • High tensile strength for self supporting aerial installation

  • Conducts fault current and provides lightning protection

  • Stable performance for high voltage transmission lines

Applications

  • Overhead power transmission lines

  • High voltage and extra high voltage power networks

  • Power grid communication and monitoring systems

  • New or upgraded aerial power line projects

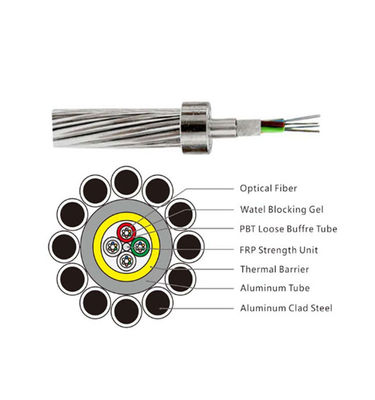

Constructions and Performance

  Classification Material Value







Construction

 Optical Fibre G652D/G655 etc. 2 - 144
Protection Tube Stainless steel tube 1.5 - 6mm
Stranded Line AS wire/AA wire/Al Rod 1.5 - 6mm
Max. Diameter 30mm
Max. Cross Section 500mm2









Characteristic

 According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
Max. Tensile Strength (RTS ) (kN) 700
Max. Crush Strength(N/100mm) 3000
Max. Short Current Capacity (40℃ to 200℃)(kA2s) 2000
Min. Bending Radius (Dynamic) 20D
Min. Bending Radius (Static) 15D
Environment Performance Installation (℃) -10 to +50
Transportation and Operation (℃) -40 to +65


Optical Fibre Characteristics

  Attenuation Bandwidth Polarization Mode Dispersion



@850nm



@1300nm



@1310nm



@1550nm



@850nm



@1300nm

 Individual Fibre Design Link Value (M=20, Q=0.01%)
G652D — — ≤0.35dB/km ≤0.21dB/km — — ≤0.20ps/ km ≤0.1ps/ km
G655 — — — ≤0.22dB/km — — ≤0.20ps/ km ≤0.1ps/ km
50/125μm ≤3.0dB/km ≤1.0dB/km — — ≥600MHz.km ≥1200MHz.km — —
62.5/125μm ≤3.5dB/km ≤1.0dB/km — — ≥200MHz.km ≥600MHz.km — —

48 Core OPGW Composite Overhead Ground Wire Fiber Optic Cable for Power Transmission 0

FAQ:

1. Are you the real manufacturer?
Yes. We are a professional factory located in Guangzhou, China. Factory visits are welcome.



2. What is your minimum order quantity?
MOQ is 1 km. Trial orders are supported for new projects.



3. Can I get a sample?
Yes. Free samples are available. You only need to cover the express shipping cost.



4. What payment methods do you accept?
We accept L C T T Western Union and PayPal.



5. What is the delivery time?
Normally 3 to 7 working days depending on order quantity.



6. Do you offer customized products and logo service?
Yes. OEM and ODM services are available.
