OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core for Power Transmission Systems

5 km
MOQ
1680USD / km
Price
OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core for Power Transmission Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: Single Mode G652D/G657A1
Fiber Count: 24 48 96 Core
Installation: Power System
Fiber Brand: Corning/ YOFC/Fujikura Or Customerized
Central Layer Material: Stainless Steel Unitube
Outer Sheath: Aluminum Clad Steel
Installation Method: Overhead
Operating Temperature: -40°C To +70°C
Highlight:

OPGW fiber optic cable 24 core

,

OPGW optical ground wire 48 core

,

fiber optic cable for power transmission
Basic Infomation
Place of Origin: Guangdong China
Brand Name: JQ/OEM/Customize
Certification: ISO9001/CE/ROHS/FCC
Model Number: OPGW-24B1-86(87.6;55.8)
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 15 dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 KM Per day
Product Description

OPGW Optical Power Ground Wire Cable for Overhead High Voltage Transmission Line Communication

 Key Features

  • Dual-function design combining grounding and fiber communication

  • Stainless steel tube protects fibers from moisture and environment

  • High mechanical strength for harsh weather and long-span installation

  • Stable transmission with minimal electrical interference

  • Compact structure for reliable performance in high-voltage environments

  • Direct replacement of traditional ground wire for easy installation

  • Reduces deployment time and infrastructure cost

 Applications

  • Overhead high-voltage transmission lines

  • Power grid communication systems

  • Smart grid infrastructure

  • Utility monitoring networks

  • Long-distance data transmission in power networks

OPGW with PBT Aluminum Tube

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)

OPGW-113(87.9;176.9) 48 14.8 600 87.9 176.9
OPGW-70(81; 41) 24 12 500 81 41
OPGW-66(79;36) 36 11.8 484 79 36
OPGW-77(72;36) 36 12.7 503 72 67



OPGW Typical Designs of Stranded Stainless Steel Tube

Typical design for Double Layer:

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s)
OPGW-89[55.4;62.9] 24 12.6 381 55.4 62.9
OPGW-110[90.0;86.9] 24 14 600 90 86.9
OPGW-104[64.6;85.6] 28 13.6 441 64.6 85.6
OPGW-127[79.0;129.5] 36 15 537 79 129.5
OPGW-137[85.0;148.5] 36 15.6 575 85 148.5
OPGW-145[98.6;162.3] 48 16 719 98.6 162.3

Typical design for Three Layer:

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s)
OPGW-232[343.0;191.4] 28 20.15 1696 343 191.4
OPGW-254[116.5;554.6] 36 21 889 116.5 554.6
OPGW-347[366.9;687.7] 48 24.7 2157 366.9 687.7
OPGW-282[358.7;372.1] 96 22.5 1938 358.7 372.1



OPGW Typical Designs of Central AL-covered Stainless Steel Tube

Typical Design for Single Layer

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)
OPGW-80(82.3;46.8) 24 11.9 504 82.3 46.8
OPGW-70(54.0;8.4) 24 11 432 70.1 33.9
OPGW-80(84.6;46.7) 48 12.1 514 84.6 46.7

Typical Design for Double Layer

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)
OPGW-143(87.9;176.9) 36 15.9 617 87.9 176.9



OPGW Typical Designs of Central Stainless Steel Loose Tube

Typical design for Single Layer:

Specification Fiber Count Diameter (mm) Weight (kg/km) RTS (KN) Short Circuit (KA2s)
OPGW-32(40.6;4.7) 12 7.8 243 40.6 4.7
OPGW-42(54.0;8.4) 24 9 313 54 8.4
OPGW-42(43.5;10.6) 24 9 284 43.5 10.6
OPGW-54(55.9;17.5) 36 10.2 394 67.8 13.9
OPGW-61(73.7;175) 48 10.8 438 73.7 17.5
OPGW-61(55.1;24.5) 48 10.8 358 55.1 24.5
OPGW-68(80.8;21.7) 54 11.4 485 80.8 21.7
OPGW-75(54.5;41.7) 60 12 459 63 36.3
OPGW-76(54.5;41.7) 60 12 385 54.5 41.7

Typical design for Double Layer:

Specification Fiber Count Diameter (mm) Weight (kg/km) RTS (KN) Short Circuit (KA2s)
OPGW-96(121.7;42.2) 12 13 671 121.7 42.2
OPGW-127(141.0;87.9) 24 15 825 141 87.9
OPGW-127(77.8;128.0) 24 15 547 77.8 128
OPGW-145(121.0;132.2) 28 16 857 121 132.2
OPGW-163(138.2;183.6) 36 17 910 138.2 186.3
OPGW-163(99.9;213.7) 36 17 694 99.9 213.7
OPGW-183(109.7;268.7) 48 18 775 109.7 268.7
OPGW-183(118.4;261.6) 48 18 895 118.4 261.6

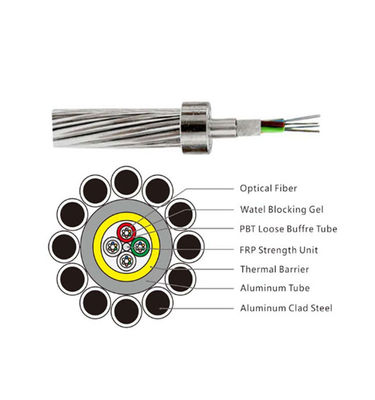

OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core for Power Transmission Systems 0

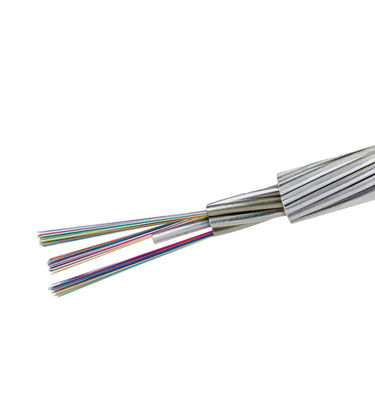

OPGW Optical Power Ground Wire Fiber Optic Cable 24 48 Core for Power Transmission Systems 1

Parameter



FAQ

1. Manufacturer or trading company?
We are a manufacturer with 10+ years experience in fiber optic cables.



2. How is quality ensured?
All products are tested before shipment. Free samples available.



3. Small orders accepted?
Yes, trial orders are supported.



4. Delivery time?
About 3–7 working days, depending on quantity.



5. OEM available?
Yes, customization and logo printing supported.
