Anti-rodent Underground Fiber Optic Cable Single Mode G652D 48 Core Optical Fiber Cable GYTA33 GYFTY33

1km
MOQ
Anti-rodent Underground Fiber Optic Cable Single Mode G652D 48 Core Optical Fiber Cable GYTA33 GYFTY33
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Model Number: GYFTY33/GYTA33
Number Of Fiber: 4-288
Sheath: PE/LSZH,Black Colour Or The Colour You Like
Suitable Temperature: -40℃ +70℃
Fiber Type: Single Mode G652D
Certification: ISO9001 ROHS CE FCC
Manufacturer: Yes
Armored Fiber Optic Cable: Yes,Armour Steel Wire/Steel Tape
OEM: Available
Highlight:

Anti-rodent underground fiber optic cable

,

Single mode G652D fiber optic cable

,

48 core GYTA33 optical cable

Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC
Model Number: GYFTY33/GYTA33
Payment & Shipping Terms
Packaging Details: Wooden drum
Delivery Time: Uslually 7days,it depends on order quantity
Payment Terms: T/T,30% deposit to start production,70% payable before delivery
Product Description

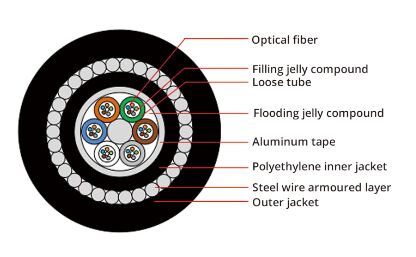

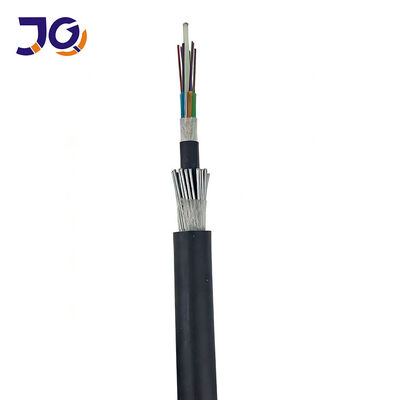

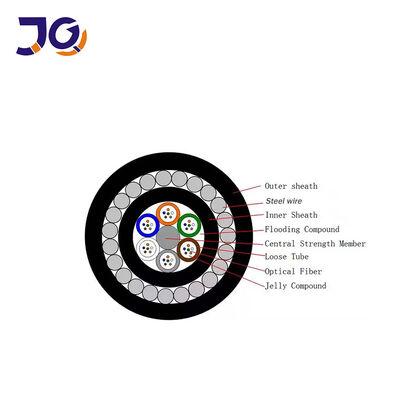

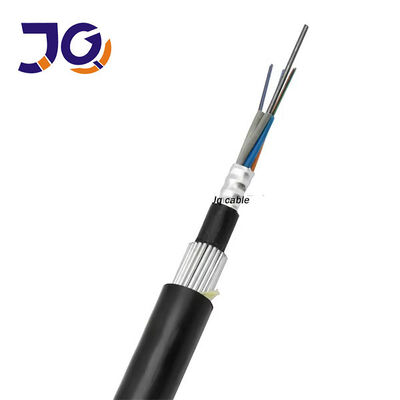

GYFTY33 Anti Rodent Optical Cable

The GYFTY33 fiber optic cable design in steel wire armored which stronger Mechanical performance on pulling tension and crush resistance. Double sheath steel wire armour design also with excellent anti rodent protection Double water block yarn and water swealable material tape around cable core providing good performance on water proof. It is armored with galvanized steel wire, and double jacketed. The fiber optic quantity is from 4 to 288 Cores, soft tissue, user-friendly design, and the fiber type can be single-mode or multi-mode according to customers' requirement. Cable construction can be single steel wire armored or double steel wire armored for different tensile load.


Anti-rodent Underground Fiber Optic Cable Single Mode G652D 48 Core Optical Fiber Cable GYTA33 GYFTY33 0
Anti-rodent Underground Fiber Optic Cable Single Mode G652D 48 Core Optical Fiber Cable GYTA33 GYFTY33 1


Applications:

Directburied, DuctorUnderground conduits.

Backbone.


Technical data
Fiber count                        48 cores G652D
Cable diameter                         13.0±0.2mm
Loose tube 4,each tube contain 12 cores
Inner sheath                 PE           1.0MM
Outer sheath                 PE           1.8±0.2MM

Tension(Long Term)

                N            3500

Tension(Short Term)

                N             7000

Crush(Long Term)

                N/10cm

            1000

Crush(Short Term)

                N/10cm

            3000

Operating Temperature

                ℃

            -40~+70



Fiber Optic G652D:



Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100

Fiber Testing

Anti-rodent Underground Fiber Optic Cable Single Mode G652D 48 Core Optical Fiber Cable GYTA33 GYFTY33 2

Cable testing

Anti-rodent Underground Fiber Optic Cable Single Mode G652D 48 Core Optical Fiber Cable GYTA33 GYFTY33 3





Company profile:

Anti-rodent Underground Fiber Optic Cable Single Mode G652D 48 Core Optical Fiber Cable GYTA33 GYFTY33 4

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

Anti-rodent Underground Fiber Optic Cable Single Mode G652D 48 Core Optical Fiber Cable GYTA33 GYFTY33 5

FAQ



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
