Home /Products/FTTH Fiber Optic Drop Cable/4 Core G657A1 Single Mode FTTH Indoor Drop Cable Flat Aerial Fiber Optic Cable

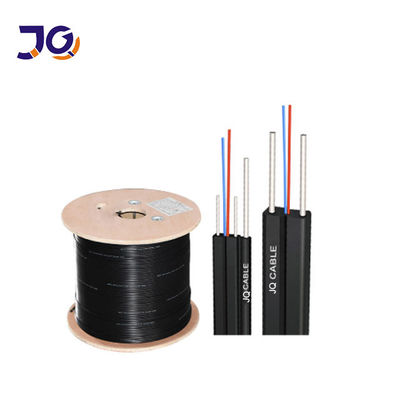

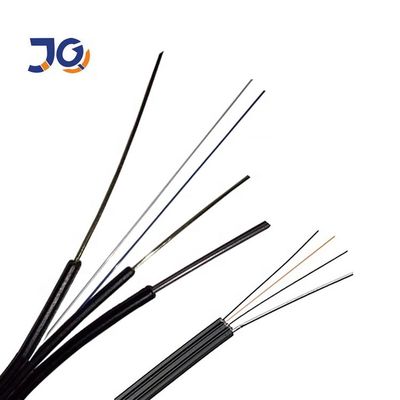

4 Core G657A1 Single Mode FTTH Indoor Drop Cable Flat Aerial Fiber Optic Cable

1KM
MOQ
4 Core G657A1 Single Mode FTTH Indoor Drop Cable Flat Aerial Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 1/2/4Core
Jacket Color: Black,White,as Request
Jacket Material: LSZH/PVC/PE
Strength Member: Steel Messenger Wire/FRP
Length: 1km/2km/3km/4km
Fiber Type: G657A1/A2/G652D/G657A1/G657A2
Application: FTTH,Network, Fiber To The Home
Cable Diameter: 1mm Steel Wire 0.45mm Frp
Highlight:

4 core FTTH fiber optic cable

,

G657A1 single mode drop cable

,

flat aerial fiber optic cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GJYXCH/GJYXFCH
Payment & Shipping Terms
Packaging Details: wooden package or cartoon box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100KM Per day
Product Description

Single Mode G657A1 Outdoor Aerial FTTH Drop Fiber Optic Cable 1 2 4 Core Flat Self Supporting FRP With Messenger



Product Features

  • G657A1 single mode fiber with low bending loss and stable transmission

  • 1 2 4 core options for flexible FTTH deployment

  • Flat cable design for easy routing and fast installation

  • Dual FRP strength members for enhanced tensile performance

  • Optional steel wire messenger for self supporting aerial use

  • UV resistant and flame retardant LSZH jacket for safety and durability

Application Scenarios

  • Outdoor aerial FTTH drop installation

  • Indoor and outdoor fiber to home wiring systems

  • Building shaft and residential cabling projects

  • Last mile access network and terminal connections

Fiber Parameters

Type Fiber attenuation(+20℃) OFL Band Width 10G Ethernet link length Minimum bending radius
Condition 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm /
Typical value MAX Typical value MAX
Unit dB/km dB/km dB/km dB/km MHZ.km MHZ.km m mm
G657A1 0.36/0.22 0.5/0.4 --- --- --- --- --- 10
G657A2 0.36/0.22 0.5/0.4 --- --- --- --- --- 7.5
OM3 --- --- 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000 ≤300 30
OM4 --- --- 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700 ≤550 30



Technical parameters

Product
Model		 Fiber
Count
(core)		 Cable Diameter(mm) Cable Weight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)

Crush

Resistance
Long/ShortTerm(N)

 Bending
Radius
Static/Dynamic
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30

4 Core G657A1 Single Mode FTTH Indoor Drop Cable Flat Aerial Fiber Optic Cable 0

Product detail

4 Core G657A1 Single Mode FTTH Indoor Drop Cable Flat Aerial Fiber Optic Cable 1

4 Core G657A1 Single Mode FTTH Indoor Drop Cable Flat Aerial Fiber Optic Cable 2



Packaing detail

1km/2km per wooden drum,Outside package is Cartoon

1KM:350*350*345MM. 2KM:410*380*415MM



Shipping:By sea/by air or express delivery,it depends on the order quantity.



Lead time:

Quantity(km) 1-500 Above 500
Earliest time(day) 5-7 Negotiable



4 Core G657A1 Single Mode FTTH Indoor Drop Cable Flat Aerial Fiber Optic Cable 3



4 Core G657A1 Single Mode FTTH Indoor Drop Cable Flat Aerial Fiber Optic Cable 4

FAQ – Single Mode G657A1 Outdoor Aerial FTTH Drop Cable



Q1: What fiber type is used in this FTTH drop cable?
A: It uses G657A1 single mode fiber with low bending loss, ideal for indoor and outdoor FTTH installation.



Q2: How many cores are available?
A: The cable is available in 1 core, 2 core and 4 core options to meet different access network needs.



Q3: Can this cable be used for aerial installation?
A: Yes, it supports self supporting aerial installation with optional steel wire messenger or FRP strength member.



Q4: Is the cable suitable for indoor use?
A: Yes, the LSZH outer jacket is flame retardant and low smoke, making it safe for indoor and building wiring.



Q5: What applications is this cable mainly used for?
A: It is widely used in FTTH last mile access networks, residential broadband connection, building shaft wiring and terminal distribution systems.
