Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T |
| Supply Ability : | 30KM Per days |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GYFXTY-12B1 |
|
Detail Information |
|||
| Fiber Type: | Single Mode G652D | Jacket Material: | PE/MDPE |
|---|---|---|---|
| Strength Member: | FRP | Cable Diameter: | 6.0-9.0 Mm |
| Color: | Black | Storage/Operation: | -40℃~+70℃ |
| Application: | Aerial/Duct | Fiber Count: | 2/4/6/8/12 Core |
| Type: | Singlemode & Multimode | Length: | 2km Or Customized Length |
| High Light: | 12Core Outdoor Fiber Optic Cable,GYFXTY Outdoor Fiber Optic Cable,GYFXTY 12 core fiber optic cable |
||
Product Description
Product Description

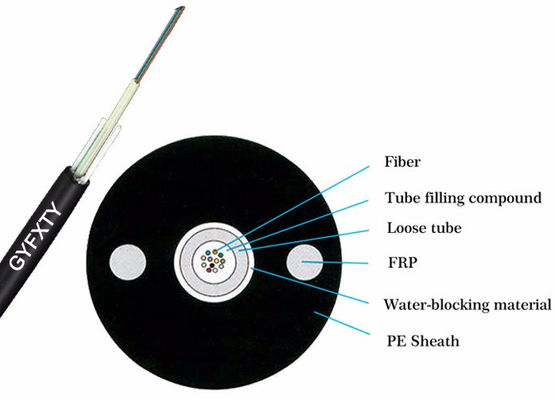

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.
The cable is completed with a polyethylene (PE) sheath.2-12core single mode unit tube fiber cable GYFXTY non-metallic outdoor optic fiber cable
Features
Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.
Optical Characteristics
|
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation(+20C) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤036dB/km |
≤0.40dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth(ClassA) |
@850nm |
|
|
≤2500MHz-km |
≥2200MHz.km |
|
@1300nm |
|
|
≤1000MHz.km |
≥2600MHz-km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.15NA |
|
|
CableCut-off Wavelength |
≤1260m |
≤1480nm |
|
|
|
Structure and Technical Specification OF GYFXTY
Unit tube GYFXTY Fiber Optic Cable
|
Fiber count |
Cable diameter(mm) |
Nominal weight(KGS) |
AllowableTensileLoad(mm) |
Allowable Crush Resistance(N/100m) |
||
|
Short term |
Long term |
Short term |
Long term |
|||
|
2-12 |
8.0 |
60 |
800N |
400N |
1000N/100m |
300N/100m |
Package
Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;
Shipping way
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
