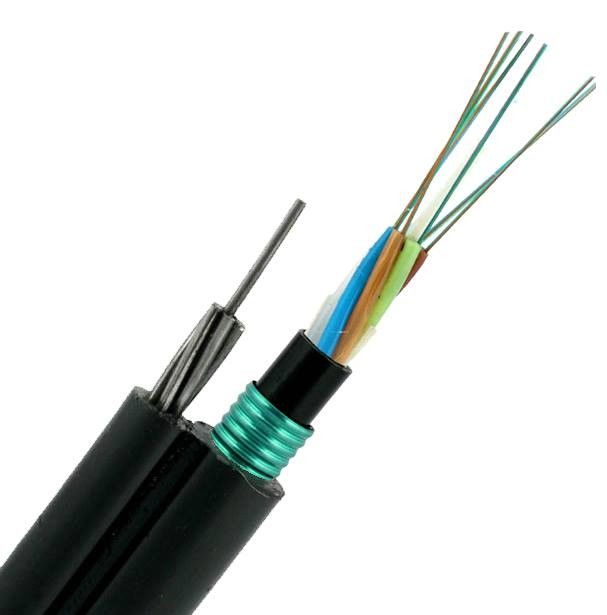

Self-Supporting Single Armored Double Sheath 24 Core Aerial Fig 8 Fiber Optic Cable

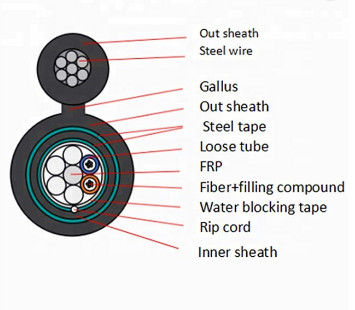

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire or FRP locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress. This part of cable accompanied with the strand wires, as the supporting part are completed with double polyethylene(PE)sheath to be figure 8 structure.High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Steel wire or FRP used as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
Single Armored Double Sheath Self-Supporting fiber optic cable
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
| Fiber Model |
G.652D |
| Design(Strength Member+Tube&Filler) |
1+5 |
| Central Strength Member |
Material |
Steel Wire or FRP |
| Diameter(+0.05)mm |
1.5 |
| LooseTube |
Material |
PBT |
| Diameter(+0.06)mm |
2 |
| Thickness(+0.03)mm |
0.32 |
| TheMax.CoreNO./Tube |
12 |
| Filler Rope |
Material |
LDPE |
| Color |
White |
| Diameter(+0.06)mm |
2.1 |
| Strand Strength Member |
Material |
Galvanized Steel |
| Type |
φ0.9x3 |
| Armor layer |
Material |
Steel Tape |
| OuterSheath① |
Material |
MDPE,PE |
| Thickness(+0.03)mm |
1. |
| OuterSheath① |
Material |
MDPE |
| Thickness(40.03)mm |
1.8 |
| CableDiameter(土0.2)mm |
9.5*17.8(nominal) |
| CableWeight(+10)kg/km |
175(nominal) |
| Min.installation/N |
1500 |
| Attenuation |
1310nm |
0.35dB/KM |
| 1550nm |
0.21dB/KM |
| Min.bendingradius |
Without Tension |
10.0*Cableφ |
| Under Maximum Tension |
20.0xCableφ |

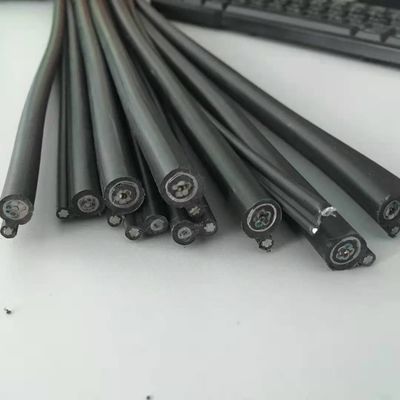

Samples Picture
