OEM Overhead Single Mode GYFTY G652D Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : Normally 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500km per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001 Model Number: GYFTY

Detail Information

Place Of Origin: Zhejiang, China Brand Name: Jiqian
Number Of Conductors: ≥ 10 Strength Member: FRP
Laying Mode: Duct/Aerial Storage/operating Temperature:: -40 To +70 °C
Application: Networking OEM: Yes
Highlight:

GYFTY G652D Fiber Optic Cable

,

OEM G652D Fiber Optic Cable

,

Overhead gyfty fiber optic cable

Product Description

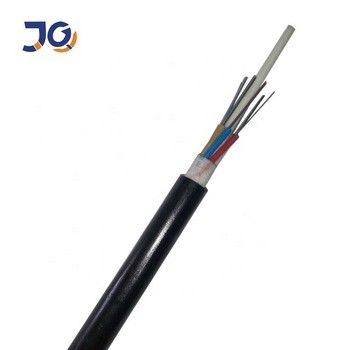

Manufacturing Non-metallic GYFTY single mode G652D fiber optic cable



The fibers, 250μm, are positioned in a loose tube which is made of a high modulus plastic. All the tubes are filled with a water- resistent filling compound. We use the FRP(fiber reinforced plastic) as the strength member. The optical cable have a very good mechanical and temperature performance. You don't need to worry about the crush resistance and flexibility during the storage and operating.

OEM Overhead Single Mode GYFTY G652D Fiber Optic Cable 0

OEM Overhead Single Mode GYFTY G652D Fiber Optic Cable 1

Fiber Properties

The properties of single mode optical fiber (ITU-T Rec. G.652D)

Item Specification
Fiber type Single mode
Fiber material Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm

≤ 0.36 dB/km
≤0.32 dB/km
≤0.22 dB/km
≤0.30 dB/km
Point discontinuity ≤ 0.05 dB
Cable cut-off wavelength ≤ 1260 nm
Zero-dispersion wavelength 1300 ~ 1324 nm
Zero-dispersion slope ≤0.093 ps/(nm².km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm

≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMD ≤0.2 ps/km½
Mode field diameter @ 1310 nm 9.2±0.4 um
Core / Clad concentricity error ≤0.5 um
Cladding diameter 125.0 ± 0.7 um
Cladding non-circularity ≤1.0%
Primary coating diameter 245 ± 10 um
Proof test level 100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm
≤ 0.1 dB/km



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
