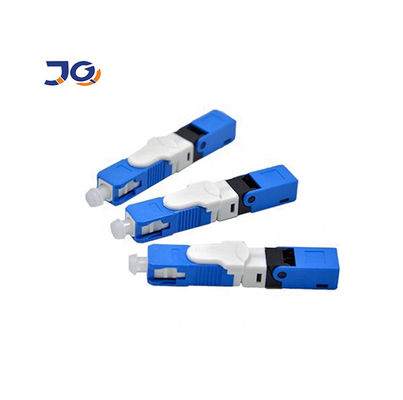

FTTH FTTB FTTX SC/UPC SC/APC Fiber Optic Connector

1000m
MOQ
FTTH FTTB FTTX SC/UPC SC/APC Fiber Optic Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Oem: Available
Weight: 3g
Temperature: -40℃to 75℃
Color: OEM
Application: FTTH FTTB FTTX Network
Return Loss: < -45db
Repeatability Test: IL≤0.2dB RL≤5dB
Insert Loss: Less 0.25db
Highlight:

FTTB Fiber Optic Connector

,

FTTX Fiber Optic Connector

,

SC/UPC SC/APC Fiber Optic Connector
Basic Infomation
Place of Origin: CHINA
Brand Name: jiqian
Certification: ISO
Model Number: SC/UPC SC/APC
Payment & Shipping Terms
Packaging Details: package carton
Delivery Time: 2-4day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100km per 2 day
Product Description

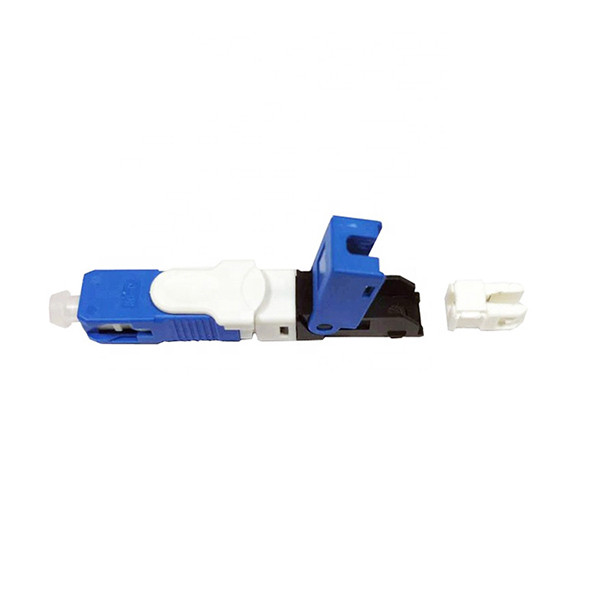

FTTH drop cable SC/UPC SC/APC single mode fast connector Fiber Optic Connector

FTTH Quick connector SC APC/SC UPC

The fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.
FTTH FTTB FTTX SC/UPC SC/APC Fiber Optic Connector 0

FTTH FTTB FTTX SC/UPC SC/APC Fiber Optic Connector 1

Optical Characteristics
1.Nominal Wavelength(nm): SM 1310,1550,MM 850
2.Fiber Core Capacity: 1
3.Fiber Cladding: 125 fiber optic fast connector
4.Fiber Cord Type (mm): ø0.25, ø0.9
5.Insertion Loss (dB): SM 0.9Max GI 0.6Max
6.Return Loss (dB): SM 40Min
7.Ferrule End Face Criterion: SM SPC finish GI PC finish

Applitcation
1. No special tools needed when installed;
2. Can be made on-site without splicing connectors ;
3. Only 30 seconds needed to learn the process of installation and making;
4. Can be intalled and maked repeatedly thus avoiding loss



SC/UPC SC/APC optical fiber single mode fast connector for FTTH drop cable
Size(CM)
60*44.5*24.5
QTY(PCS/Box)
1000
N.W(KG/BOX)
5.6
G.W(KG/Box)
8.5



FTTH FTTB FTTX SC/UPC SC/APC Fiber Optic Connector 2
COMPANY PROFILE
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
