Good Quality SC/UPC-SC/APC Single-mode Simplex Duplex 2.0 3.0MM LSZH Optical Fiber Patch Cord
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
Minimum Order Quantity : | 2km | Packaging Details : | Wooden drum |
---|---|---|---|
Delivery Time : | 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
Supply Ability : | 4500 per month |
Place of Origin: | China | Brand Name: | Jiqian |
---|---|---|---|
Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GJFJV |
Detail Information |
|||
Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
---|---|---|---|
Model Number: | GJFJV | Number Of Fiber: | 12 |
Sheath: | LSZH/PVC | MOQ: | 2KM |
Application: | Telecommunication | Port: | Guangzhou/Shenzhen |
Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Manufacturer: | Yes |
High Light: | 2KM Indoor Fiber Optic Cable,2KM 12 core single mode fiber optic cable,LSZH 12 core single mode fiber optic cable |
Product Description
LSZH 12 core Single mode tight buffer aramid yarn GJFJV indoor fiber optic cable

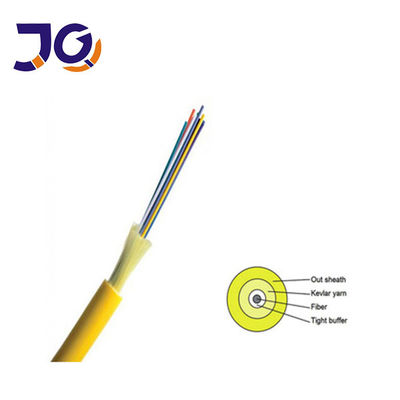

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers, then completed with PVC(LSZH)jacket.
Features
1.Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
2.Good performance of flame-retardant
3.Steady performance both in extremely high and low temperature.
4.Excellent geometrical dimension of the fiber.
Technical Parameters | ||||||||||
Cable Count |
Outside Diameter |
Tight buffer |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
(MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | |
2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 2km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
