Outdoor GYTA53 2-288cores Armoured Optical Fiber Cable

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GYTA53

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Number: GYTA53 Laying Mode: Direct Burial
Suitable Temperature: - 40℃~ +60℃ Central Strength Member: Metallic Tape
Number Of Fiber: 2-288 Manufacturer: Yes
Certification: ISO9001 ROHS CE-EMC FCC SDOC
High Light:

288cores Armoured Optical Fiber Cable


GYTA53 Armoured Optical Fiber Cable


FCC SDOC GYTA53 288 core fiber optic cable

Product Description

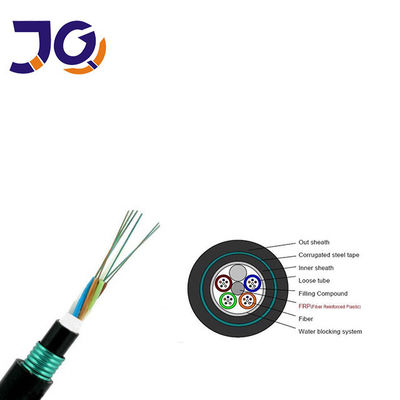

Outdoor Armoured Direct Burial Stranded Loose Tube Cable Fiber Optical Cable


The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Outdoor GYTA53 2-288cores Armoured Optical Fiber Cable 0


  1. Steel wire strength filler protect tube fiber. Steel tape armord.
  2. Good ultra violet radiation resistant property.
  3. Double sheath and Double armored .
  4. Good moisture resistance.


1. Direct burial

2. Underground


Item Parameters
Loose tube Material PBT
Color All colors display
Filler Material PE
Color Black
CSM Material Phosphating steel wire
Inner armoured Material Plastic coated aluminum strip
Inner jacket Material MDPE
Color Black
Outer armoured Material Plastic coated steel strip
Outer jacket Material MDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter
Repeating bending Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance Short term 3000N
Crush Short term 3000N/100mm
Torsion Load:250N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.




1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.


3.Q:Which brand of fiber do you use?



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


6.Can you supply customized products and logo?

A:Yes. We supply OEM service.


7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
