Home /Products/Indoor Fiber Optic Cable/OM1 OM2 OM3 4 Core Multimode GJFJV10 Gigabit Fiber Optic Cable

OM1 OM2 OM3 4 Core Multimode GJFJV10 Gigabit Fiber Optic Cable

1000m
MOQ
OM1 OM2 OM3 4 Core Multimode GJFJV10 Gigabit Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: OM3
Oem: Available
Operating Temperature: -20~70°C
Central Strength Member: Aramid Yarn
Material:: PVC/LSZH
Fiber Count: 12core
Diameter: 2.2(outer/inner)
Highlight:

GJFJV10 gigabit fiber optic cable

,

GJFJV10 om3 multimode fiber cable

,

GJFJV10 4 core multimode fiber optic cable
Basic Infomation
Place of Origin: CHINA
Brand Name: jiqian
Certification: ISO
Model Number: GJFJV
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 2-4day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100km per 2 day
Product Description

OM1 OM2 OM3 4 Core 10 Gigabit Multimode GJFJV Fiber Optic Cable Indoo

Indoor Communication Cable(GJFJV)
GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant) The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipment and accurately designed tools ensure a good performance of the product.

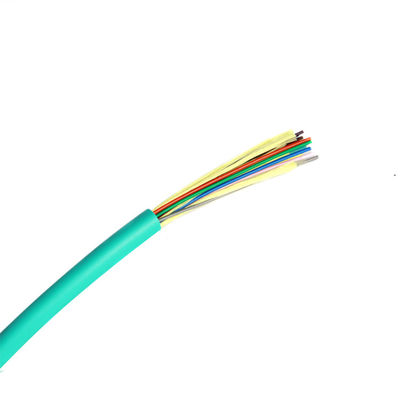

OM1 OM2 OM3 4 Core Multimode GJFJV10 Gigabit Fiber Optic Cable 0
Features
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant stands
Soft, flexible easy to splice and with big capacity data transmission
Detailed Image

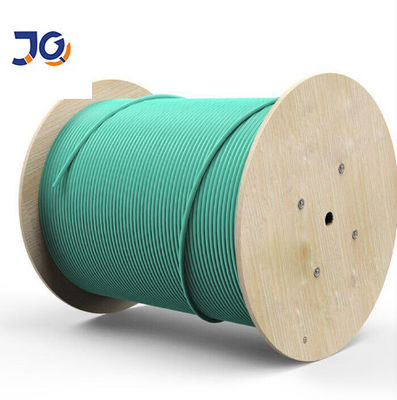

OM1 OM2 OM3 4 Core Multimode GJFJV10 Gigabit Fiber Optic Cable 1

Technical Data
No. of cable
8
12
24
36
48
Fiber Model
OM3
Tight lines
Material
PVC/LSZH
Thickness(±0.03)mm
0.32
Diameter(±0.06)mm
0.9
Center Strength Member
Material
FRP
Diameter(±0.1)mm
—
—
—
0.5
0.5
Strength Member
Material
Aramid Yarn
Inner Sheath
Material
PVC/LSZH
Diameter(±0.1)mm
—
—
—
0.8
0.8
Colour
Aqua
Outer Sheath
Material
PVC
Thickness(±0.1)mm
0.9
1.0
1.0
1.5
1.5
Colour
Aqua
Cable Diameter(±0.2)mm
5.8
6.2
8.5
15.1
15.1
Cable Wetght(±5)kg/km
31
41
60
238
235
Attenuation
850nm
dB/km
≤2.5
1300nm
≤0.7
Bandwidth
850nm
MHz.km
≥3500
1300nm
≥500
Allowable Tensile Strength
Short Term
N
660
660
660
1320
1320
Long Term
200
200
200
660
660
Allowable Crush Resistance
Short Term
N/100mm
1000
1000
1000
1500
1500
Long Term
200
200
200
300
300
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

COMPANY PROFILE
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
