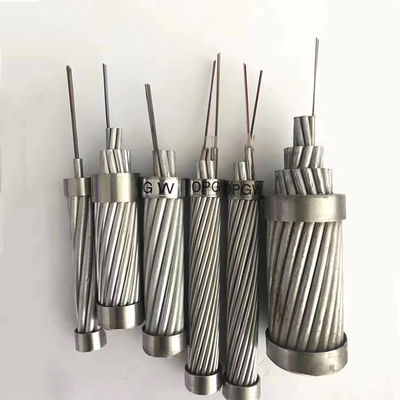

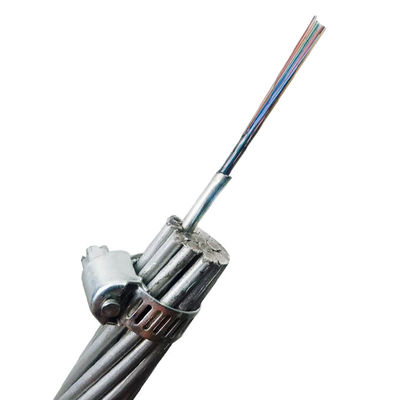

24 Cores 48 Cores Power System Optical Power Ground Wire OPGW Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
Minimum Order Quantity : | 1km | Packaging Details : | Plywood Reel/customized |
---|---|---|---|
Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 4500KM Per Month |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | OPGW |
Detail Information |
|||
Fiber Type: | Single Mode/multi Mode | Jacket: | Aluminum |
---|---|---|---|
Product Name: | Outdoor Fiber Optic Cable | Length: | 2km Or Customized Length |
Structure: | Loose Tube | Fiber: | 4-288core |
Operating Temperature: | -40 ~ +60 C | ||
Highlight: | OPGW single mode outdoor fiber cable,OPGW 4 core single mode fiber optic cable,2km opgw fiber optic cable |
Product Description
Optical fibre composite overhead ground wire (OPGW) is an overhead ground wire containing optical fibre. It has multiple functions such as overhead ground wire and optical communication. It is mainly used for communication lines of 110KV, 220KV, 500KV, 750KV and new overhead high-voltage transmission system. It can also be used to replace the existing ground lines of the old overhead high voltage transmission system, add the optical communication line, transmit short time current and provide anti lightning protection. Other structures can be customized on request.
Product Characteristics
• Stainless steel tubes filled with hydrophobic gel provide the protection and support of the optical fibres
• Good tensile performance
• Small diameter, light weight, low additional load to the tower
• Appropriate fibre excess length of optical unit easliy to make

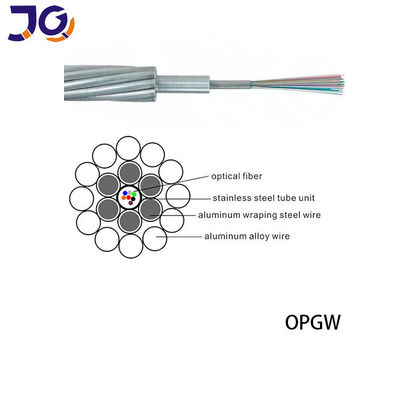

Constructions and Performance
Classification | Material | Value | |
Construction |
Optical Fibre | G652D/G655 etc. | 2 - 48 |
Protection Tube | Stainless steel tube | 1.5 - 6mm | |
Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | |
Max. Diameter | 18mm | ||
Max. Cross Section | 200mm2 | ||
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | ||
Max. Tensile Strength (RTS ) (kN) | 280 | ||
Max. Crush Strength(N/100mm) | 2200 | ||
Max. Short Current Capacity (40℃-200℃)(kA2s) | 100 | ||
Min. Bending Radius (Dynamic) | 20D | ||
Min. Bending Radius (Static) | 15D | ||
Environment Performance | Installation (℃) | -10 to +50 | |
Transportation and Operation (℃) | -40 to +65 |
Optical Fibre Characteristics
Attenuation | Bandwidth | Polarization Mode Dispersion | ||||||
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
Individual Fibre | Design Link Value (M=20, Q=0.01%) | |
G652D | — | — | ≤0.35dB/km | ≤0.21dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
G655 | — | — | — | ≤0.22dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
50/125μm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥600MHz.km | ≥1200MHz.km | — | — |
62.5/125μm | ≤3.5dB/km | ≤1.0dB/km | — | — | ≥200MHz.km | ≥600MHz.km | — | — |
• Transport/storage temperature: -40℃ to +65℃
Packaging and Drum
• Standard Cable Drum
• Standard reel length: 2/3km/reel, other length is also available
