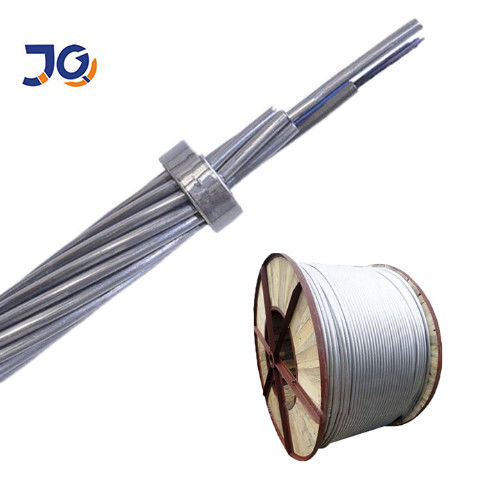

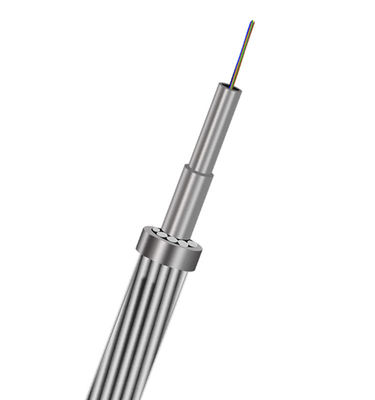

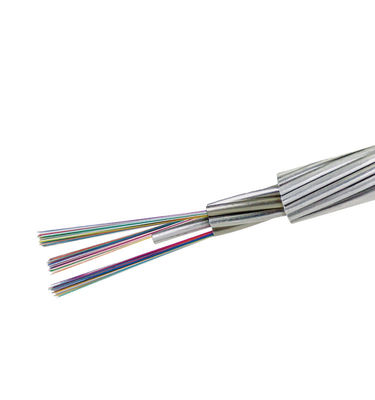

OPGW Power Optical Fiber, 4/6/8/12/24/36/48-Core Single Mode Composite Overhead Ground Wire, Armored Communication Cable.
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per 2 day |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO | Model Number: | opgw |
|
Detail Information |
|||
| Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
|---|---|---|---|
| Application: | LAN Communication/Outdoor Communication | Number Of Conductors: | 4 6 8 12 24 48 |
| Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
| Central Strength Member: | Aluminium Wires | Model Number: | OPGW-stranded |
| Highlight: | Dia30mm 500kv 24 fibre optic cable,OPGW Dia30mm 24 Fibre Optic Cable,500kv G657A2 OPGW Fiber Optic Cable |
||
Product Description
Product Characteristics:
• Large diameter, large fiber capacity
• The structure is stable and the reliability is high
• Excellent capability against side and outstanding short circuit current capacity
• The optimum stranding design can obtain the surplus length of secondary optical fiber • The number of strands can be designed in two or three layers
• Match with common ground wires

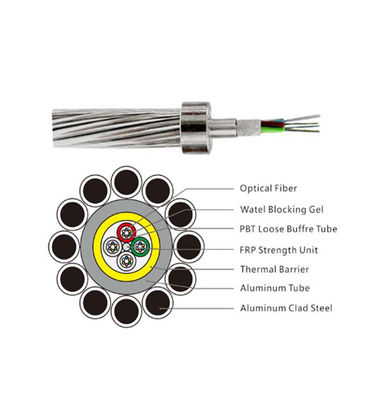

Constructions and Performance
| Classification | Material | Value | ||
|
Construction |
Optical Fibre | G652D/G655 etc. | 2 - 144 | |
| Protection Tube | Stainless steel tube | 1.5 - 6mm | ||
| Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | ||
| Max. Diameter | 30mm | |||
| Max. Cross Section | 500mm2 | |||
|
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | |||
| Max. Tensile Strength (RTS ) (kN) | 700 | |||
| Max. Crush Strength(N/100mm) | 3000 | |||
| Max. Short Current Capacity (40℃ to 200℃)(kA2s) | 2000 | |||
| Min. Bending Radius (Dynamic) | 20D | |||
| Min. Bending Radius (Static) | 15D | |||
| Environment Performance | Installation (℃) | -10 to +50 | ||
| Transportation and Operation (℃) | -40 to +65 | |||
Optical Fibre Characteristics
| Attenuation | Bandwidth | Polarization Mode Dispersion | ||||||
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
Individual Fibre | Design Link Value (M=20, Q=0.01%) | |
| G652D | — | — | ≤0.35dB/km | ≤0.21dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
| G655 | — | — | — | ≤0.22dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
| 50/125μm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥600MHz.km | ≥1200MHz.km | — | — |
| 62.5/125μm | ≤3.5dB/km | ≤1.0dB/km | — | — | ≥200MHz.km | ≥600MHz.km | — | — |
Environmental Characteristics:
• Transport/storage temperature: -40℃ to +65℃
