24 Cores 48 Cores Power System Optical Power Ground Wire OPGW Cable
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 4500 per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | OPGW |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
|---|---|---|---|
| Model Number: | OPGW | Application: | Overhead |
| Sheath: | Alumilum Alloy Wires | Length: | Customized |
| Temparature( Installation ): | -10 To +70° C | ||
| Highlight: | Alumilum Alloy wires OPGW Fiber Optic Cable,SDOC OPGW Fiber Optic Cable,SDOC optical power ground wire |
||
Product Description

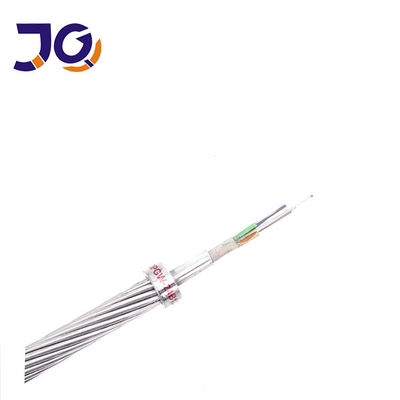

Single Mode G652D Opgw Aeirlal 24 48 Cores OPGW Fiber Optic Cable
The Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Good anti-corrosion performance. Material and structure are uniform, good resistance to vibration fatigue.
Features
1. Up to 144 fibers
2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.
3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers
free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
4. Optical fibers are protected by stainless steel tubes.
5. Excellent security, good bullet resist performance.
6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.
Constructions and Performance
| Classification | Material | Value | ||
|
Construction |
Optical Fibre | G652D/G655 etc. | 2 - 144 | |
| Protection Tube | Stainless steel tube | 1.5 - 6mm | ||
| Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | ||
| Max. Diameter | 30mm | |||
| Max. Cross Section | 500mm2 | |||
|
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | |||
| Max. Tensile Strength (RTS ) (kN) | 700 | |||
| Max. Crush Strength(N/100mm) | 3000 | |||
| Max. Short Current Capacity (40℃ to 200℃)(kA2s) | 2000 | |||
| Min. Bending Radius (Dynamic) | 20D | |||
| Min. Bending Radius (Static) | 15D | |||
| Environment Performance | Installation (℃) | -10 to +50 | ||
| Transportation and Operation (℃) |
-40 to +65 |
|||
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
