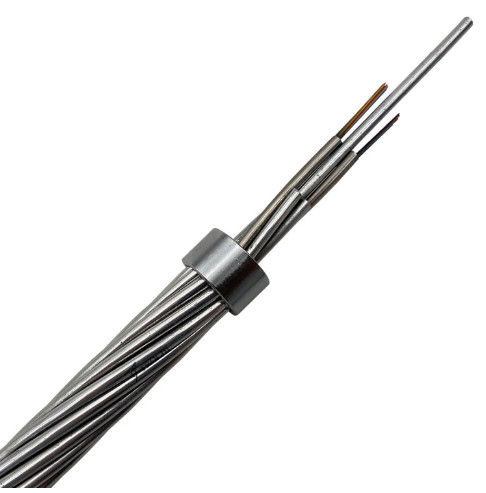

500mm2 G556 G657A1 24 32 36 Core OPGW Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: opgw

Detail Information

Fiber Type: G657A1/A2/G556 Oem: Available
Application: LAN Communication/Outdoor Communication Number Of Conductors: 4 6 8 12 24 48 72
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: Aluminium Wires Model Number: OPGW-stranded
High Light:

500mm2 G657A1 OPGW Fiber Optic Cable


500mm2 G556 OPGW Fiber Optic Cable


G657A1 opgw optical power ground wire

Product Description

OPGW is a kind of overhead ground wire containing optical fiber, which has multiple functions such as overhead ground wire and optical communication. It is applicable to new aerial power route to satisfy the needs for big conductors and high voltage transmission, and is used to conduct large fault short circuit current to provide anti lightning protection.

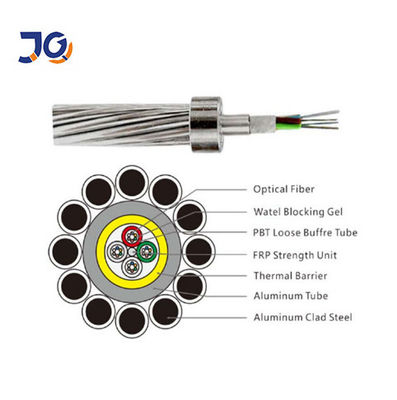

500mm2 G556 G657A1 24 32 36 Core OPGW Fiber Optic Cable 0



Product Characteristics:

• Large diameter, large fiber capacity

• The structure is stable and the reliability is high

• Excellent capability against side and outstanding short circuit current capacity

• The optimum stranding design can obtain the surplus length of secondary optical fiber • The number of strands can be designed in two or three layers

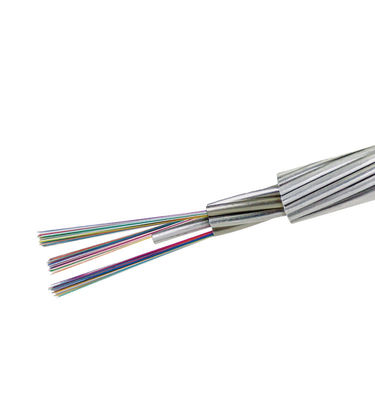

• Match with common ground wires500mm2 G556 G657A1 24 32 36 Core OPGW Fiber Optic Cable 1

Constructions and Performance

  Classification Material Value





Optical Fibre G652D/G655 etc. 2 - 144
Protection Tube Stainless steel tube 1.5 - 6mm
Stranded Line AS wire/AA wire/Al Rod 1.5 - 6mm
Max. Diameter 30mm
Max. Cross Section 500mm2






According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
Max. Tensile Strength (RTS ) (kN) 700
Max. Crush Strength(N/100mm) 3000
Max. Short Current Capacity (40℃ to 200℃)(kA2s) 2000
Min. Bending Radius (Dynamic) 20D
Min. Bending Radius (Static) 15D
Environment Performance Installation (℃) -10 to +50
Transportation and Operation (℃) -40 to +65

Optical Fibre Characteristics

  Attenuation Bandwidth Polarization Mode Dispersion













Individual Fibre Design Link Value (M=20, Q=0.01%)
G652D ≤0.35dB/km ≤0.21dB/km ≤0.20ps/ km ≤0.1ps/ km
G655 ≤0.22dB/km ≤0.20ps/ km ≤0.1ps/ km
50/125μm ≤3.0dB/km ≤1.0dB/km ≥ ≥
62.5/125μm ≤3.5dB/km ≤1.0dB/km ≥ ≥


Environmental Characteristics:

• Transport/storage temperature: -40℃ to +65℃


 Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.



1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
