Aerial Figure 8 Selp-supporting GYXTC8S GYTC8A GYXTC8Y GYTC8S Fiber Optic Cable With Steel Wire Messenger
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
Minimum Order Quantity : | 1KM | Packaging Details : | Wooden drum |
---|---|---|---|
Delivery Time : | 3-5 days | Payment Terms : | L/C, T/T, Western Union,Alipay |
Supply Ability : | 4500KM Per month |
Place of Origin: | China | Brand Name: | Jiqian |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | GYXTC8S |
Detail Information |
|||
Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
---|---|---|---|
Application: | Overhead | Jacket Sheath: | PE |
Certification: | ISO 9001 | Manufacturer: | Yes |
Fiber Range: | 2-12 Cores | Fiber Type: | Fiberhome/YOFC |
Highlight: | GYXTC8S Self Supporting Fiber Optic Cable,GYXTC8S overhead fiber optic cable,ISO 9001 Self Supporting Fiber Optic Cable |
Product Description
Mini fig 8 self-supporting fiber optic cable for overhead

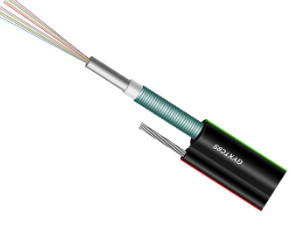

GYXTC8S Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.
Applications
Long distance and local area network(LAN) communication.
Aerial & conduit installation
Features
Central loose tube with jelly compound inside to protect the cladding fiber.
Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.
Good mechanical and temperature resistant performance.
The cross-section in fig8 structure.
Crush resistance and flexibility.
Light weight and small diameter, easy to installation and operation.
Cable Parametres
Fiber Count | 2-12 FO | |
Fiber Type | SM G652D or multimode | |
Messenger Wire | 1.6mm steel | |
Loose Tube | PBT (2.0mm) | |
Jacket | PE / LSZH | |
Outer Diameter | 3.2*6.3mm | |
Color | Black, customized | |

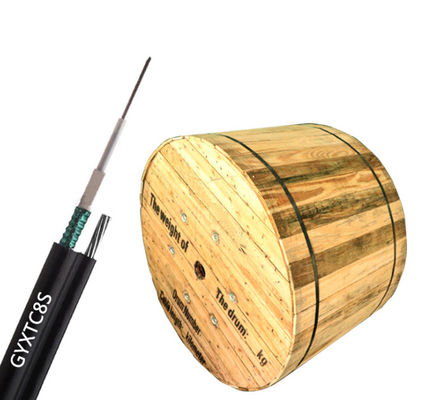

Length | 1-5km per wooden drum |
Optical fiber characteristics
Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 |
Condition | mm | 1310/1550 | 850/1300 | 850/1300 |
Attenuation | dB/km | ≤0.36/0.22 | ≤3.0/1.0 | ≤3.0/1.0 |
Cladding diameter | um | 125±1 | 125±1 | 125±1 |
Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
Coating diameter | um | 242±7 | 242±7 |
242±7 |
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
