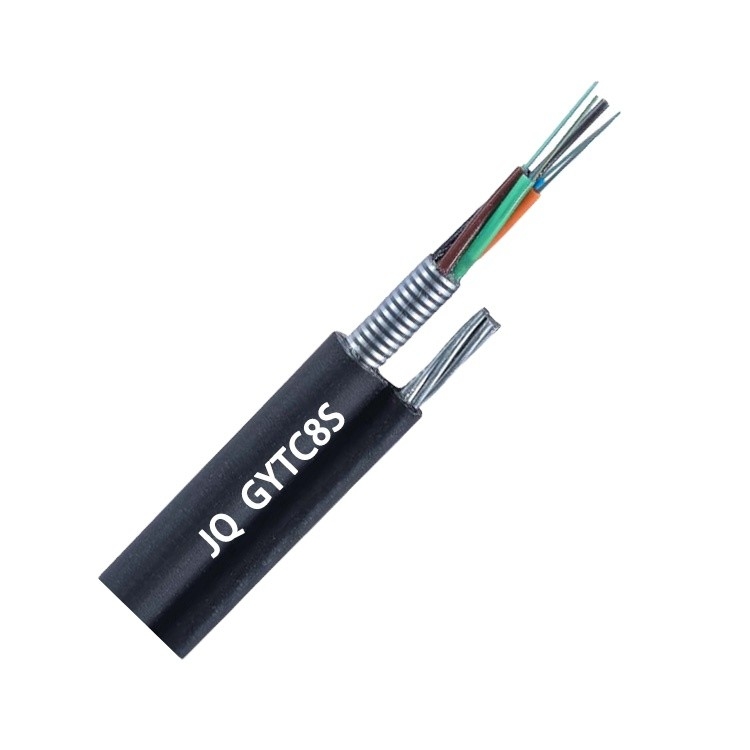

Name: GYTC8S Figure 8 Self-Supporting Aerial Fiber Optic Cable Outdoor Use 24 48 Core
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTC8S
Price: 480.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: GYTC8S- 24 48 Core

Fiber Type: G652D Single Mode Or As Your Request

Jacket: PE,MDPE,LSZH,PVC,HDPE

Central Strength Member: Steel Wire

Package: Wooden Drum/Customized

Length: 3000M/drum, Or As Required

Application: Telecom/network

Single Mode: G.652D

Highlight:

Figure 8 aerial fiber optic cable

Self-supporting outdoor fiber cable

24 core GYTC8S fiber optic

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: JQ/OEM/Customize

Certification: CE/ISO9001/RoHS/FCC

Model Number: GYTC8S

Payment & Shipping Terms

Packaging Details: Wooden Drum

Delivery Time: 2-5days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 8000 kilometers per month

Gallery

GYTC8S Figure 8 Self-Supporting Aerial Fiber Optic Cable Outdoor Use 24 48 Core

Product Description

GYTC8S Figure 8 Self-Supporting Aerial Fiber Optic Cable Outdoor Use 24 48 Core 0

GYTC8S Optical Cable Overview

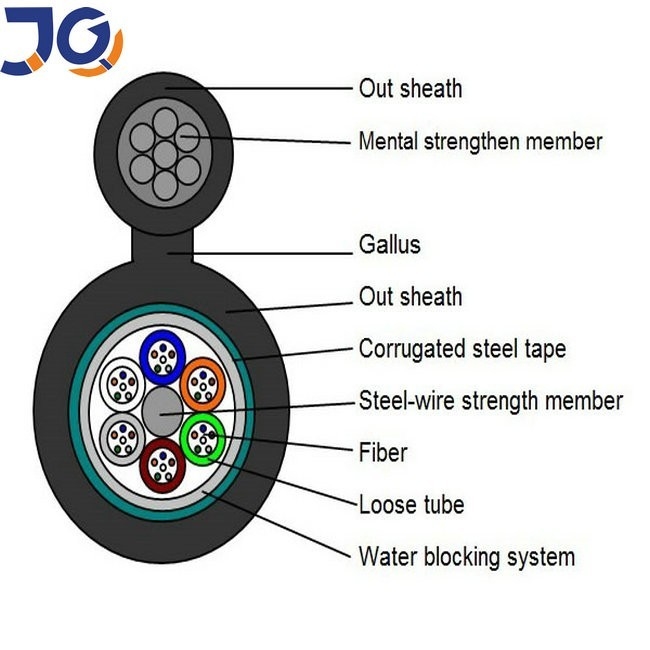

GYTC8S Outdoor Figure 8 Aerial Fiber Optic Cable with Steel Wire Armor

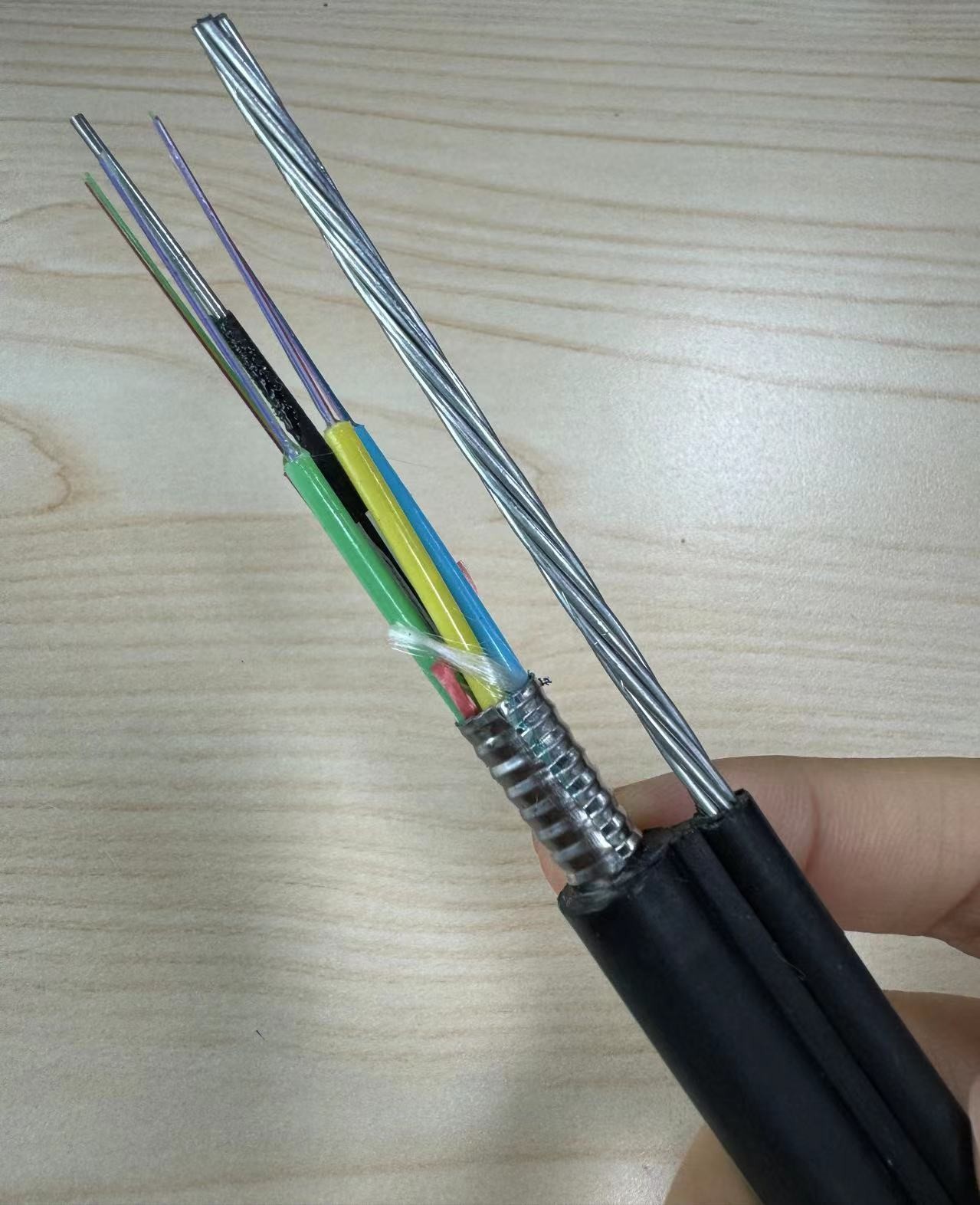

GYTC8S is a self-supporting outdoor aerial fiber optic cable with a stranded loose tube design for 1–144 fibers. It integrates a messenger wire, PE sheath, and corrugated steel tape armor for strong crush and impact resistance. The central steel wire provides high tensile strength, while the water-blocking materials ensure reliable fiber protection. Ideal for aerial installation in long-distance and LAN communication networks.

GYTC8S Figure 8 Self-Supporting Aerial Fiber Optic Cable Outdoor Use 24 48 Core 1

Application
Suitable for outdoor aerial installation, long-distance communication, LAN and access networks, junction systems, CATV, and computer network connections.

Product Parameters:

Model

fiber cores

OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYTC8S

12-288

7-20mm

70-300

3500/7000N

300/1000

15D/30D

Specification:

item	value
Model Number	GYTC8S
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Structure	Multi loose tube
Number of Conductors	≥ 10
Fiber count	2-144 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	Steel wire
Loose tube	Jelly filled
Loose tube	PBT
Jacket Sheath	PE
Color	Black or as your need
Package	Plywood Reel/customized
Application	Aerial,Overhead
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001

Optical Characteristics:

	G.655	50/125μm	62.5/125μm
G.652	G.655	50/125μm	62.5/125μm
Attenuation	'@850nm			≤3.0 dB/km
(+20℃)	'@1300nm			≤1.0 dB/km
	'@1310nm	≤0.34 dB/km	≤0.40 dB/km
	'@1550nm	≤0.21 dB/km	≤0.23 dB/km
	'@850nm			≥500 MHz·km
	'@1300nm			≥1000 MHz·km
Numerical Aperture				0.200±0.015NA

Certification:

GYTC8S Figure 8 Self-Supporting Aerial Fiber Optic Cable Outdoor Use 24 48 Core 2

FAQ

Who are we?
A manufacturer from Guangdong, China, established in 2017. Main markets: Africa, South America, Europe, the Middle East, and Asia.
How do we ensure quality?
Pre-production samples and final inspection before shipment.
What do we offer?
Fiber optic cables, FTTH drop cables, and indoor/outdoor communication cables.
What services do we provide?
Delivery: FOB, EXW
Payment: T/T, L/C, D/P, D/A, PayPal, Western Union, Cash
Currencies: USD, CNY
Languages: English, Chinese
What is the MOQ?
1 km
Can I get a sample?
Yes, free samples available (shipping cost only).
Do you accept OEM/ODM?
Yes, customized designs are supported.
What is the delivery time?
Usually 3–7 days after order confirmation.
