48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use
48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use
48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use 48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use 48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use 48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use
Contact Now

48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong，China Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001/RoHS/FCC Model Number: GYTC8S

Detail Information
Model Number: GYTC8S-48F Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Fiber Type: G652D Single Mode Or As Your Request
Color: Customized Jacket: PE,MDPE,LSZH,PVC
Central Strength Member: Steel Wire Armor: Steel Tape
Package: Wooden Drum/Customized Length: 3000M/drum, Or As Required
Application: Aerial,Overhead Oem: Available
Jacket Material: PVC Strength Member: Kevlar Yarn Steel Wires
Tape: Corrugated Steel Tape Jacket Sheath: PE/ HDPE/ MDPE
Number Of Conductor: 1 Or 2 Or 4 Or 6 Or 8 Or 12 Shetah: Single Sheath
Model: GYXTC8Y Armored: Double Aromred
Fiber Grade: A Factory: Yes
Model Name: Single Mode Optical Fiber Centre Strengthen Menber: CSM-FRP
Water Blocking Material: Filling Gel In Loose Tube Water Blocking System: Filling Compound
Core: 6-144 CORES
Highlight:

48 96 core figure 8 fiber cable

,

self-supporting overhead fiber optic cable

,

GYTC8S aerial figure 8 cable

Product Description

48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use 0

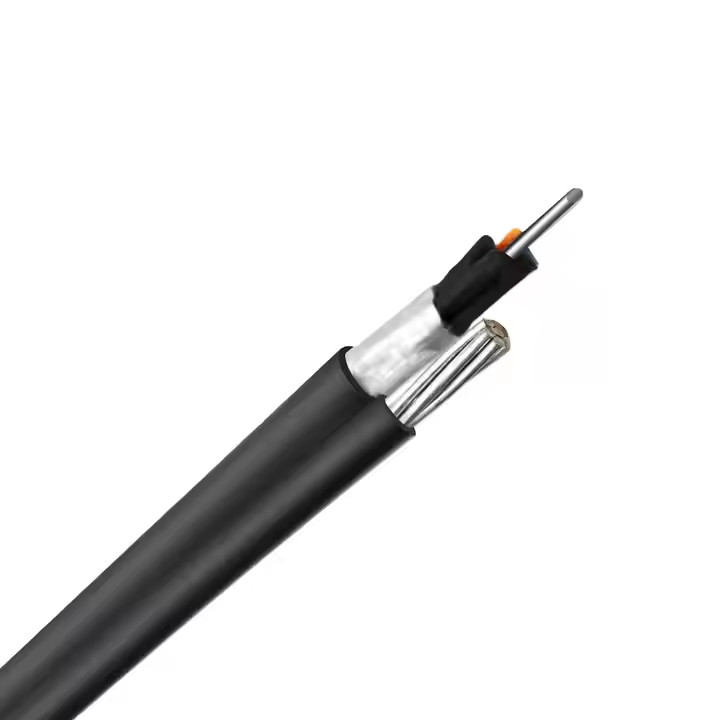

GYTC8S is a standard self-supporting outdoor aerial fiber optic cable with a stranded loose tube design, available in fiber counts from 1 to 144 cores. It consists of a messenger wire, PE sheath, and stranded loose tubes filled with optical fibers, plus armor protection. The corrugated steel tape armor with PE outer sheath provides excellent crush resistance and even protection against gunshot impacts. A central steel-wire strength member enhances tensile strength, surrounded by loose tubes and a water-blocking system for added durability. This cable is ideal for aerial installation in long-distance transmission and LAN communication networks.

48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use 1

Applications:

  • Suitable for outdoor aerial installation

  • Ideal for long-distance communication links

  • Applicable for LAN network connections

  • Subscriber access networks

  • Junction and backbone communication systems

  • CATV and computer network integration

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA

Company Profile

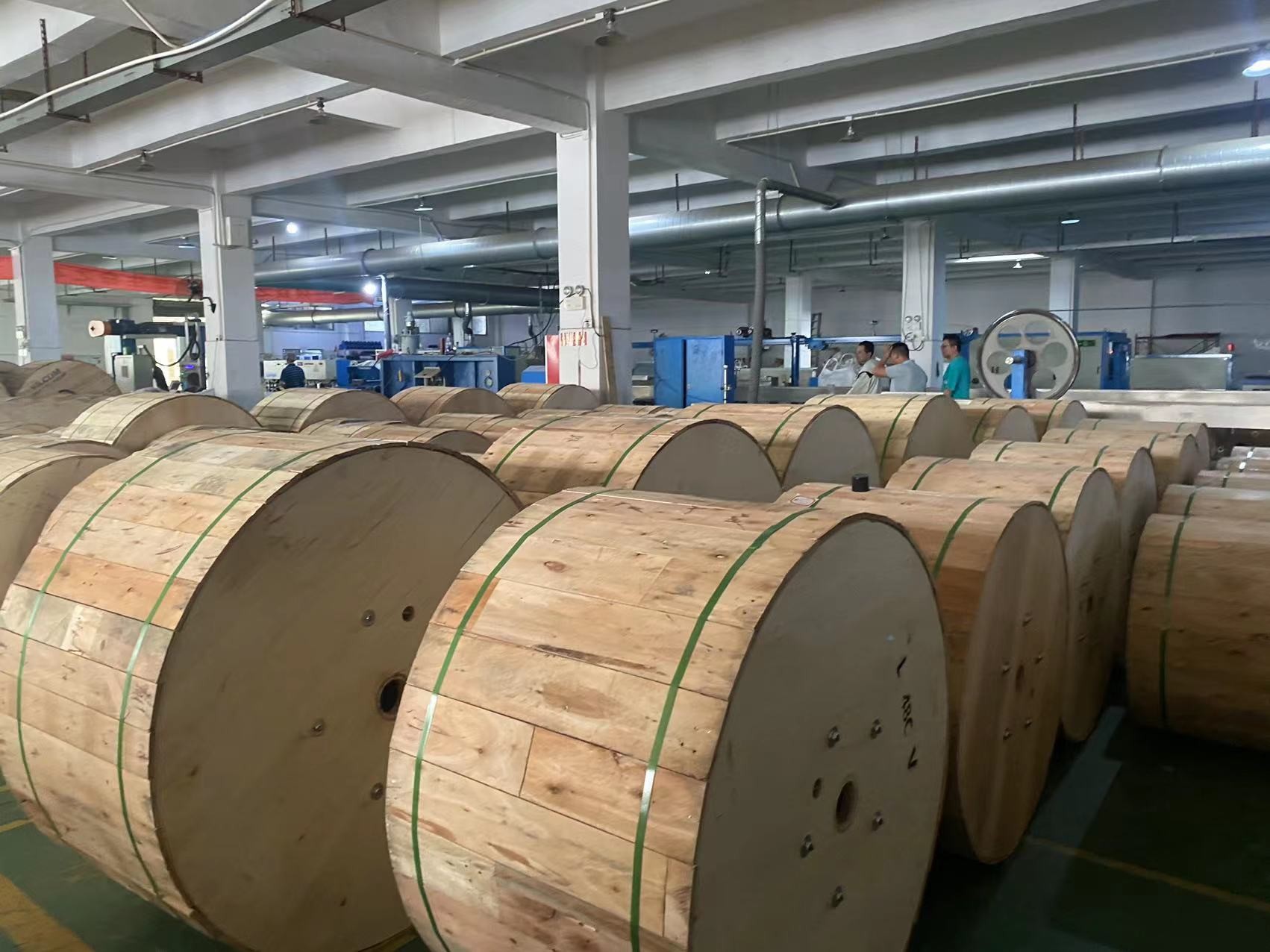

Guangzhou Jiqian Fiber Optic Cable Co., Ltd., located in Zengcheng District, Guangzhou, Guangdong, China, is a large-scale high-tech joint-stock enterprise integrating R&D, production, and sales. We specialize in manufacturing optical cables with 2 to 288 cores, offering a wide range of types and specifications.

Guided by the spirit of “integrity, speed, flexibility, efficiency, and innovation,” we are committed to excellence, customer satisfaction, and continuous improvement. We believe customer satisfaction is the key measure of our success.

We provide high-quality products at competitive prices with first-class service, and we warmly welcome partners worldwide to visit our factory and establish long-term cooperation.

48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use 248 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use 3

Certification:

48 96 Core Aerial Figure 8 Fiber Optic Cable | GYTC8S Self-Supporting Overhead Use 4

FAQ

  1. Who are we?
    We are a Guangdong, China-based manufacturer established in 2017. Our main markets include Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team consists of 11–50 staff members.

  2. How do we ensure quality?

  • Pre-production sample before mass production

  • Final inspection before shipment

  1. What products do we offer?
    Fiber Optic Cables, FTTH Drop Cables, Communication Cables, Outdoor/Indoor Fiber Cables

  2. What services do we provide?

  • Delivery Terms: FOB, EXW

  • Payment: USD, CNY; T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Languages: English, Chinese

  1. MOQ (Minimum Order Quantity)
    1 km

  2. Can I get a sample?
    Yes, free samples are available; you only cover the express freight.

  3. Do you accept OEM/ODM?
    Yes, we have our own engineering team to meet your requirements.

  4. What’s the delivery time?
    Generally 3–7 days after order confirmation, depending on quantity.
