GYFTC 8S GYXTC 8S Aerial Overhead Armored Fiber Optic Cable

5 km
MOQ
GYFTC 8S GYXTC 8S Aerial Overhead Armored Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D/G657A1
Fiber Count: 2-144 Cores
Length: 2 Km Or Customized
Model Number: GYTC8S/GYFTC8S/GYXTC8A
Color: Black
Messenger Wire: 1.0*7 Steel Stranded Wire
Structure: Figure 8 Cable
Type: APL Tape
Operating Temperature: -40 ~ +60 C
Application: Outdoor Aerial Application
Product Name: Figure 8 Self Support Fiber Optical Cable
Loose Tube Material: PBT
Cable Type: Figure 8
Oem: Available
Operating Temperature: -40°C To 85°C
Armoured: Steel Tape
Out Sheath: HDPE
Cable Drum: 2/3/4KM
Test Standards: IEC60794-1
Outer Sheath: PE/LSZH
Multi Mode: OM1 / OM2 / OM3 - 150 / OM3 - 300
Sheath: PE
Water Blcoking System: Filling Compound / Water Blocking Tape
Applications: Outdoor Aerial HTTX
Jacket Thickness: 1.8 ±0.20mm
Port: Shenzhen
Highlight:

GYFTC Overhead Armored Fiber Optic Cable

,

Aerial Overhead Armored Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYTC8A
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300km per days
Product Description

Figure 8 Fiber Optic Cable

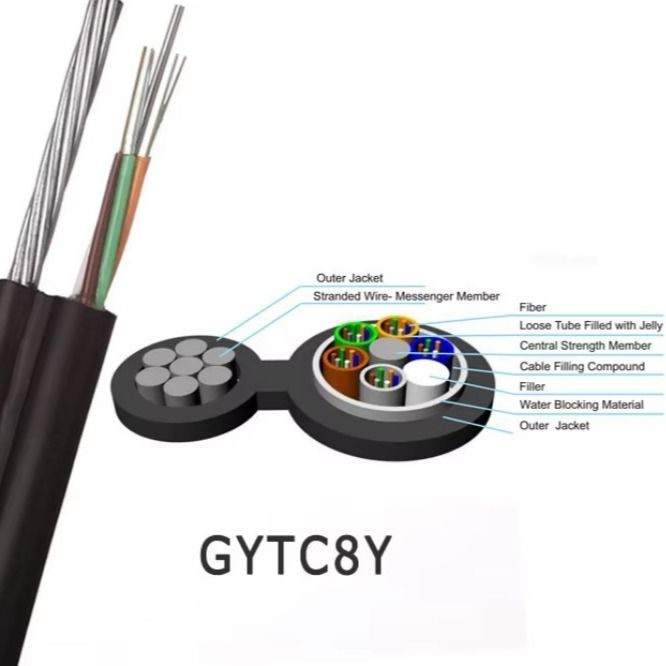

(Models: GYFTC8S, GYTC8S, GYXTC8S, GYXTC8Y) is a self-supporting outdoor cable designed for aerial applications. This cable features excellent moisture and crush resistance, making it ideal for harsh environments. The strength member is constructed from stranded metal wires, and the cable’s distinctive figure 8 shape is supported by a polyethylene (PE) sheath, ensuring durability and reliability in outdoor settings.







Features





  • Stranded Wire Reinforcement: Delivers high tensile strength to support self-suspension, reducing the need for additional hardware and lowering installation costs.

  • Robust Environmental Performance: Designed to withstand mechanical stress and extreme temperature variations.

  • Durable Loose Tube: Constructed with hydrolysis-resistant materials to ensure long-term structural stability.

  • Enhanced Fiber Protection: Specially formulated gel filling within the tube offers critical protection against environmental factors.

  • Comprehensive Water Blocking Design:

    • Central strength member made of steel wire or FRP

    • Fully filled loose tube for internal protection

    • 100% gel-filled core structure

    • PSP (Plastic Coated Steel Tape) layer improves moisture resistance





Optical Characteristics





Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber Model G.652D
Design(Strength Member+Tube&Filler) 1+5
CentralStrengthMember Material Steel Wire
Diameter(+0.05)mm 1.5
LooseTube Material PBT
Diameter(+0.06)mm 2.0
Thickness(+0.03)mm 0.32
TheMax.CoreNO./Tube 12
Filler Rope Material PE
Color White
Diameter(+0.06)mm 2.1
Strand Strength Member Material stranded steel wire
Type φ1.0mm x7
Armor layer Material Steel Tape
OuterSheath① Material PE
Thickness(+0.03)mm 1.
OuterSheath① Material MDPE
Thickness(40.03)mm 1.8
CableDiameter(土0.2)mm 9.0*16.0(nominal)
CableWeight(+10)kg/km 160(nominal)
Tensile /N (short term) 5000
Tensile /N (long term) 1500
Crush/N ( short term) 1000
Crush /N (short term) 300
Attenuation 1310nm 0.35dB/KM
1550nm 0.22dB/KM
Min.bendingradius Without Tension 10.0*Cableφ
Under Maximum Tension 20.0xCableφ





Picture Show

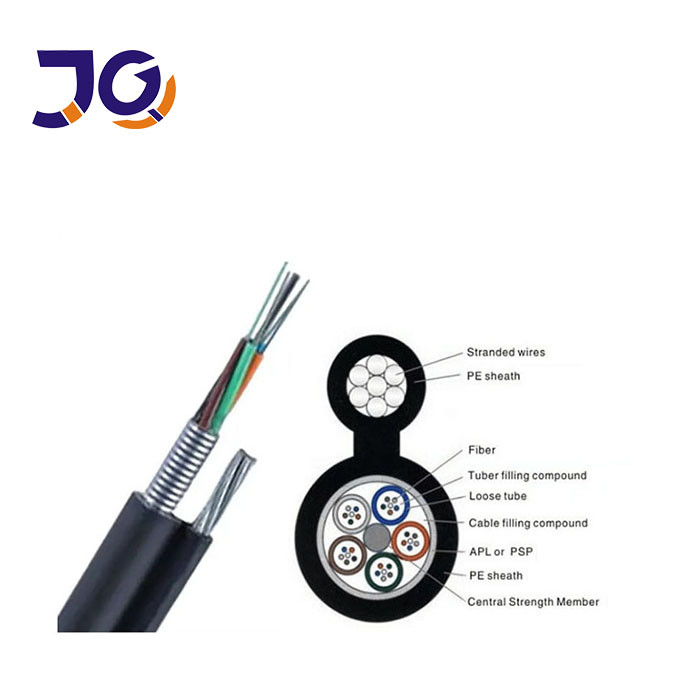

GYFTC 8S GYXTC 8S Aerial Overhead Armored Fiber Optic Cable 0

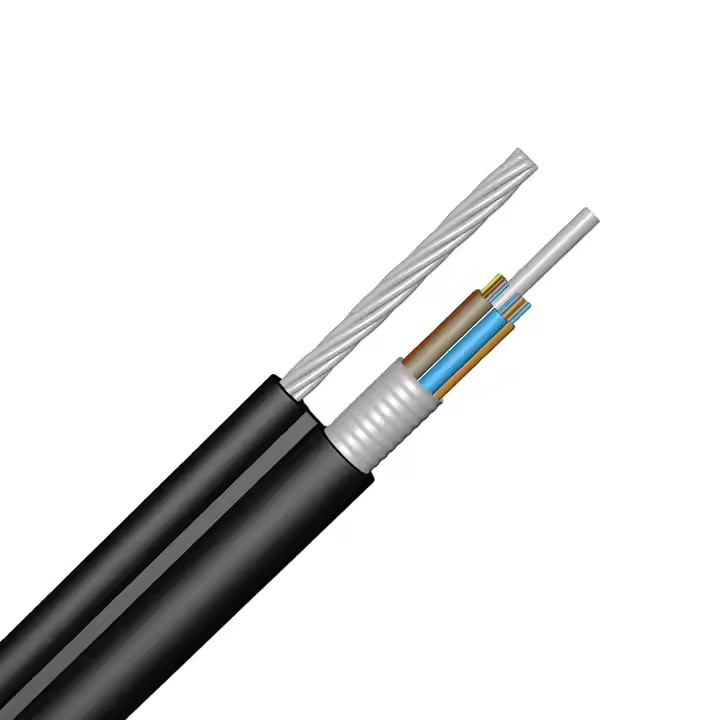

GYFTC 8S GYXTC 8S Aerial Overhead Armored Fiber Optic Cable 1



Packing

• Standard Cable Wooden Drum

• Standard reel length: 2/3km/reel, other length is also available







FAQ – Jiqian Fiber Optic Cable

  1. Are you a manufacturer or a trading company?
    Yes, we are a direct manufacturer with over 10 years of experience in fiber optic cable production.

  2. Do you accept small quantity orders?
    Absolutely. We welcome small orders and support new customer projects, understanding that long-term partnerships often start with small beginnings.

  3. What is your product warranty?
    We offer a 25-year warranty on all fiber optic cables.

  4. How fast can you deliver?
    Standard lead time is 3–5 working days, depending on order volume and specifications.

  5. What is your annual production capacity?

  • Indoor/Outdoor Fiber Optic Cable: 6,000,000 KM/year

  • FTTH/FTTX/FTTA Cable: 6,000,000 KM/year

  • Patch Cords & Pigtails: 12,400,000 pieces/year

  1. Do you offer customized products and branding?
    Yes, we provide full OEM & ODM services. Just share your specifications or drawings, and we’ll handle the rest.
