GYTC8S 48 Core Aerial Fiber Optic Cable with Steel Messenger

1 Kilometer
MOQ
GYTC8S 48 Core Aerial Fiber Optic Cable with Steel Messenger
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYTC8S-48F
Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China
Fiber Type: G652D Single Mode Or As Your Request
Color: Black
Jacket: PE,MDPE,LSZH,PVC
Central Strength Member: Steel Wire
Armor: Steel Tape
Package: Wooden Drum/Customized
Length: 3000M/drum, Or As Required
Application: Aerial,Overhead
Oem: Supported
Centre Strengthen Menber: CSM-FRP
Armored: Aluminium Tape Armored
Uv Resistance: Available
Standards: YD/T 769-2003 As Well As IEC 60794-1
Sample: Acceptable
Jacket Material: PVC/LSZH/PE
Cladding Diameter: 125.0±0.1
Amored: Armored Fiber Optic Cable
Fiber Diameter: 9/125μm
Lift Time: More Than 25years
Core: 2～144
Warranty: 25 Years
Water Blcoking System: Filling Compound / Water Blocking Tape
Highlight:

48 core aerial fiber cable

,

steel messenger fiber optic cable

,

figure 8 fiber optic cable
Basic Infomation
Place of Origin: Guangdong，China
Brand Name: JQ/OEM
Certification: CE/ISO9001
Model Number: GYTC8S
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

GYTC8S 48 Core Aerial Fiber Optic Cable with Steel Messenger 0

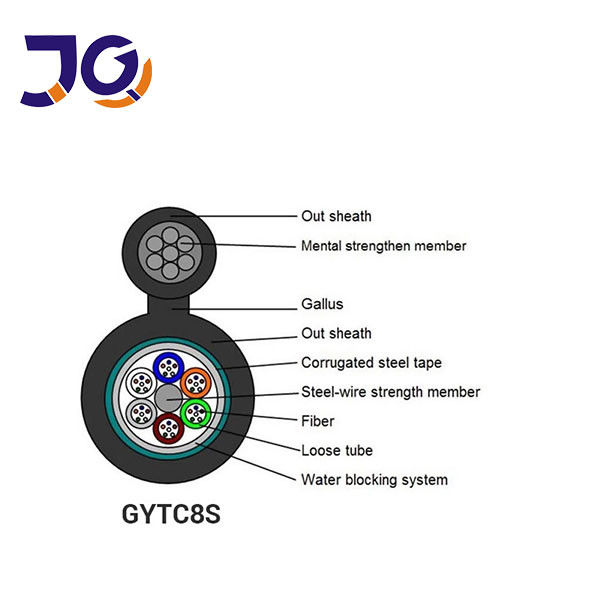

GYTC8S is a self-supporting aerial fiber optic cable designed for outdoor use. It supports 1 to 144 fibers with a stranded loose tube structure. The cable consists of a messenger wire, PE outer sheath, loose tubes filled with fiber and gel, and corrugated steel tape armor for crush and impact resistance. A central steel-wire strength member enhances tensile performance, surrounded by water-blocking materials. Ideal for aerial installations, GYTC8S is suitable for both long-distance transmission and LAN communication networks.

GYTC8S 48 Core Aerial Fiber Optic Cable with Steel Messenger 1

Application:
• Suitable for outdoor aerial installations
• Long-distance communication networks
• LAN and local communication systems
• Subscriber access networks
• Junction and relay systems
• CATV and computer network infrastructure

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA

Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is located in Zengcheng District, Guangzhou, China. As a large-scale high-tech joint-stock enterprise, we integrate R&D, manufacturing, and sales, specializing in fiber optic cables ranging from 2 to 288 cores.

Guided by the values of integrity, speed, flexibility, efficiency, and innovation, we pursue excellence and prioritize customer satisfaction as the core measure of our performance.

We are committed to providing high-quality products, competitive prices, and first-class service. We warmly welcome customers worldwide to visit our factory and establish long-term partnerships.

GYTC8S 48 Core Aerial Fiber Optic Cable with Steel Messenger 2GYTC8S 48 Core Aerial Fiber Optic Cable with Steel Messenger 3

Certification:

GYTC8S 48 Core Aerial Fiber Optic Cable with Steel Messenger 4

FAQ

  1. Who are you?
    We are a fiber optic cable manufacturer based in Guangdong, China, established in 2017. Our main markets include Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team has 11–50 staff members.

  2. How do you ensure product quality?

  • Pre-production samples before bulk production

  • Strict final inspection before shipment

  1. What products do you offer?
    We supply Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and Indoor/Outdoor Fiber Cables.

  2. What services are available?

  • Delivery Terms: FOB, EXW

  • Payment: USD, CNY; T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Languages: English and Chinese

  1. What is your minimum order quantity (MOQ)?

  • MOQ: 1 kilometer

  1. Can I get a sample?

  • Yes, we offer free samples. You only need to cover the express shipping cost.

  1. Do you support OEM/ODM?

  • Yes. As a manufacturer with our own engineering team, we can customize products based on your requirements.

  1. How long is the delivery time?

  • Typically 3–7 days after order confirmation, depending on the quantity.
