Multi-fiber Singlemode Gjfjv Tight Buffer Indoor Fiber Optic Distribution Cable
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1km | Packaging Details : | 2km/Wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, Western Union, T/T |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GJFJV |
|
Detail Information |
|||
| Name: | Indoor Fiber Optic Cable | Outer Sheath: | PVC,PE,LSZH |
|---|---|---|---|
| Cable Type: | Tight Buffer Fiber With Aramid Yarn | Place Of Origin: | Guangzhou China |
| Strength Material: | Aramid Yarn | Color: | Orange,Yellow,Blue |
| Core: | 2-48fiber | Fiber Type: | Multimode |
| Packing: | Wooden Drum | ||
| Highlight: | GJFJV Indoor Fiber Optic Cable,ODM Indoor Fiber Optic Cable,GJFJV multi mode fiber optic cable |
||
Product Description
ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV
Multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant)The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipment and accurately designed tools ensure a good performance of the product
Characteristics
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards
The mechanical characteristics of jacked meet the requirements of relevant standards
Soft,flexible,easy to lay and splice,and with big capacity data transmission
Meet various requirements of market and clients.
Optical Characteristics
|
|
|
G.652D |
50/125um |
625/125μm |
|
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
|
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHz-km |
2200MHz-km |
|
|
@1300nm |
|
21000MHz-km |
2600MHz-km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
Cable diameter
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV | ||||||||||
| Cable Count |
Outside Diameter |
Tight buffer Diameter |
Weight
|
Minimum allowable Tensile Strength(N) |
Minimum allowable (N/100mm) |
Minimum Bending |
Storage temperature |
|||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
|
4 |
5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
Application
1.Used in pigtails and patch cords
2.Used as interconnect lines of equipments.
3.Used in indoor and outdoor cabling, especially used as distribution cable
4.Used in optical connections in optical communication rooms and optical distribution frames
Product Detail

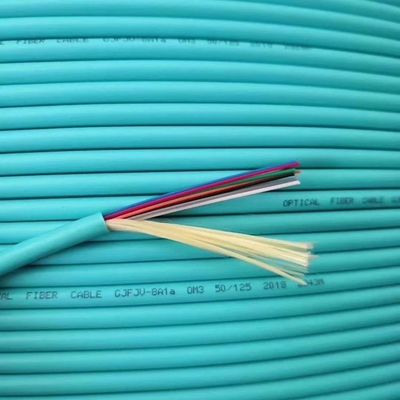

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Packing
2km or customized length export wooden drum
FAQ
1.Why choose US?
Professional manufacturer: Low MOQ, free samples are available.
Quality assurance:Stable high quality.
Customers solutions:Quick.
Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them,Any idea from you is available.
3.Can you print our Logo?
Sure, Your Logo can be printed on the boxes , or products.
4.What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5.What's the Payment?
We accept all payments , such as LC,TT,Western Union.Alipay.
