24 36 48 96 144core G655C G652D OPGW Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO

Detail Information

Model Number: OPGW-stranded Fiber Type: G657A1/A2/G655
Oem: Available Application: LAN Communication/Outdoor Communication
Number Of Conductors: 4 6 8 12 24 48 72 Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: Aluminium Wires
High Light:

144core G655C G652D opgw fiber optic cable

,

ISO 144core OPGW Fiber Optic Cable

,

ISO 144core optical ground wire cable

Product Description

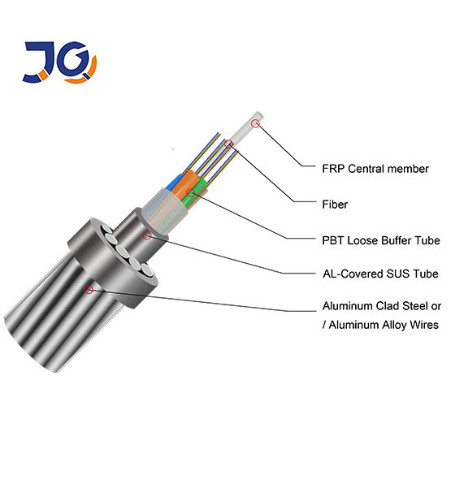

OPGW is a kind of overhead ground wire containing optical fiber, which has multiple functions such as overhead ground wire and optical communication. It is applicable to new aerial power route to satisfy the needs for big conductors and high voltage transmission, and is used to conduct large fault short circuit current to provide anti lightning protection.

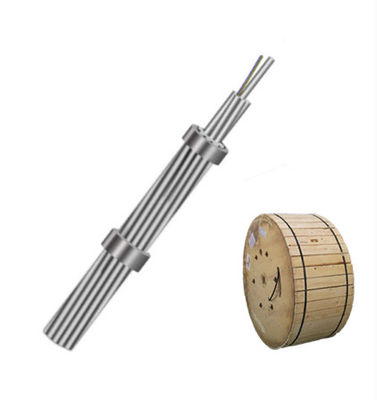

24 36 48 96 144core G655C G652D OPGW Fiber Optic Cable 0





Product Characteristics

• Large diameter, large fiber capacity

• The structure is stable and the reliability is high

• Excellent capability against side and outstanding short circuit current capacity

• The optimum stranding design can obtain the surplus length of secondary optical fiber • The number of strands can be designed in two or three layers

• Match with common ground wires



Dimension and Properties

Item Unit Data
OPGW / OPGW50mm2
Fiber / 24B1
Structure Outter ACS(LB20A) PCS/ mm 6/3.2
Center Stainess steel tube PCS/ mm 1/3.2
Section Cross ACS mm2 48.25
Section Cross mm2 48.25
Stranding direction / Right-hand
Diameter mm 9.6
Weight kg/km 344.0
Rate Tensile Strength(RTS) kN 58.2
MAT(40%RTS) kN 23.28
Everyday Stress(EDS)(25%RTS) kN 14.55
Modulus of Elasticity(E-Modulus) GPa 162.0
Thermal Elongation Coefficient 10-6/℃ 13.0
20℃ DC Resistance Ω/km 1.78
0.25 sec Short Time Current kA 6.9
Short Time Current Capacity kA2.S 12
Short circuit current allowed temperature range 40-200
Minimum bend radius mm 20D
Pull weight ratio km 17.2



The fibres shall be marked by a coloured coating with 12 different colours according to EIA/TIA 598:



Environmental Characteristics

• Transport/storage temperature: -40℃ to +65℃



COMPANY PROFILE
 Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.



FAQ

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
