Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | Normally 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 4500km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | GYFTY |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|
| Number Of Conductors: | ≥ 10 | Strength Member: | FRP |
| Laying Mode: | Duct/Aerial | Storage/operating Temperature:: | -40 To +70 °C |
| Application: | Duct/Aerial | OEM: | Yes |
| Manufacturer: | Yes | Structure: | Stranded Loose Tube |
| Package: | Wooden Drum | ||
| High Light: | ROHS Fiber Optic Cable,GYFTY Fiber Optic Cable,Aerial Outdoor Fiber Optic Cable |
||
Product Description

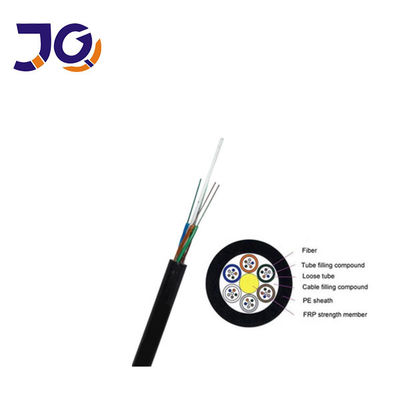

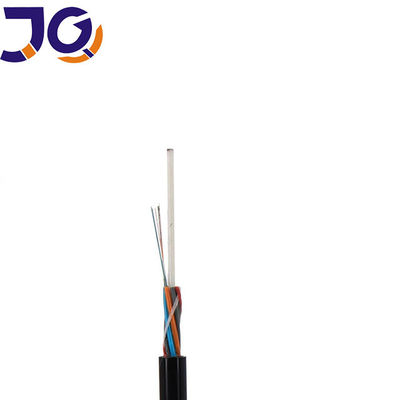

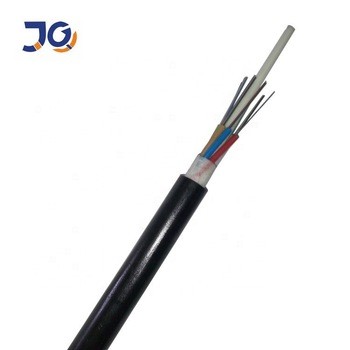

Stranded Loose Tube 12 Core 24 Core Non-Metal Fiber Optic Cable GYFTY
The fibers, 250μm, are positioned in a loose tube which is made of a high modulus plastic. All the tubes are filled with a water- resistent filling compound. We use the FRP(fiber reinforced plastic) as the strength member. The optical cable have a very good mechanical and temperature performance. You don't need to worry about the crush resistance and flexibility during the storage and operating.
Features
Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
All Dielectric structure.
UV and moisture-resistant design.
Applications
Backbones
Installed in ducts,Aerial.
Optical Charateristics
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
| 122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
| 146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
| >144 | Available upon customer request | |||||||
Packing:
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
