Good Quality SC/UPC-SC/APC Single-mode Simplex Duplex 2.0 3.0MM LSZH Optical Fiber Patch Cord
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | 2km/Wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, Western Union, T/T |
| Supply Ability : | 30km per day |
| Place of Origin: | Guangzhou China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GJFJV |
|
Detail Information |
|||
| Name: | Indoor Fiber Optic Cable | Outer Sheath: | PVC,PE,LSZH |
|---|---|---|---|
| Cable Type: | Tight Buffer Fiber With Aramid Yarn | Place Of Origin: | Guangzhou China |
| Strength Material: | Aramid Yarn | Color: | Orange,Yellow,Blue |
| Core: | 2-48fiber | Fiber Type: | Multimode |
| Packing: | Wooden Drum | ||
Product Description
2.0mm 3.0mm Single Mode MM om3 om4 om5 Simplex GJFJV 1core 0.9mm tight buffer Indoor Fiber Optic Cable for Fiber Patch cord
Product Description
Multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant)The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipment and accurately designed tools ensure a good performance of the product
Characteristics
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards
The mechanical characteristics of jacked meet the requirements of relevant standards
Soft,flexible,easy to lay and splice,and with big capacity data transmission
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV | ||||||||||
| Cable Count |
Outside Diameter |
Tight buffer Diameter |
Weight
|
Minimum allowable Tensile Strength(N) |
Minimum allowable (N/100mm) |
Minimum Bending |
Storage temperature |
|||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
|
4 |
5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |

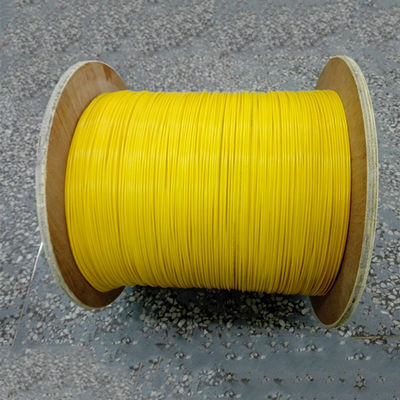

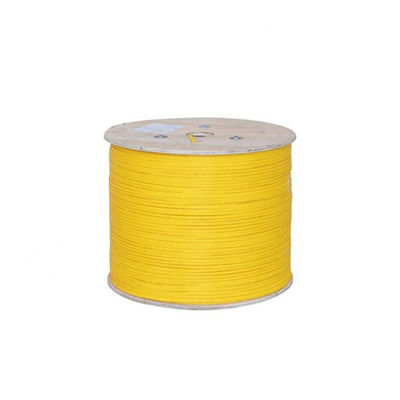

Product Detail
Package &Shipping
| Cable Diameter (mm) | Drum Length(KM) | Drum/Carton size (cm) | Gross weight/CTN (kgs) | KMs/20ft | Package Picture |
| 1.6 | 5 | 41*41*36 | 15 | 2000 |   |
| 1.8 | 5 | 41*41*36 | 18 | 2000 | |
| 2.0 | 5 | 41*41*36 | 20 | 2000 | |
| 2.4 | 4 | 41*41*36 | 22 | 1600 | |
| 2.8 | 2.5 | 41*41*36 | 20 | 1000 | |
| 3.0 | 2.5 | 41*41*36 | 20 | 1000 | |
| 1.6 x3.3 | 2.5 | 41*41*36 | 15 | 1000 | |
| 1.8x3.7 | 2.5 | 41*41*36 | 20 | 1000 | |
| 2.0x4.1 | 2.5 | 41*41*36 | 21 | 1000 | |
| 2.4x4.9 | 2 | 41*41*36 | 22 | 800 | |
| 2.8x5.6 | 1.5 | 41*41*36 | 22 | 600 | |
| 3.0x6.1 | 1.3 | 41*41*36 | 21 | 520 | |
| 3.8x2.4 | 2 | 41*41*36 | 22 | 800 | |
| 4.6x2.8 | 2 | 52*52*36 | 30 | 500 | |
| 5.0x3.0 | 2 | 52*52*36 | 38 | 500 | |
| 5.8x3.4 | 1 | 52*52*36 | 25 | 250 | |
| 7.0x4.0 | 1 | 52*52*36 | 28 | 250 |
Application
1.Used in pigtails and patch cords
2.Used as interconnect lines of equipments.
3.Used in indoor and outdoor cabling, especially used as distribution cable
4.Used in optical connections in optical communication rooms and optical distribution frames
FAQ
1.Why choose US?
Professional manufacturer: Low MOQ, free samples are available.
Quality assurance:Stable high quality.
Customers solutions:Quick.
Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them,Any idea from you is available.
3.Can you print our Logo?
Sure, Your Logo can be printed on the boxes , or products.
4.What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5.What's the Payment?
We accept all payments , such as LC,TT,Western Union.Alipay.
