Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
Supply Ability : | 100km per 2 day |
Place of Origin: | CHINA | Brand Name: | jiqian |
---|---|---|---|
Certification: | ISO | Model Number: | GYTA |
Detail Information |
|||
Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
---|---|---|---|
Application: | Aerial/duct | Number Of Conductors: | 4 6 12 24 48 |
Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
Central Strength Member: | Aluminium Tape | ||
Highlight: | G652D Outdoor Fiber Optic Cable,Armoured Outdoor Fiber Optic Cable |
Product Description
The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. The center of the cable core is a metal reinforced core, Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable
Characteristics:
1. The precise control of the excess length of the optical fiber ensures that the optical cable has good tensile properties and temperature characteristics.
2. The loose tube material itself has good water resistance and high strength. The tube is filled with special grease to provide critical protection for the optical fiber. Good pressure resistance and flexibility.
3. The PE sheath has good resistance to ultraviolet radiation and environmental stress cracking resistance.
4. Use the following measures to ensure the waterproof performance of the optical cable:
a) Single steel wire center reinforcement;
b) Fill the loose tube with special fiber paste;
c) 100% cable core filling;

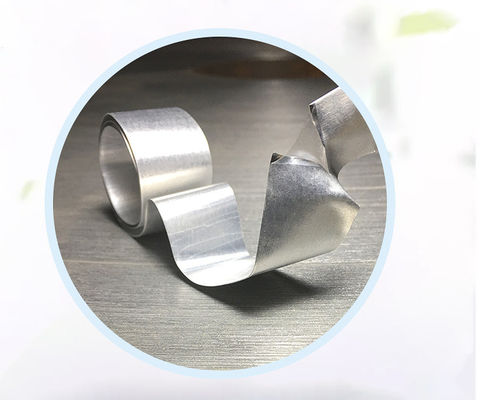

d) GYTA double-sided plastic coated aluminum tape (APL) improves the moisture resistance of optical cables;
e) Good water-blocking material prevents longitudinal water seepage of the optical cable.
Optical Characteristics:
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
||
Attenuation
(+20℃) |
'@850nm
|
≤3.0 dB/km
|
≤3.0 dB/km
|
||
'@1300nm
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|||
'@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
|||
'@1550nm
|
≤0.22 dB/km
|
≤0.23 dB/km
|
|||
Bandwidth
(Class A) |
'@850nm
|
≥500 MHz·km
|
≥200 MHz·km
|
||
'@1300nm
|
≥1000 MHz·km
|
≥600 MHz·km
|
|||
Numerical Aperture
|
0.200±0.015NA
|
0.275±0.015NA
|
|||
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
Tensile Strength | Long Term (N) | 1000 |
Short Term (N) | 3000 | |
Crush Resistance | Long Term (N) | 1000 |
Short Term (N) | 3000 | |
Bending Radius | Static (mm) | 10D |
Dynamic (mm) | 20D |
