Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS
Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS
Contact Now

Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per day
Place of Origin: Guangdong China Brand Name: JQ/customeried
Certification: ISO9001,ROHS,CE Model Number: GYTA/GYTS

Detail Information
Fiber Type: G652D/ OM1/OM2/OM3 OEM: Acceptable
Application: Aerial/duct/underground Number Of Conductors: 4-144 Cores
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: Steel Wires Jacket Material: PE
Jacket Colour: Black
Highlight:

G652D Armoured Fibre Optic Cable

,

Single Mode Armoured Fibre Optic Cable

,

GYTS Armoured Fibre Optic Cable

Product Description

singlemode G652D armoured Fibre optic cable GYTA/GYTS

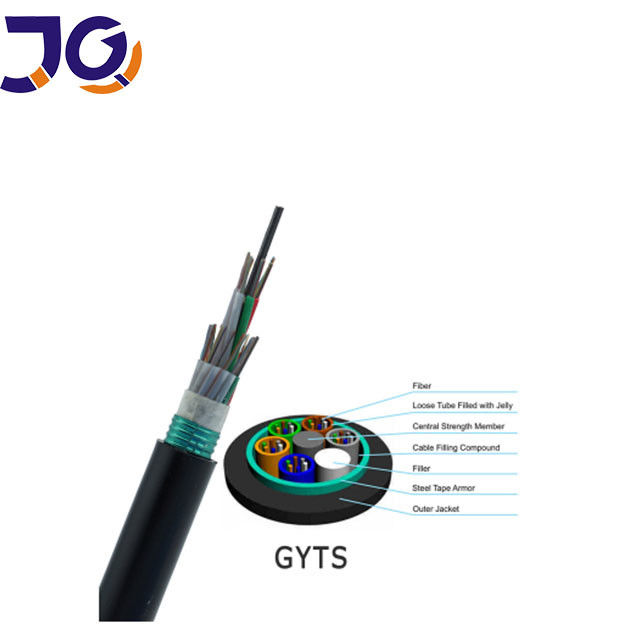

GYTA/TS is a tapical optic fiber cable , which is widely used in earial and underground

for long distance network communication.The gross strcture is as follow:

Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS 0



Characteristics:

3. The PE sheath has good resistance to ultraviolet radiation and environmental stress

cracking resistance.

4. Use the following measures to ensure the waterproof performance of the optical cable:

a) Single steel wire center reinforcement;

b) Fill the loose tube with special fiber paste;

c) 100% cable core filling;

d) GYTA double-sided plastic coated aluminum tape (APL) improves the moisture resistance

of optical cables;

e) Good water-blocking material prevents longitudinal water seepage of the optical cable.

Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS 1

Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS 2



Optical Characteristics

G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
'@850nm

≤3.0 dB/km
≤3.0 dB/km
'@1300nm

≤1.0 dB/km
≤1.0 dB/km
'@1310nm
≤0.36 dB/km
≤0.40 dB/km

'@1550nm
≤0.22 dB/km
≤0.23 dB/km

Bandwidth
(Class A)
'@850nm

≥500 MHz·km
≥200 MHz·km
'@1300nm

≥1000 MHz·km
≥600 MHz·km
Numerical Aperture

0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm






Tensile Strength Long Term (N) 1000
Short Term (N) 3000
Crush Resistance Long Term (N) 1000
Short Term (N) 3000
Bending Radius Static (mm) 10D
Dynamic (mm) 20D







Fiber Count



Dia
(mm)



Weight
(kg/km)

Allowable Tensile Strength(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2-30

9.5

86









≥1500










≥600









≥1000










≥300


32-60

10.2

99
62-72
10.9
123
74-84
12.2
148
86-96
12.2
148
98-120
14.0
183
122-144
14.5
220
146-216
16.1
229
218-300
18.5
290



Customers choose
Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS 3

Related products
Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS 4



FAQ:

Single Mode G652D Armoured Fibre Optic Cable GYTA GYTS 5
1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
