Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYTA 6 core

Detail Information

Fiber Type: G652D Oem: Available
Application: Duct Number Of Conductors: 4
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: Aluminium Wires
High Light:

GYTA Duct Outdoor Fiber Optic Cable

,

Underground Outdoor Fiber Optic Cable

,

250µm Outdoor Fiber Optic Cable

Product Description

GYTA In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

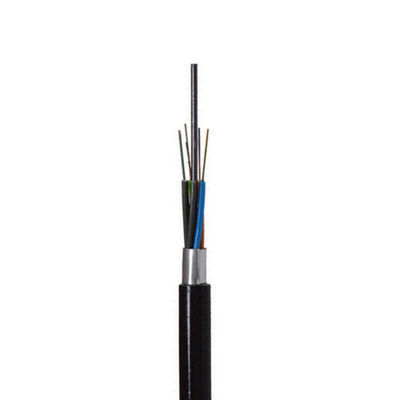

Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape 0



Characteristics:



· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility





Optical Characteristics



G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
'@850nm





≤3.0 dB/km
≤3.0 dB/km
'@1300nm





≤1.0 dB/km
≤1.0 dB/km
'@1310nm
≤0.36 dB/km
≤0.40 dB/km





'@1550nm
≤0.22 dB/km
≤0.23 dB/km





Bandwidth
(Class A)
'@850nm





≥500 MHz·km
≥200 MHz·km
'@1300nm





≥1000 MHz·km
≥600 MHz·km
Numerical Aperture





0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm









Tensile Strength

Long Term (N)

1000

Short Term (N)

3000

Crush Resistance

Long Term (N)

1000

Short Term (N)

3000

Bending Radius

Static (mm)

10D

Dynamic (mm)

20D






Fiber Count



Dia
(mm)



Weight
(kg/km)

Allowable Tensile Strength(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2-30

9.5

86









≥1500










≥600









≥1000










≥300


32-60

10.2

99
62-72
10.9
123
74-84
12.2
148
86-96
12.2
148
98-120
14.0
183
122-144
14.5
220
146-216
16.1
229
218-300
18.5
290

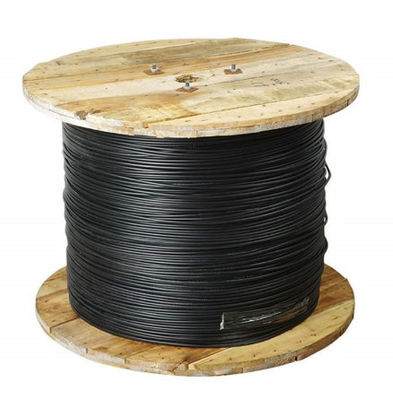

Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape 1




FAQ:

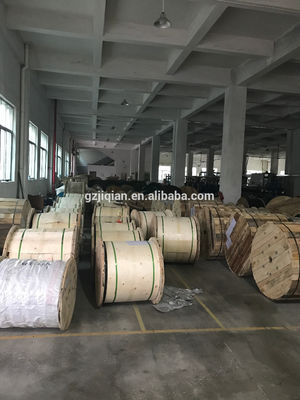

Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape 2
1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
